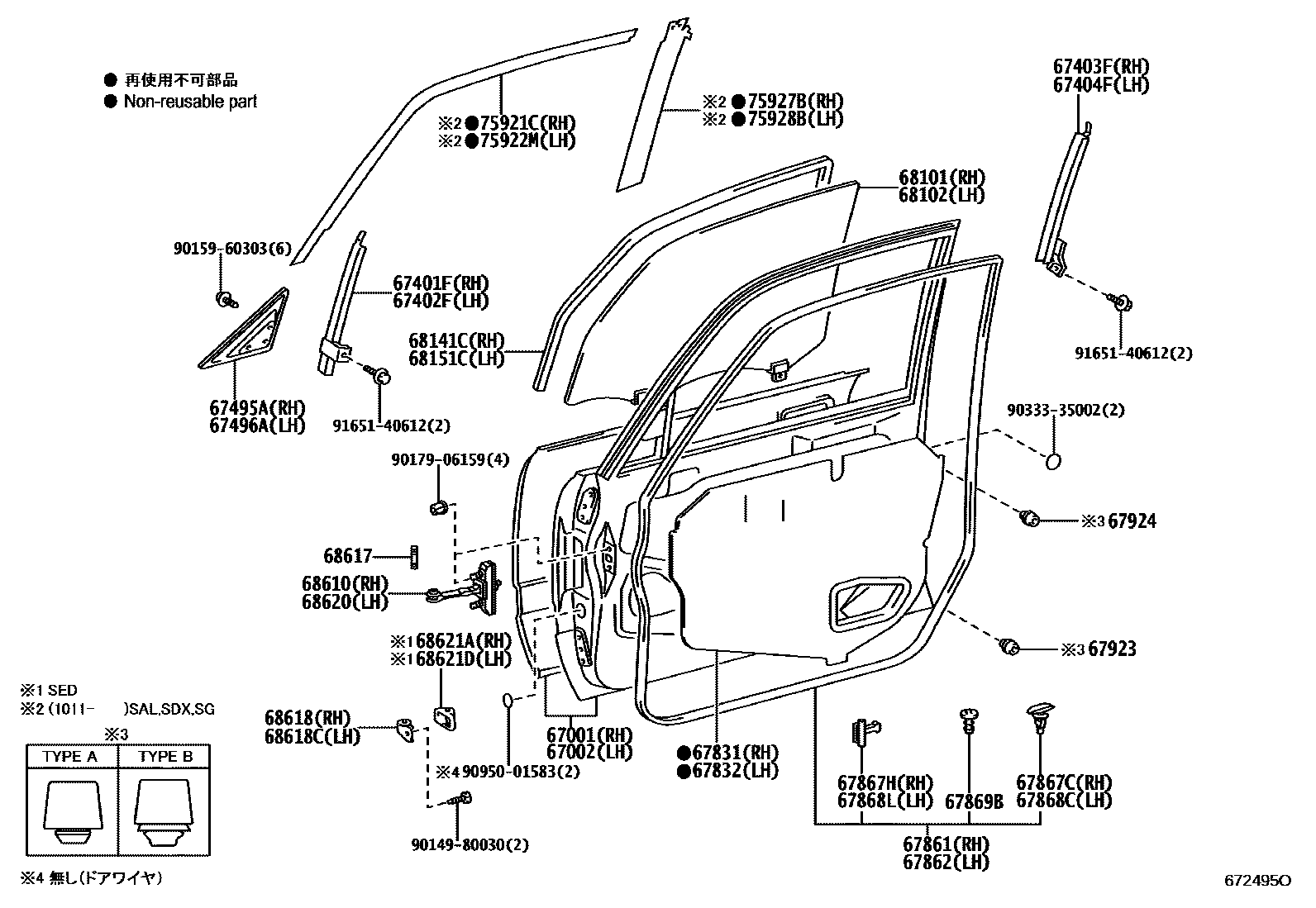

FRONT DOOR PANEL & GLASS

0001 1������� 0002 1������ 0003 1������ 0004 1������� 0005 1������� 0006 1������� 0010 1�������

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-43010iGXS10,YXS10..DLX,SDX199512-199609

main67001-43011iGXS10,YXS10..DLX,SDX199609-200001

main67001-43012iGXS10,YXS10..DLX,SDX200001-200108

main67001-43013iYXS10..4HC..DLX200709-200808

main67001-43020iYXS10..STD199512-199609

main67001-43021iYXS10..STD199609-200001

main67001-43022iYXS10..STD200001-200108

main67001-43023iYXS10..4HC..STD200709-200808

main67001-43030iLXS11,SXS11,YXS11..DLX,SG199512-199609

main67001-43031iLXS11,SXS11,YXS11..DLX,SG199609-200001

main67001-43032iSXS11,YXS11..DLX,SG200001-200104

main67001-43033iSXS13,YXS11..DLX,SG200108-200209

main67001-43034iTSS11,13..DLX,SG200709

main67001-43040iLXS11,YXS11..STD199512-199609

main67001-43041iLXS11,YXS11..STD199609-200001

main67001-43042iYXS11..STD200001-200104

main67001-43043iYXS11..STD200108-200209

main67001-43044iTSS11..STD200808

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-43010iGXS10,YXS10..DLX,SDX199512-199609

main67002-43011iGXS10,YXS10..DLX,SDX199609-200001

main67002-43012iYXS10..4HC..DLX200709-200808

main67002-43020iYXS10..STD199512-199609

main67002-43021iYXS10..STD199609-200001

main67002-43022iYXS10..4HC..STD200108-200706

main67002-43030iLXS11,SXS11,YXS11..DLX,SG199512-199609

main67002-43031iLXS11,SXS11,YXS11..DLX,SG199609-200001

main67002-43032iSXS11,YXS11..DLX,SG;YXS10..(4H,4HC)..DLX200001-200104

main67002-43033iSXS11,YXS11..DLX,SG; YXS10..(4H,4HC)..DLX200104-200108

main67002-43040iLXS11,YXS11..STD199512-199609

main67002-43041iLXS11,YXS11..STD199609-200001

main67002-43042iYXS11..STD;YXS10..(4H,4HC)..STD200001-200104

main67002-43043iYXS10..4H..STD; YXS11..STD200108-200808

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-43010iGXS10,LXS11,SXS11,YXS1#199512-199703

main67401-43011iYXS10..4H;YXS10..SED..4HC; YXS10..CRW..4HC200108-200706

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-43010iGXS10,LXS11,SXS11,YXS1#199512-199703

main67402-43011iGXS10,LXS11,SXS11,YXS1#199703-200108

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-43010iGXS10,LXS11,SXS11,YXS1#199512-200108

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-43010iTSS1#; YXS10..4HC200709

67495ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH

main67495-43010iYXS10..4H;YXS10..SED..4HC; YXS10..CRW..4HC200108-200706

67496ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH

main67496-43010iTSS1#; YXS10..4HC200709

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-30370iGXS12,YXS10..SDX200108-200109

main67831-43010iYXS10..4HC200709

main67831-43020iLXS11,SXS11,YXS11199512-200108

main67831-43030iTSS10..SED200808

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-30230iGXS12,YXS10..SDX200108-200109

main67832-43010iYXS10..4H; YXS10..CRW..4HC200108-200706

main67832-43020iYXS10..4H; YXS10..CRW..4HC200108-200706

main67832-43030iYXS10..SED..4HC200108-200706

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-43010iGXS10,YXS10199512-199602

main67861-43011iGXS10,YXS10199602-200108

main67861-43012iYXS10..4HC200709

main67861-43020iLXS11,YXS11199512-199602

main67861-43021iLXS11,SXS11,YXS11199602-200108

main67861-43022iSXS13200108-200707

main67861-43030iTSS10201503-201509

main67861-43031iTSS10201510

main67861-43040iTSS11,13201503-201509

main67861-43041iTSS11,13201510

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-43010iGXS10,YXS10199512-199602

main67862-43011iGXS10,YXS10199602-200108

main67862-43012iGXS12200108-200708

main67862-43020iLXS11,YXS11199512-199602

main67862-43021iLXS11,SXS11,YXS11199602-200001

main67862-43022iYXS10..CRW..4FC200706

main67862-43030iTSS10201503-201509

main67862-43031iTSS10201510

main67862-43040iTSS10..CRW; TSS11,13201503-201509

main67862-43041iTSS10..CRW; TSS11,13201510

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×17iGXS12200108-200708

67867HRETAINER, DOOR WEATHERSTRIP, RH

main67867-30070iYXS10..4H;YXS10..SED..4HC; YXS10..CRW..4HC200108-200706

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×16iTSS10; TSS10..CRW200808

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-30070iGXS10200108-200210

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-30020×2iGXS12200108-200708

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-43010×2iGXS10,YXS10199512-200108

main67924-43010×2iSXS13200108-200707

main90541-09069×2iTSS11,13201409

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-43010×2iGXS10,YXS10; LXS11,SXS11,YXS11199512-200108

main90541-09069×2iTSS1#201409

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-43010iGXS10,YXS10199512-199609

main68101-43011iYXS10..CRW200108-200407

main68101-43020iLXS11,SXS11,YXS11199512-199609

main68101-43021iLXS11,SXS11,YXS11199609-200108

main68101-43030iYXS10..4H; YXS10..CRW..4HC200108-200706

main68101-43040iYXS11200108

main68101-43050iGXS12,YXS10..SDX200108-200407

main68101-43060iGXS10200108-200210

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-43010iGXS10,YXS10199512-199609

main68102-43011iYXS10..CRW200108-200407

main68102-43020iLXS11,SXS11,YXS11199512-199609

main68102-43021iSXS13; YXS11;YXS10..CRW..(4H,4HC)200108-200407

main68102-43030iTSS10..CRW200808

main68102-43040iYXS10..4H; YXS10..CRW..4HC200108-200706

main68102-43050iGXS12,YXS10..SDX200108-200407

main68102-43060iYXS10..SED..4HC200108-200706

68141CRUN, FRONT DOOR GLASS, RH

main68141-43010iGXS10200108-200210

main68141-43020iLXS11,SXS11,YXS11199512-200108

68151CRUN, FRONT DOOR GLASS, LH

main68151-43010iTSS10200808

main68151-43020iYXS10..4H; YXS10..CRW..4HC200108-200706

68610CHECK ASSY, FRONT DOOR

main68610-30140iYXS10..CRW..(4FC,4H);GXS1#,SXS13,YXS1#..KYO,SED,TAX; YXS10..CRW..4HC200108-200206

main68610-43020iGBS12,YXS1#..4FC,5F200206

68617PIN, FRONT DOOR CHECK

main68617-50010×2iTSS1#; YXS10..4HC200709

68618BRACKET, FRONT DOOR CHECK ARM, RH

main68618-50010iGXS10200108-200210

68618CBRACKET, FRONT DOOR CHECK ARM, LH

main68618-50010iGXS10200108-200210

68620CHECK ASSY, FRONT DOOR, LH

main68610-30140iGXS10,LXS11,SXS11,YXS1#199512-200108

main68610-43020iTSS1#; YXS10..4HC200709

main68620-43010iYXS10..4HC199802-200108

68621ACOVER, FRONT DOOR CHECK, RH

main68621-50030iYXS10..SED..4HC200108-200706

68621DCOVER, FRONT DOOR CHECK, LH

main68621-50030iGXS10200108-200210

75921CTAPE, BLACK OUT, NO.1 RH

main75921-43010iTSS10..SED201011

main75921-43020iTSS11..SG201011

75922MTAPE, BLACK OUT, NO.1 LH

main75922-43010iTSS10..SED201011

main75922-43020iTSS11..SG201011

75927BTAPE, BLACK OUT, NO.4 RH

main75927-43010iTSS10,11..SAL,SDX,SG201011

75928BTAPE, BLACK OUT, NO.4 LH

main75928-43010iTSS10,11..SAL,SDX,SG201011

9014980030

main90149-80030

9015960303

main90159-60303

9017906159

main90179-06159

9033335002

main90333-35002

9095001583

main90950-01583

9165140612

main91651-40612

40 parts on this diagram · 7 diagrams in section
