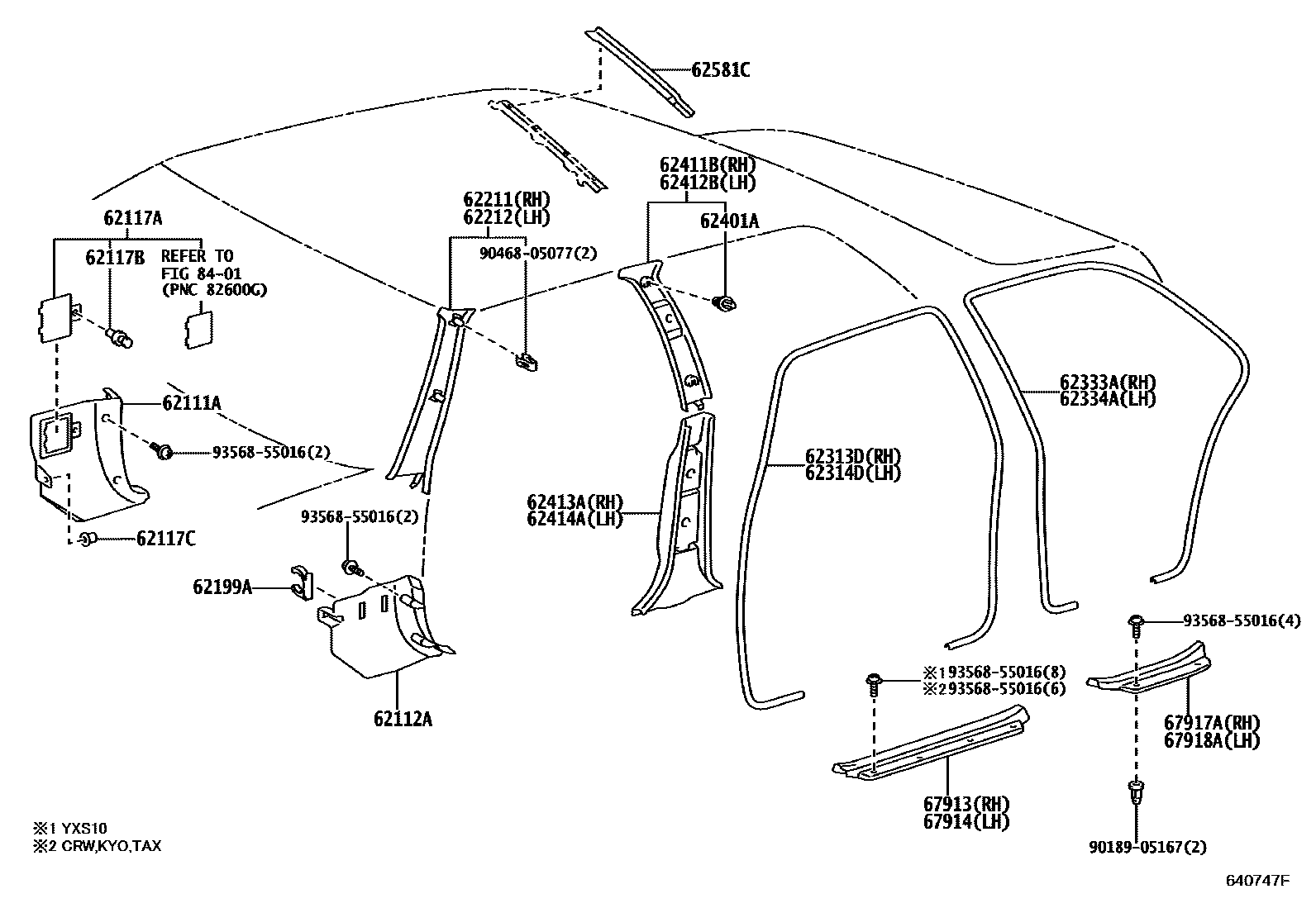

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0003 1

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-43010-B0iGXS10199512-200102

main62101-43020-B0iYXS10..SAL200210-200803

SHADOW GRAY,TRIM1#

main62101-43020-B0iYXS10..SAL200210-200803

main62101-43020-B0iGXS1#,YXS10..SDX200108-200803

main62101-43021-B0iGBS12200804-200808

SHADOW GRAY,TRIM1#

main62101-43021-B0iGBS12200804-200808

main62111-43010-B0iGXS10,LXS11,SXS11,YXS1#199512-200108

SHADOW GRAY,TRIM1#

main62111-43010-B2iTSS13200709-200807

DK.GRAY,TRIM1#

main62111-43010-B2iYXS10..4HC200108-200803

main62111-43011-B2iTSS1#..DLX,SG,STD200804-200808

DK.GRAY,TRIM1#

main62111-43020-B1iGXS12,YXS10..SDX200108-200803

main62111-43020-B1iGXS10200110-200210

DK.GRAY,TRIM1#

main62111-43021-B1iTSS10..SDX200804-200808

DK.GRAY,TRIM1#

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-43010-B0iGXS10199512-200001

main62102-43011-B0iGXS10200001-200102

main62102-43020-B0iGBS12,GXS1#,YXS10..SED200108-200803

main62102-43021-B0iTSS10..SAL200808

main62102-43021-B0iTSS10..SDX200804-200808

SHADOW GRAY,TRIM1#

main62112-43010-B0iGXS10,LXS11,SXS11,YXS1#199512-199911

SHADOW GRAY,TRIM1#

main62112-43011-B0iGXS10,SXS11,YXS1#199911-200108

SHADOW GRAY,TRIM1#

main62112-43011-B2iSXS13,YXS1#..(4FC,4H,5F)..(DLX,SG,STD)200108-200709

main62112-43012-B2iTSS13200709-200807

DK.GRAY,TRIM1#

main62112-43013-B2iTSS1#..DLX,SG,STD200804-200808

DK.GRAY,TRIM1#

main62112-43020-B1iGXS12,YXS10..SDX200108-200803

main62112-43020-B1iGXS10200110-200210

DK.GRAY,TRIM1#

main62112-43021-B1iYXS10..SDX200804-200808

DK.GRAY,TRIM1#

62117ACOVER, COWL SIDE TRIM SERVICE HOLE

main62117-43010-B0iGXS10,LXS11,YXS1#..CRW,TAX199512-199701

SHADOW GRAY,TRIM1#

main62117-43011-B0iGXS10,LXS11,YXS1#..CRW,TAX199701-200108

SHADOW GRAY,TRIM1#

main62117-43020-B0iLXS11,SXS11,YXS11..DLX199604-199701

SHADOW GRAY,TRIM1#

main62117-43021-B0iLXS11,SXS11,YXS11..DLX199701-200108

SHADOW GRAY,TRIM1#

main62117-43030-B0iGXS12200108-200708

DK.GRAY,TRIM1#

main62117-43040-B0iGXS10,YXS10..SED200108-200808

DK.GRAY,TRIM1#

main62117-43050-B0iYXS10..CRW..4HC200108-200808

DK.GRAY,TRIM1#

main62117-43060-B0iGBS12200210-200808

DK.GRAY,TRIM1#

main62117-43070-B0iYXS10..SED200402-200405

main62117-43071-B0iYXS10..SED200406-200808

main62117-43080-B0iTSS1#200709-201008

DK.GRAY,TRIM1#

main62117-43081-B0iTSS1#201008-201310

DK.GRAY,TRIM1#

main62117-43082-B0iTSS1#201310

DK.GRAY,TRIM1#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-08149iTSS1#199512-200708

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-05050iGXS12200108-200708

main90467-05050iGXS10,LXS11,SXS11,YXS1#199512-200707

main90467-05050iTSS10..SED200808-201103

main90467-05111iYXS10..SED..4HC200108-200708

main90467-05111iTSS10..SED200808-201103

62199AHOLDER, FUSEE

main90468-25003iGXS10,LXS11,SXS11,YXS1#199512-200808

62211GARNISH, FRONT PILLAR, RH

main62211-43010-B0iLXS11,SXS11,YXS1#..DLX,STD199512-200808

LT.GRAY,TRIM1#

main62211-43020-B0iTSS11..SG199512-200808

LT.GRAY,TRIM1#

main62211-43030-B0iTSS10..SED200108-200808

LIGHT GRAY,TRIM1#

62212GARNISH, FRONT PILLAR, LH

main62212-43010-B0iYXS10..4HC199512-200808

LT.GRAY,TRIM1#

main62212-43020-B0iTSS11..SG199512-200808

LT.GRAY,TRIM1#

main62212-43030-B0iYXS10..4HC199801-200706

main62212-43050-B0iTSS10..SED200108-200808

LIGHT GRAY,TRIM1#

62313DTRIM, FRONT DOOR OPENING, RH

main62313-43010-B1iGXS10,YXS10199512-200108

SHADOW GRAY,TRIM1#

main62313-43010-B2iTSS10..CRW200108-200808

DK.GRAY,TRIM1#

main62313-43020-B1iLXS11,SXS11,YXS11199512-200108

SHADOW GRAY,TRIM1#

main62313-43020-B2iSXS13,YXS11200108-200808

DK.GRAY,TRIM1#

62314DTRIM, FRONT DOOR OPENING, LH

main62314-43010-B1iGXS10,YXS10199512-200108

SHADOW GRAY,TRIM1#

main62314-43010-B2iYXS10..4HC200108-200808

DK.GRAY,TRIM1#

main62314-43020-B1iLXS11,SXS11,YXS11199512-200108

SHADOW GRAY,TRIM1#

main62314-43020-B1iYXS10..4H,4HC200001-200108

main62314-43020-B2iYXS10..4H200108-200808

DK.GRAY,TRIM1#

main62314-43020-B2iYXS10..CRW..4HC200108-200808

62333ATRIM, REAR DOOR OPENING, RH

main62333-43010-B1iGXS10,LXS11,SXS11,YXS1#199512-200108

SHADOW GRAY,TRIM1#

main62333-43010-B2iSXS13,YXS1#..(4FC,4H,5F)..(DLX,SG,STD)200108-200808

DK.GRAY,TRIM1#

62334ATRIM, REAR DOOR OPENING, LH

main62334-43010-B0iGXS10,LXS11,SXS11,YXS1#199512-200108

SHADOW GRAY,TRIM1#

main62334-43010-B1iYXS10..4HC200108-200808

DK.GRAY,TRIM1#

main62334-43020-B0iYXS10..4H,4HC200001-200108

main62334-43020-B1iYXS10..CRW..4HC200108-200808

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main90467-10161iYXS10..CRW..4HC199512-200708

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-43010-B0iLXS11,SXS11,YXS1#..DLX,STD199512-200001

LT.GRAY,TRIM1#

main62411-43011-B0iSXS11,YXS1#..DLX,STD200001-200004

LT.GRAY,TRIM1#

main62411-43012-B0iYXS10..4HC200004-200808

LT.GRAY,TRIM1#

main62411-43020-B0iGXS10,LXS11,YXS11..SDX,SG199512-200001

LT.GRAY,TRIM1#

main62411-43021-B0iGXS10,YXS11..SDX,SG200001-200004

LT.GRAY,TRIM1#

main62411-43022-B0iYXS11..SG200004-200808

LT.GRAY,TRIM1#

main62411-43030-B0iGBS12,GXS1#,YXS10..SED200108-200808

LIGHT GRAY,TRIM1#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-43010-B0iLXS11,YXS1#..(CRW,TAX)..(DLX,STD)199512-200001

LT.GRAY,TRIM1#

main62412-43011-B0iYXS1#..(CRW,TAX)..(DLX,STD)200001-200004

LT.GRAY,TRIM1#

main62412-43012-B0iYXS10..4HC200004-200808

LT.GRAY,TRIM1#

main62412-43020-B0iGXS10,LXS11,YXS11..SDX,SG199512-200001

LT.GRAY,TRIM1#

main62412-43021-B0iGXS10,YXS11..SDX,SG200001-200004

LT.GRAY,TRIM1#

main62412-43022-B0iGXS10,YXS11..SDX,SG200004-200808

LT.GRAY,TRIM1#

main62412-43030-B0iLXS11,SXS11,YXS11..DLX199604-200001

LT.GRAY,TRIM1#

main62412-43031-B0iSXS11,YXS11..DLX200001-200004

LT.GRAY,TRIM1#

main62412-43032-B0iSXS11,YXS11..DLX200004-200808

LT.GRAY,TRIM1#

main62412-43040-B0iGXS10199512-200001

main62412-43041-B0iGXS10200001-200004

main62412-43042-B0iGXS10200004-200102

main62412-43050-B0iYXS11..STD;YXS10..4H,4HC199801-200001

main62412-43051-B0iYXS11..STD;YXS10..4H,4HC200001-200004

main62412-43052-B0iYXS10..CRW..4FC200707-200808

main62412-43052-B0iYXS10..4H;YXS11..STD200004-200808

main62412-43052-B0iTSS10,11..(CRW,TAX)..(DLX,STD)200808

main62412-43080-B0iGBS12,GXS1#,YXS10..SED200108-200808

LIGHT GRAY,TRIM1#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-43010-B0iGXS10,LXS11,SXS11,YXS1#199512-200001

SHADOW GRAY,TRIM1#

main62413-43011-B0iGXS10,SXS11,YXS1#200001-200108

SHADOW GRAY,TRIM1#

main62413-43011-B1iTSS1#..DLX,SG,STD200108-200808

DK.GRAY,TRIM1#

main62413-43020-B0iGBS12,GXS1#,YXS10..SED200108-200808

DK.GRAY,TRIM1#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-43010-B0iGXS10,LXS11,SXS11,YXS1#199512-200001

SHADOW GRAY,TRIM1#

main62414-43011-B0iGXS10,SXS11,YXS1#200001-200108

SHADOW GRAY,TRIM1#

main62414-43011-B1iYXS10..4HC200108-200808

DK.GRAY,TRIM1#

main62414-43020-B0iTSS10..SED200108-200808

DK.GRAY,TRIM1#

main62414-43030-B0iSXS13,YXS11200108-200110

62581CGARNISH, REAR WINDOW SIDE, RH

main62581-43010-B0iGXS10,LXS11,SXS11,YXS1#199512-201305

LT.GRAY,TRIM1#

main62581-43011-B0iTSS1#..DLX,SG,STD201305

LT.GRAY,TRIM1#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-43010-B0iGXS10,YXS10199512-200108

SHADOW GRAY,TRIM1#

main67913-43010-B1iYXS10..CRW..(4FC,4H)200108-200808

DK.GRAY,TRIM1#

main67913-43020-B0iLXS11,SXS11,YXS11199512-200108

SHADOW GRAY,TRIM1#

main67913-43020-B1iSXS13,YXS11200108-200808

DK.GRAY,TRIM1#

main67913-43030-B0iGBS12,GXS1#,YXS10..SED200108-200808

DK.GRAY,TRIM1#

67914PLATE, FRONT DOOR SCUFF, LH

main67913-43020-B0iYXS10..4H,4HC200001-200108

main67913-43020-B0iLXS11,SXS11,YXS11199512-200108

SHADOW GRAY,TRIM1#

main67913-43020-B1iSXS13,YXS11200108-200808

main67913-43020-B1iSXS13,YXS11200108-200808

DK.GRAY,TRIM1#

main67913-43020-B1iTSS10..CRW200808

main67914-43010-B0iGXS10,YXS10199512-200108

SHADOW GRAY,TRIM1#

main67914-43010-B1iYXS10..CRW..4HC200108-200808

DK.GRAY,TRIM1#

main67914-43020-B0iTSS10..SED200108-200808

DK.GRAY,TRIM1#

main67914-43030-B0iTSS10..CRW200808

DK.GRAY,TRIM1#

main67914-43030-B0iYXS10..CRW..(4FC,4H)200108-200808

67917APLATE, REAR DOOR SCUFF, RH

main67917-43010-B0iGXS10,LXS11,SXS11,YXS1#199512-200108

SHADOW GRAY,TRIM1#

main67917-43010-B1iSXS13,YXS1#..(4FC,4H,5F)..(DLX,SG,STD)200108-200808

DK.GRAY,TRIM1#

main67917-43020-B0iTSS10..SED200108-200808

DK.GRAY,TRIM1#

67918APLATE, REAR DOOR SCUFF, LH

main67918-43010-B0iGXS10,LXS11,SXS11,YXS1#199512-200108

SHADOW GRAY,TRIM1#

main67918-43010-B1iSXS13,YXS1#..(4FC,4H,5F)..(DLX,SG,STD)200108-200808

DK.GRAY,TRIM1#

main67918-43020-B0iYXS10..4H,4HC200001-200108

main67918-43020-B1iYXS10..4H200108-200808

main67918-43030-B0iGBS12,GXS1#,YXS10..SED200108-200808

DK.GRAY,TRIM1#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9018905167

main90189-05167

9046805077

main90468-05077

9356855016

main93568-55016

26 parts on this diagram · 2 diagrams in section
