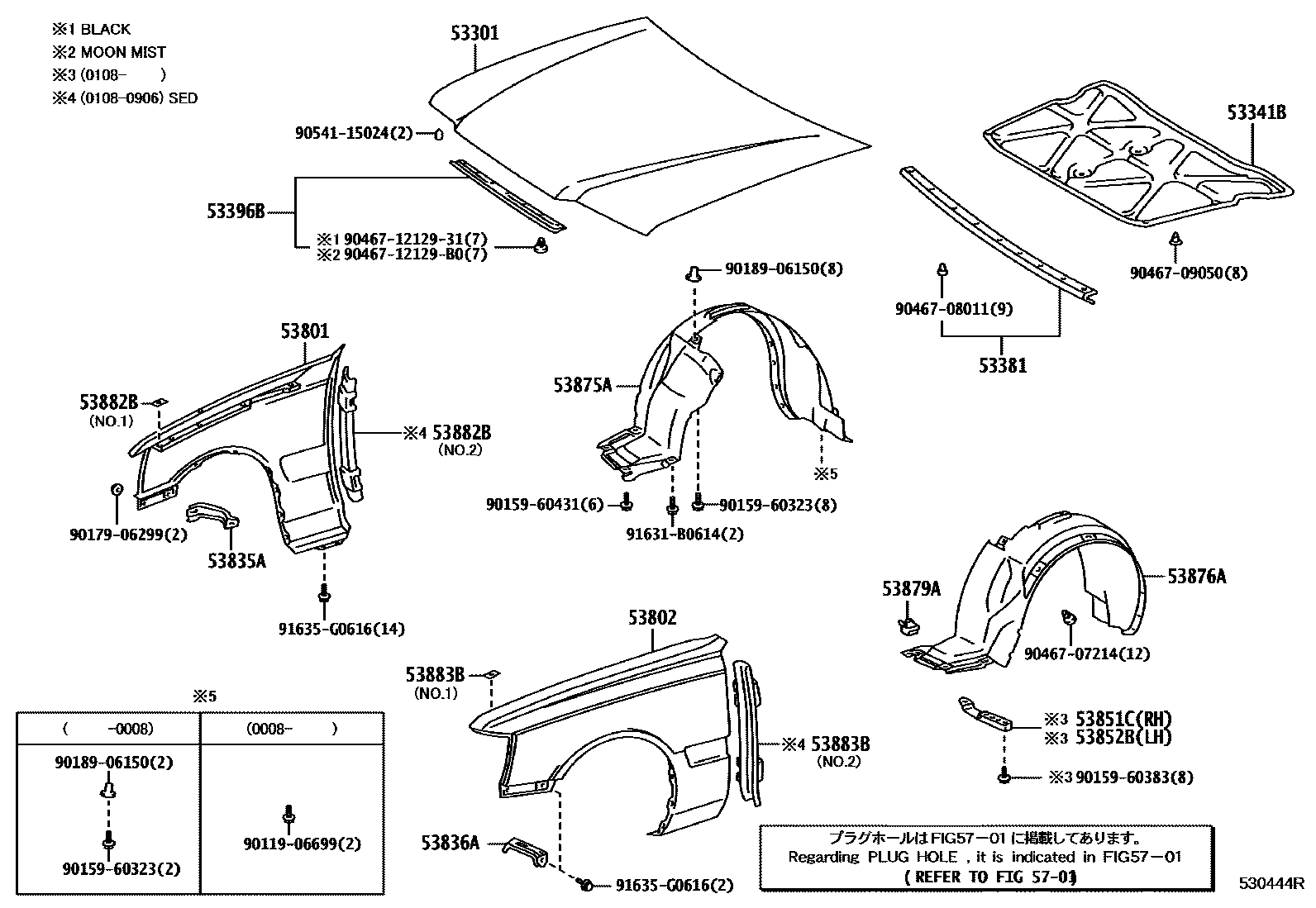

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-43010iGXS10,YXS10199512-199801

main53301-43011iYXS10..4HC200709-200808

main53301-43020iLXS11,SXS11,YXS11199512-199801

main53301-43021iTSS11,13200709

53341BINSULATOR, HOOD

main53341-43010iYXS1#..DLX,SG;GXS10,LXS11,SXS11; YXS11..STD199512-199801

main53341-43011iYXS1#..DLX,SG;GXS10,LXS11,SXS11; YXS11..STD199801-200106

main53341-43012iYXS11;SXS11,YXS10..DLX200106-200108

main53341-43020iYXS1#..DLX,SG;GXS10,LXS11,SXS11; YXS11..STD199701-199801

main53341-43021iYXS1#..DLX,SG;GXS10,LXS11,SXS11; YXS11..STD199801-200106

main53341-43022iYXS11;SXS11,YXS10..DLX200106-200108

main53341-43023iGXS10200205-200210

main53341-43024iTSS11;TSS10,13..DLX,SAL,SDX200808-201307

main53341-43025iTSS11;TSS10,13..DLX,SAL,SDX201308

main53341-43040iGBS12200210-200805

main53341-43041iGBS12200806

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-43010iYXS10..4H;YXS10..SED..4HC; YXS10..CRW..4HC200108-200706

53396BSEAL, RADIATOR SUPPORT TO HEADLAMP

main53396-43010iLXS11199512-199908

53801FENDER SUB-ASSY, FRONT RH

main53811-43010iGXS10,LXS11,SXS11,YXS1#199512-200108

main53811-43011iTSS1#..DLX,SDX,SG,STD200709

main53811-43020iSXS13,YXS11..DLX,SG200108-200406

main53811-43021iSXS13,YXS11..DLX,SG200406-200808

main53811-43030iGBS12,GXS1#,YXS10..SED200108-200406

main53811-43031iGBS12,GXS12,YXS10..SED200406-200808

main53811-43040iGBS12,GXS1#,YXS10..SDX200108-200406

main53811-43041iGBS12,GXS12,YXS10..SDX; YXS10..SAL200406-200808

53802FENDER SUB-ASSY, FRONT LH

main53812-43010iGXS1#,SXS13,YXS1#..DLX,SDX,SG,STD200108-200406

main53812-43011iYXS10..4HC200709-200808

main53812-43020iSXS13,YXS11..DLX,SG200108-200406

main53812-43021iTSS11,13..DLX,SG200709

main53812-43030iGBS12,GXS1#,YXS10..SED200108-200406

main53812-43031iTSS10..SED200808

main53812-43040iYXS10..SAL200210-200406

main53812-43041iGBS12,GXS12,YXS10..SDX; YXS10..SAL200406-200808

53835ABRACE, FRONT FENDER TO APRON, RH

main53835-43010iYXS10..CRW..4HC200108-200706

53836ABRACE, FRONT FENDER TO APRON, LH

main53836-43010iGXS10,LXS11,SXS11,YXS1#199512-200108

53851CPAD, FRONT WHEEL OPENING EXTENSION, NO.1

main53851-30040iYXS10..4H;YXS10..SED..4HC; YXS10..CRW..4HC200108-200706

53852BPAD, FRONT WHEEL OPENING EXTENSION, LH

main53852-30040iGXS10200108-200210

53875ALINER, FRONT FENDER, RH

main53875-43010iGXS10,LXS11,SXS11,YXS1#199512-200108

main53875-43011iGXS10200108-200210

main53875-43012iTSS1#..DLX,SDX,SG,STD200808-201501

main53875-43030iGXS1#,YXS10..SDX200201-200210

main53875-43031iTSS10..SAL200808-201501

main53875-43040iTSS1#..DLX,SDX,SG,STD201501-201503

main53875-43041iTSS1#..DLX,SDX,SG,STD201504

main53875-43050iTSS10..SAL201501-201503

main53875-43051iTSS10..SAL201504

53876ALINER, FRONT FENDER, LH

main53876-43010iGXS10,LXS11,SXS11,YXS1#199512-200108

main53876-43011iYXS10..4H;YXS10..4HC..SDX; YXS10..CRW..4HC200108-200706

main53876-43012iTSS1#..DLX,SDX,SG,STD200808-201501

main53876-43020iGXS1#,YXS10..SDX200201-200210

main53876-43021iTSS10..SAL200808-201501

main53876-43030iGBS12200210

main53876-43050iTSS1#..DLX,SDX,SG,STD201501-201503

main53876-43051iTSS1#..DLX,SDX,SG,STD201504

main53876-43060iTSS10..SAL201501-201503

main53876-43061iTSS10..SAL201504

53879ARETAINER, FRONT FENDER LINER

main53879-17020×6iTSS1#; YXS10..4HC200709

53882BSEAL, FRONT FENDER, RH

main53882-16030×4iYXS10..CRW..4HC200108-200706

NO.1

main53882-43010iGBS12,GXS1#,YXS10..SED200108-200808

main53882-43020iTSS10..SED200808-200906

53883BSEAL, FRONT FENDER, LH

main53882-16030×4iTSS1#200709

NO.1

main53883-43010iGBS12,GXS1#,YXS10..SED200108-200808

main53883-43020iTSS10..SED200808-200906

5701HOLE PLUG

→ Go to FIG 57-01

9011906699

main90119-06699

9015960323

main90159-60323

9015960383

main90159-60383

9015960431

main90159-60431

9017906299

main90179-06299

9018906150

main90189-06150

9046707214

main90467-07214

9046708011

main90467-08011

9046709050

main90467-09050

904671212931

main90467-1212931

9046712129B0

main90467-12129B0

9054115024

main90541-15024

91631B0614

main91631-B0614

91635G0616

main91635-G0616

30 parts on this diagram · 1 diagram in section
