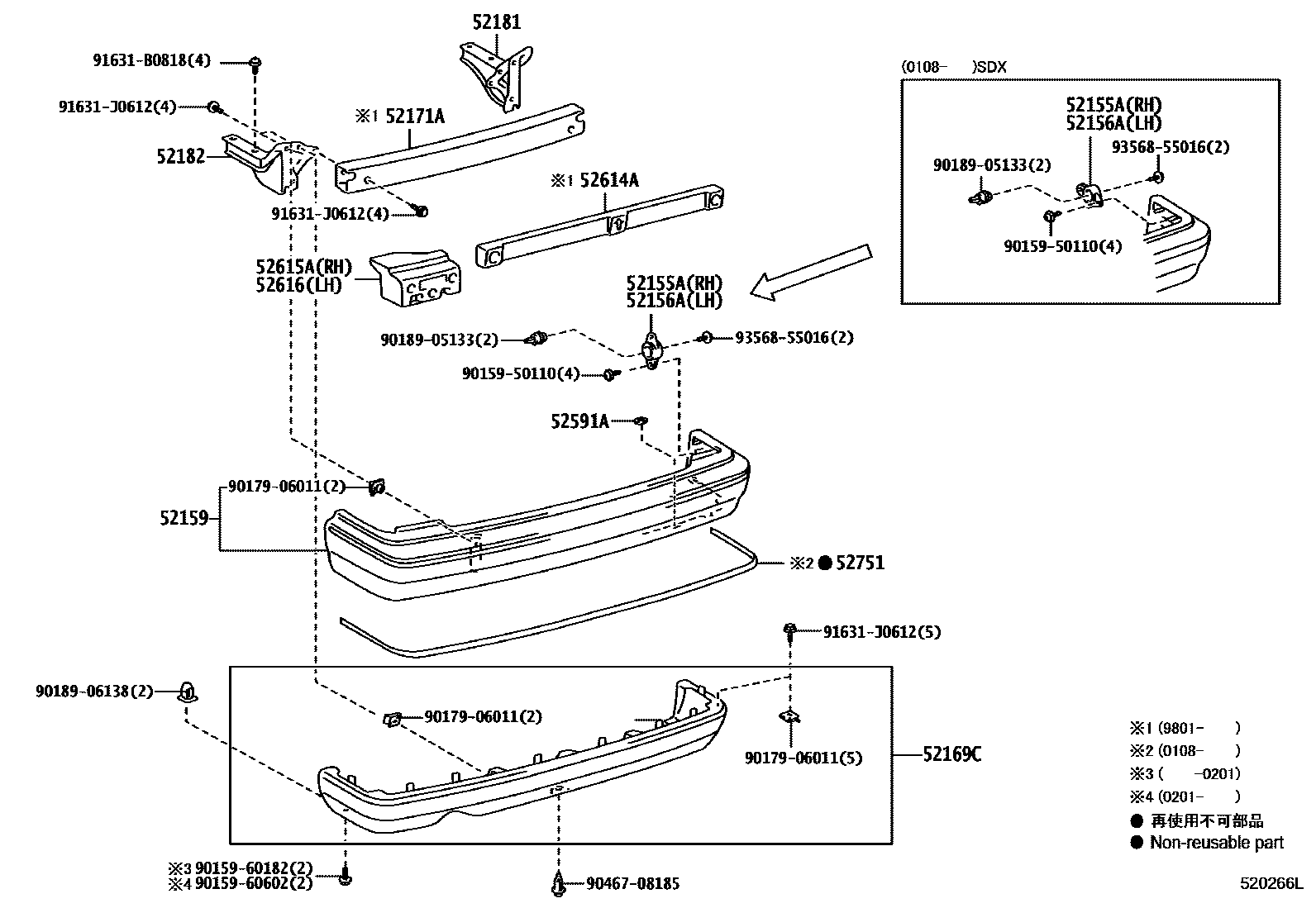

REAR BUMPER & BUMPER STAY

0001 1 0002 13 ����-�-

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-43010iYXS10..4H; YXS10..CRW..4HC200108-200706

main52155-43020iGBS12,YXS10..4FC..SDX200108

main52155-43040iYXS10..4HC..SAL200210-200706

52156ASUPPORT, REAR BUMPER SIDE, LH

main52155-43010iYXS1#..(4FC,5F)..(DLX,SG,STD)200108

main52155-43020iGBS12,YXS10..4FC..SDX200108

main52155-43040iGXS1#,YXS10..SDX200201-200210

52159COVER, REAR BUMPER

main52159-43010iGXS10,LXS11,SXS11,YXS1#199512-199809

main52159-43011iYXS10..4HC200709-200808

main52159-43020-A0iYXS11;GXS10,LXS11,SXS11,YXS10..DLX,SDX,SG199512-199809

SUPER WHITE 2,040

main52159-43020-C0iYXS11..TAX;GXS10,LXS11,YXS10..(CRW,TAX)..(DLX,SDX,SG)199512-199809

BLACK,202 ,A3C

main52159-43021-A0iSXS13,YXS11;YXS10..(4FC,4H)..DLX200108-200808

SUPER WHITE 2,040

main52159-43021-C0iYXS11..TAX;GXS10,LXS11,YXS10..(CRW,TAX)..(DLX,SDX,SG)199809-200108

BLACK,202 ,A3C

main52159-43030-A0iGBS12,GXS1#,YXS10..SDX200108-200808

SUPER WHITE 2,040

main52159-43030-A1iGBS12,GXS1#,YXS10..SDX200108-200808

WHITE PEARL CS.,065

main52159-43030-A2iTSS10..SDX201206-201608

WHITE PEARL CS.,070

main52159-43030-B0iGBS12,GXS1#,YXS10..SDX200108-200808

SILVER ME.,1C0

main52159-43030-C0iTSS10..SDX200808

BLACK,202

main52159-43030-J0iGBS12,GXS1#,YXS10..SDX200108-200808

DARK BLUE MC.,8P8

main52159-43040-A0iYXS10..SAL200210-200808

SUPER WHITE 2,040

main52159-43040-A1iGXS1#,YXS10..SDX200201-200210

main52159-43040-A2iTSS10..SAL201206-201606

WHITE PEARL CS.,070

main52159-43040-B0iTSS10..SAL200808-201606

SILVER ME.,1C0

main52159-43040-C0iGXS1#,YXS10..SDX200201-200210

main52159-43040-J0iTSS10..SAL200808-201606

DARK BLUE MC.,8P8

main52159-43050-A1iTSS10..SDX201608

WHITE PEARL CS.,070

main52159-43060-A1iTSS10..SAL201606

WHITE PEARL CS.,070

52169CCOVER, REAR BUMPER, LOWER

main52169-43010iGXS10,LXS11,SXS11,YXS1#199512-199809

main52169-43011iGXS10,LXS11,SXS11,YXS1#199809-200108

main52169-43020-A0iGXS10,LXS11,SXS11,YXS1#..DLX,SDX,SG; YXS11..STD199512-199809

main52169-43020-C0iGXS10,LXS11,YXS1#..(CRW,TAX)..(DLX,SDX,SG); YXS11..STD199512-199809

main52169-43021-A0iYXS10..4HC..DLX200709-200808

SUPER WHITE 2,040

main52169-43021-A1iGBS12,GXS1#,YXS10..SDX200108-200808

WHITE PEARL CS.,065

main52169-43021-A2iTSS10..SDX201206-201608

WHITE PEARL CS.,070

main52169-43021-B1iTSS10..SDX200808

SILVER ME.,1C0

main52169-43021-C0iYXS10..4HC..DLX200709-200808

BLACK,202

main52169-43021-J0iGBS12,GXS1#,YXS10..SDX200108-200808

DARK BLUE MC.,8P8

main52169-43030-A1iTSS10..SDX201608

WHITE PEARL CS.,070

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-43010iSXS13200108-200707

52181ARM, REAR BUMPER, RH

main52015-43010iTSS1#; YXS10..4HC200709

main52181-43010iGXS10,LXS11,SXS11,YXS1#199512-199801

52182ARM, REAR BUMPER, LH

main52016-43010iTSS1#; YXS10..4HC200709

main52182-43010iGXS10,LXS11,SXS11,YXS1#199512-199801

52591ASEAL, REAR BUMPER

main52591-43010×8iSXS13200108-200707

52614AABSORBER, REAR BUMPER ENERGY, NO.2

main52614-43010iGXS10,LXS11,SXS11,YXS1#199801-200108

main52614-43020iGBS12,GXS1#,YXS10..SDX200108-200808

main52614-43030iYXS10..4HC..SAL200210-200706

52615AABSORBER, REAR BUMPER ENERGY, RH

main52615-43010iYXS10..4H; YXS10..CRW..4HC200108-200706

main52615-43020iYXS10..4HC..SDX200108-200706

main52615-43030iYXS10..4FC..SAL200210

52616ABSORBER, REAR BUMPER ENERGY, LH

main52616-43010iYXS1#..(4FC,5F)..(DLX,SG,STD)200108

main52616-43020iGXS10200108-200210

main52616-43030iYXS10..4FC..SAL200201

52751MOULDING, REAR BUMPER

main52751-43010iYXS10..4HC..SDX200108-200706

main52751-43020iGXS1#,YXS10..SDX200201-200210

9015950110

main90159-50110

9015960182

main90159-60182

9015960602

main90159-60602

9017906011

main90179-06011

9018905133

main90189-05133

9018906138

main90189-06138

9046708185

main90467-08185

91631B0818

main91631-B0818

91631J0612

main91631-J0612

9356855016

main93568-55016

22 parts on this diagram · 2 diagrams in section
