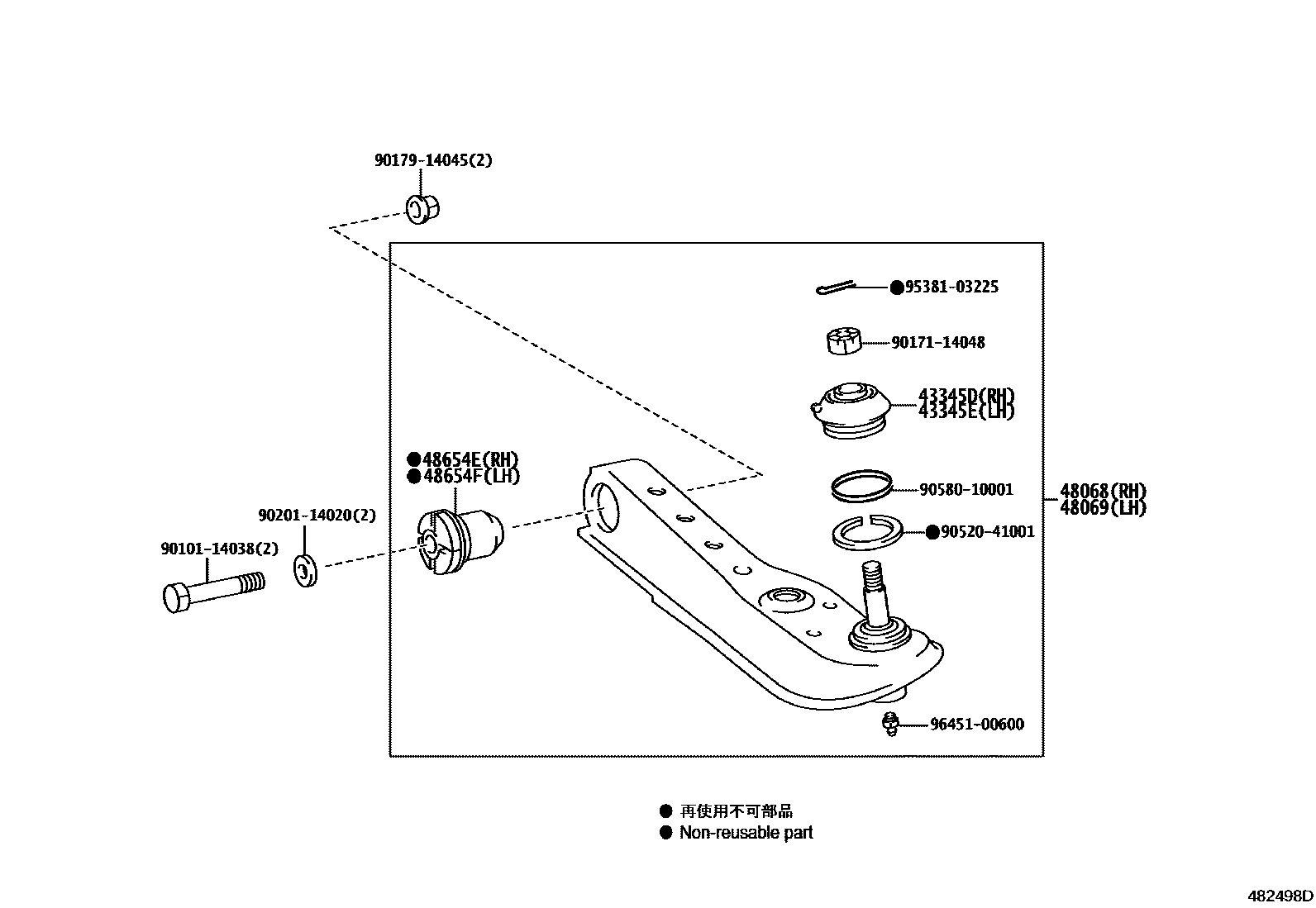

FRONT AXLE ARM & STEERING KNUCKLE

43345DCOVER, LOWER BALL JOINT DUST, RH

main43345-22070iGXS10,LXS11,SXS11,YXS1#199512-200108

43345ECOVER, LOWER BALL JOINT DUST, LH

main43345-22070iGXS10,LXS11,SXS11,YXS1#199512-200108

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-49035iGXS10,LXS11,SXS11,YXS1#199512-199612

main48068-49036iGXS10,LXS11,SXS11,YXS1#199612-200108

main48068-49075iYXS10..CRW..4HC200607-200706

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-49035iGXS10,LXS11,SXS11,YXS1#199512-199612

main48069-49036iGXS10,LXS11,SXS11,YXS1#199612-200108

main48069-49075iYXS10..CRW..4HC200607-200706

48654EBUSH, FRONT LOWER ARM, NO.1 RH

main48654-22030iGXS10,LXS11,SXS11,YXS1#199512-200108

48654FBUSH, FRONT LOWER ARM, NO.1 LH

main48654-22030iGXS10,LXS11,SXS11,YXS1#199512-200108

9010114038

main90101-14038

9017114048

main90171-14048

9017914045

main90179-14045

9020114020

main90201-14020

9052041001

main90520-41001

9058010001

main90580-10001

9538103225

main95381-03225

9645100600

main96451-00600

14 parts on this diagram · 1 diagram in section
