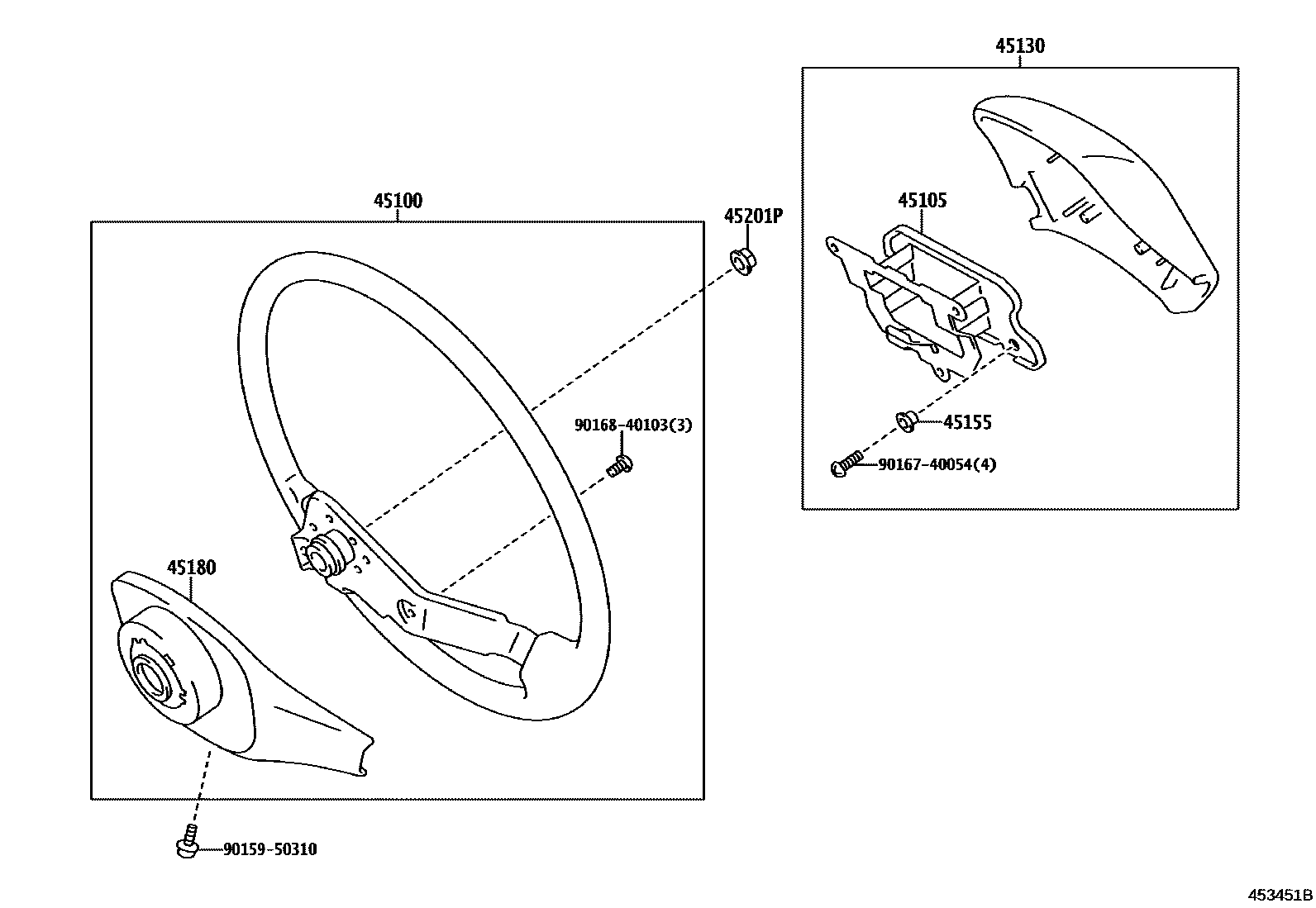

STEERING WHEEL

0001 12-����� 0002 13-����� 0003 14-�����,��(�������) 0005 14-�����,��(�������) 0006 14-�����,��(�������) 0007 14-�����

45100WHEEL ASSY, STEERING

main45100-26230-B1iLXS11,YXS1#..(CRW,TAX)..(DLX,STD)199512-200108

main45100-26230-B3iYXS10..CRW..4HC200108-200706

main45100-2A040-B1iGBS12,GXS1#,YXS10..SED200108-200310

main45100-30680-B2iGXS10,LXS11,SXS11,YXS1#..DLX,SDX,SG199512-200108

main45100-30680-B4iYXS11..SG;SXS13,YXS10..(4FC,4H,5F)..DLX200108-200808

main45100-43010-B0iGXS10,LXS11,YXS1#199512-199604

main45100-43011-B0iGXS10,LXS11,SXS11,YXS1#199604-199701

main45100-43020-B0iGXS10,LXS11,SXS11,YXS1#199701-200001

main45100-43030-B0iGXS10,SXS11,YXS1#200001-200108

main45100-43030-B1iYXS10..4HC200709-200808

main45100-43050-B0iTSS10..SED200808-201310

main45100-43060-B0iTSS1#..DLX,SG,STD201310

main45100-43070-B0iTSS10..SED201310

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-12200iYXS1#..(4FC,5F)..STD; YXS10..4FC..DLX200108

main45105-30220iGXS10,LXS11,SXS11,YXS1#..DLX,SDX,SG199512-200001

main45105-43010iYXS11..DLX200108-200709

45130BUTTON ASSY, HORN

main45130-13010-B0iGXS10,LXS11,SXS11,YXS1#199701-200001

main45130-22520-B2iGBS12,GXS1#,YXS10..SED200108-200808

DK.GRAY,TRIM1#

main45130-26260-B1iLXS11,YXS1#..STD; YXS10..DLX199512-200108

main45130-26260-B3iYXS1#..(CRW,TAX)..(4FC,4H,5F)..(DLX,STD)200108-200808

main45130-26320-B1iGXS10,SXS11,YXS1#200001-200108

main45130-26320-B2iSXS13,YXS1#..(4FC,4H,5F)..(DLX,SG,STD)200108-200808

main45130-2B370-B0iGXS10,LXS11,SXS11,YXS1#199512-199701

main45130-30410-B1iGXS10,YXS10..DLX,SDX199512-200001

SHADOW GRAY,TRIM1#

main45130-43010-B0iLXS11,SXS11,YXS11..DLX,SG199512-200001

main45130-43030-B0iGXS10,YXS10..DLX,SDX200001-200108

SHADOW GRAY,TRIM1#

main45130-43030-B1iYXS10..4HC..DLX200709-200808

main45130-43040-B0iSXS11,YXS11..DLX,SG200001-200108

main45130-43040-B1iSXS13;YXS11..SG200108-200808

45155SPACER, HORN BUTTON CONTACT PLATE

main45155-12050×4iYXS10..4H..DLX; YXS10..4H..STD; YXS10..4HC..DLX; YXS10..4HC..STD200108-200706

45180COVER SUB-ASSY, STEERING WHEEL

main45180-26040-B1iLXS11,YXS1#..(CRW,TAX)..(DLX,STD)199512-200108

main45180-26040-B3iYXS1#..(CRW,TAX)..(4FC,4H,5F)..(DLX,STD)200108-200808

main45180-30070-B1iGXS10,LXS11,SXS11,YXS1#..DLX,SDX,SG199512-200108

SHADOW GRAY,TRIM1#

main45180-30070-B2iYXS10..4HC..DLX200709-200808

DK.GRAY,TRIM1#

45201PNUT, STEERING WHEEL SET

main90179-12071iGXS10,LXS11,SXS11,YXS1#199512-200108

9015950310

main90159-50310

9016740054

main90167-40054

9016840103

main90168-40103

9 parts on this diagram · 6 diagrams in section
