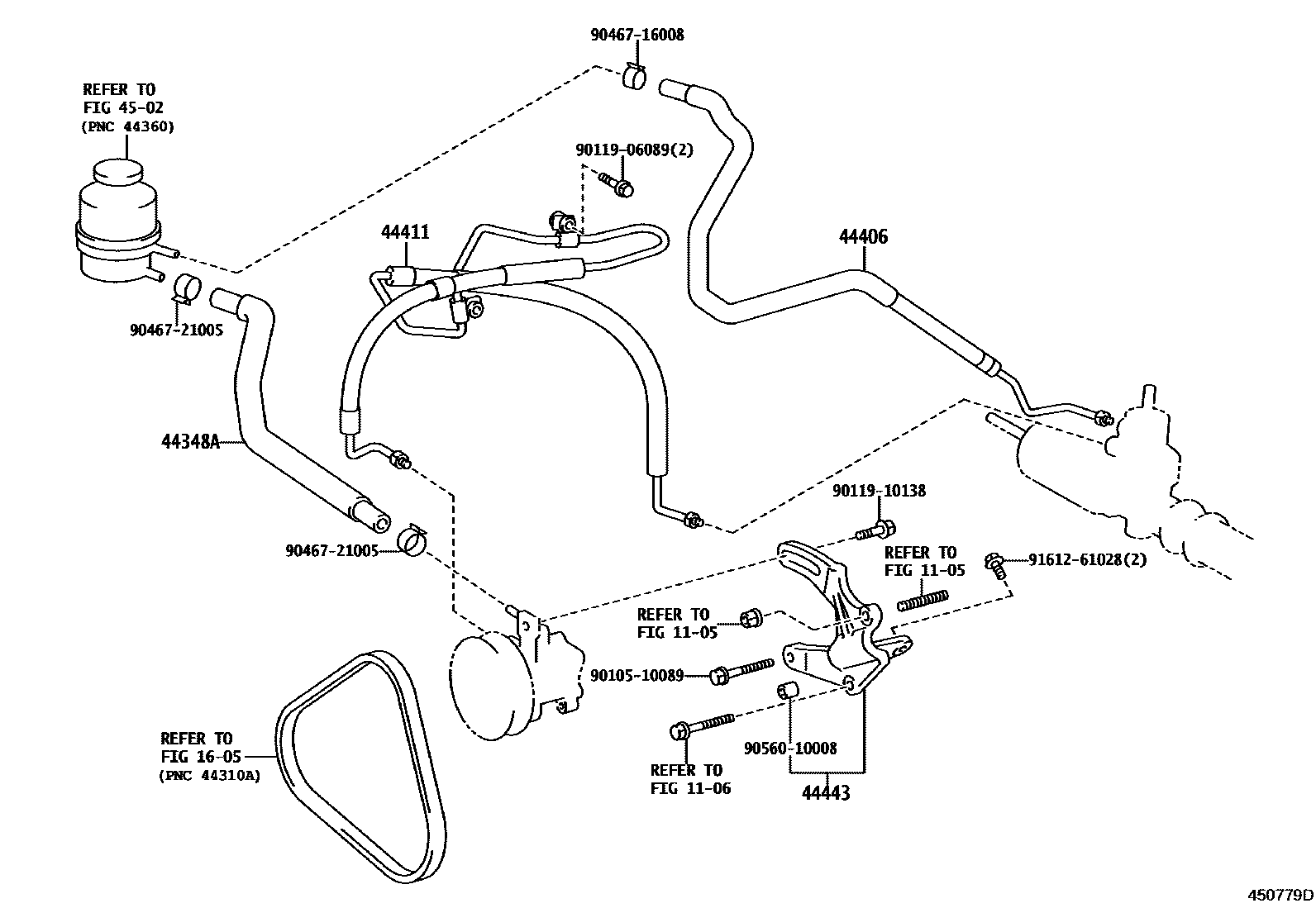

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

1105CYLINDER BLOCK

→ Go to FIG 11-05

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

1605V-BELT

→ Go to FIG 16-05

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-22160iGXS10199512-199801

main44348-22161iGXS10200110-200210

main44348-22180iSXS11199604-200108

main44348-43010iLXS11199512-199908

main44348-43020iGXS12200108-200708

44406TUBE SUB-ASSY, RETURN

main44406-43010iGXS10199512-199801

main44406-43011iGXS12200108-200708

main44406-43020iSXS13200108-200707

main44406-43030iTSS1#200709

44411HOSE, PRESSURE FEED

main44411-43010iGXS10199512-199801

main44411-43011iGXS10200110-200210

main44411-43020iSXS11199604-200108

main44411-43030iGXS12200108-200708

main44411-43040iSXS13200108-200707

44443BRACKET, PUMP

main44440-43010iGXS10199801-200102

main44443-22090iSXS13200108-200707

main44443-22110iLXS11199512-199908

main44443-22150iGXS12200108-200708

main44443-28021iYXS10..4HC200709

main44443-30120iGXS10199512-199801

main44443-30140iGXS10200110-200210

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

9010510089

main90105-10089

9011906089

main90119-06089

9011910138

main90119-10138

9046716008

main90467-16008

9046721005

main90467-21005

9056010008

main90560-10008

9161261028

main91612-61028

15 parts on this diagram · 9 diagrams in section
