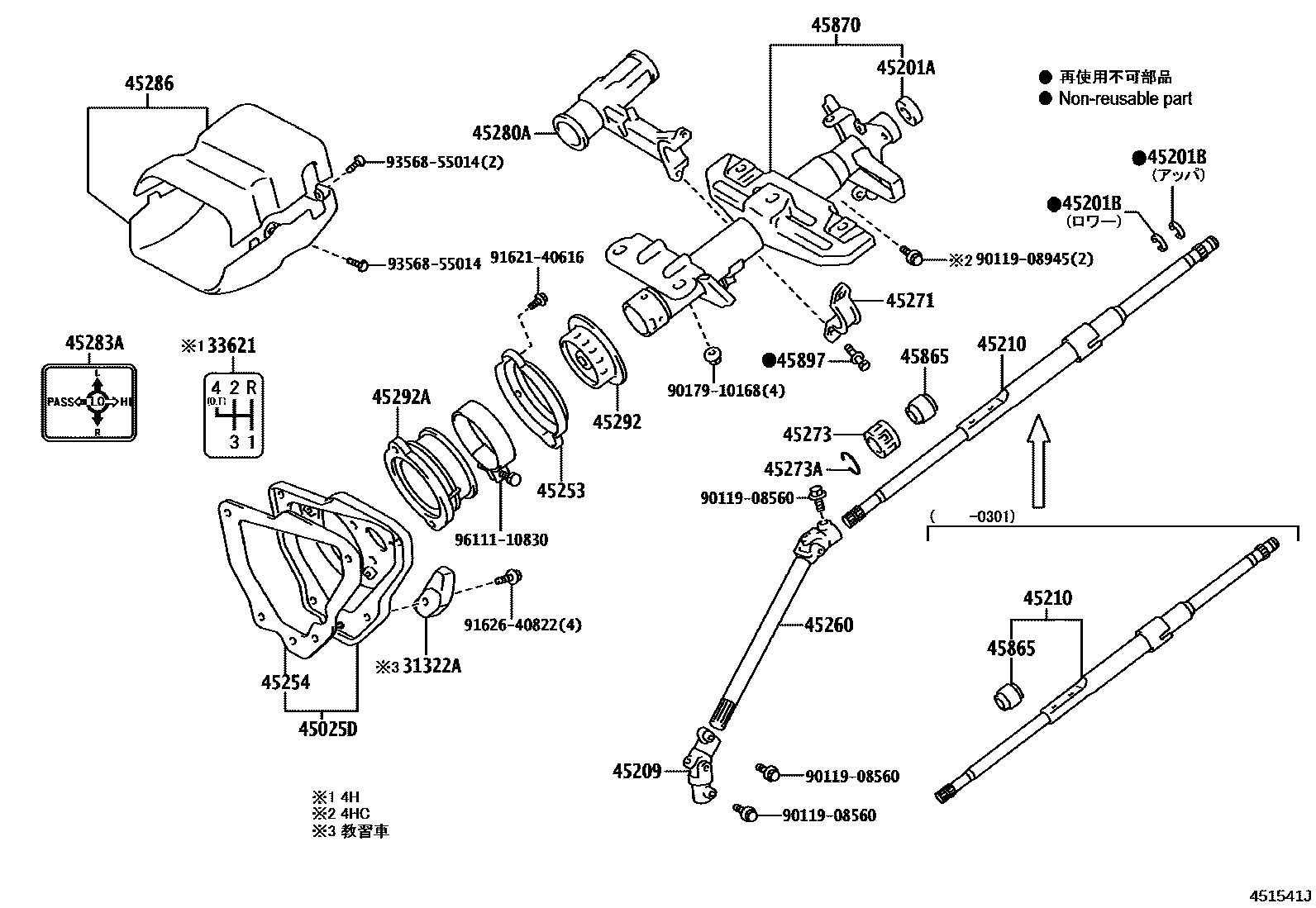

STEERING COLUMN & SHAFT

0001 1 0002 1���������� 0003 1���������� 0004 1

31322ASTOPPER, CLUTCH PEDAL

main31322-43010iLXS11,SXS11,YXS11..5F..DLX199808-200108

33621PLATE, CONTROL LEVER CAUTION

main33621-30040iYXS10..4H200108-200706

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-43010iYXS1#..(4FC,5F)..(DLX,SG,STD)200108

main45025-43020iYXS10..4H; YXS10..CRW..4HC200108-200706

main45025-43030iYXS10..SED..4HC200110-200706

main45025-43040iGXS12200110-200708

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18005×2iGBS12;YXS10..4FC..SAL; YXS10..4FC..SDX200306

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iYXS10..4H;YXS1#..(4FC,5F)..STD;GXS10,YXS10..SED..4HC; YXS10..CRW..4FC;GXS10,SXS13,YXS11..4FC,5F200108-200808

main90520-17269iTSS10,11..STD200808

45209YOKE SUB-ASSY, STEERING SLIDING

main45206-22010iTSS1#200709

main45209-16010iSXS13200204-200707

main45209-22020iGXS10200110-200210

main45209-32020iGXS12,SXS13,YXS1#200108-200204

45210SHAFT ASSY, STEERING MAIN

main45203-43020iYXS10..4H;YXS10..SED..4HC; YXS10..CRW..4HC200301-200706

main45210-43010iYXS10..4HC..SDX200108-200110

main45210-43020iYXS11..STD199512-199701

main45210-43030iSXS13200108-200707

45253COVER, STEERING COLUMN HOLE

main45253-43030iYXS10..4H;YXS10..4HC..SAL; YXS10..CRW..4HC200108-200706

45254SHIELD, STEERING COLUMN HOLE

main45254-43010iGXS12,YXS10..SDX200108-200109

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-43010iGXS10,LXS11,SXS11,YXS1#199512-200108

45271CLAMP, STEERING COLUMN, UPPER

main45271-12060iGXS10,LXS11,SXS11,YXS1#199512-200108

45273BUSH, STEERING MAIN SHAFT

main45273-20011iGXS10,LXS11,SXS11,YXS1#199512-200108

45273ARING, HOLE SNAP(FOR STEERING MAIN SHAFT BUSH)

main90521-01006iYXS10..4FC..SDX200110

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-43020iLXS11,SXS11,YXS1#..MTM199512-200108

main45280-43030iYXS10..CRW..4HC; YXS10..SED..4HC200108-200706

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-22010iTSS1#; YXS10..4HC200709

45286COVER, STEERING COLUMN

main45286-43900-B0iYXS10..4H199512-200108

SHADOW GRAY,TRIM1#

main45286-43900-B1iYXS10..4H200108-200706

DK. GRAY,TRIM1#

main45286-43901-B0iGXS10,YXS10..4HC199512-200108

SHADOW GRAY,TRIM1#

main45286-43901-B1iGXS10..4HC200108-200210

DK. GRAY,TRIM1#

main45286-43902-B0iLXS11,YXS1#..(4FC,5F)..STD199512-200108

SHADOW GRAY,TRIM1#

main45286-43902-B1iTSS10,11..STD200808

DK. GRAY,TRIM1#

main45286-43903-B0iGXS10,LXS11,SXS11,YXS1#..(4FC,5F)..(DLX,SDX,SG)199512-200108

SHADOW GRAY,TRIM1#

main45286-43903-B1iGBS12,YXS1#..(4FC,5F)..(DLX,SAL,SDX,SG); YXS1#..(4FC,5F)..STD200108

45292SEAL, MAIN SHAFT LOWER DUST

main45292-30070iGXS12,YXS10..SDX200108-200109

45292ACOVER, MAIN SHAFT LOWER DUST

main45292-43010iYXS10..4H;YXS10..4HC..SAL; YXS10..CRW..4HC200108-200706

45865COLLAR, STEERING MAIN SHAFT

main45865-20010iGXS12,YXS10..4FC..SDX200108-200109

45870TUBE ASSY, STEERING COLUMN

main45870-43010iYXS10..CRW..4HC; YXS10..SED..4HC200108-200706

main45870-43020iTSS10,11..STD200808

main45870-43030iGBS12;YXS10..4FC..SAL200210

main45870-43040iYXS10..4H199512-200108

45897BOLT, STEERING LOCK SET

main45897-12020×2iSXS13200108-200707

9011908560

main90119-08560

9011908945

main90119-08945

9017910168

main90179-10168

9162140616

main91621-40616

9162640822

main91626-40822

9356855014

main93568-55014

9611110830

main96111-10830

28 parts on this diagram · 4 diagrams in section
