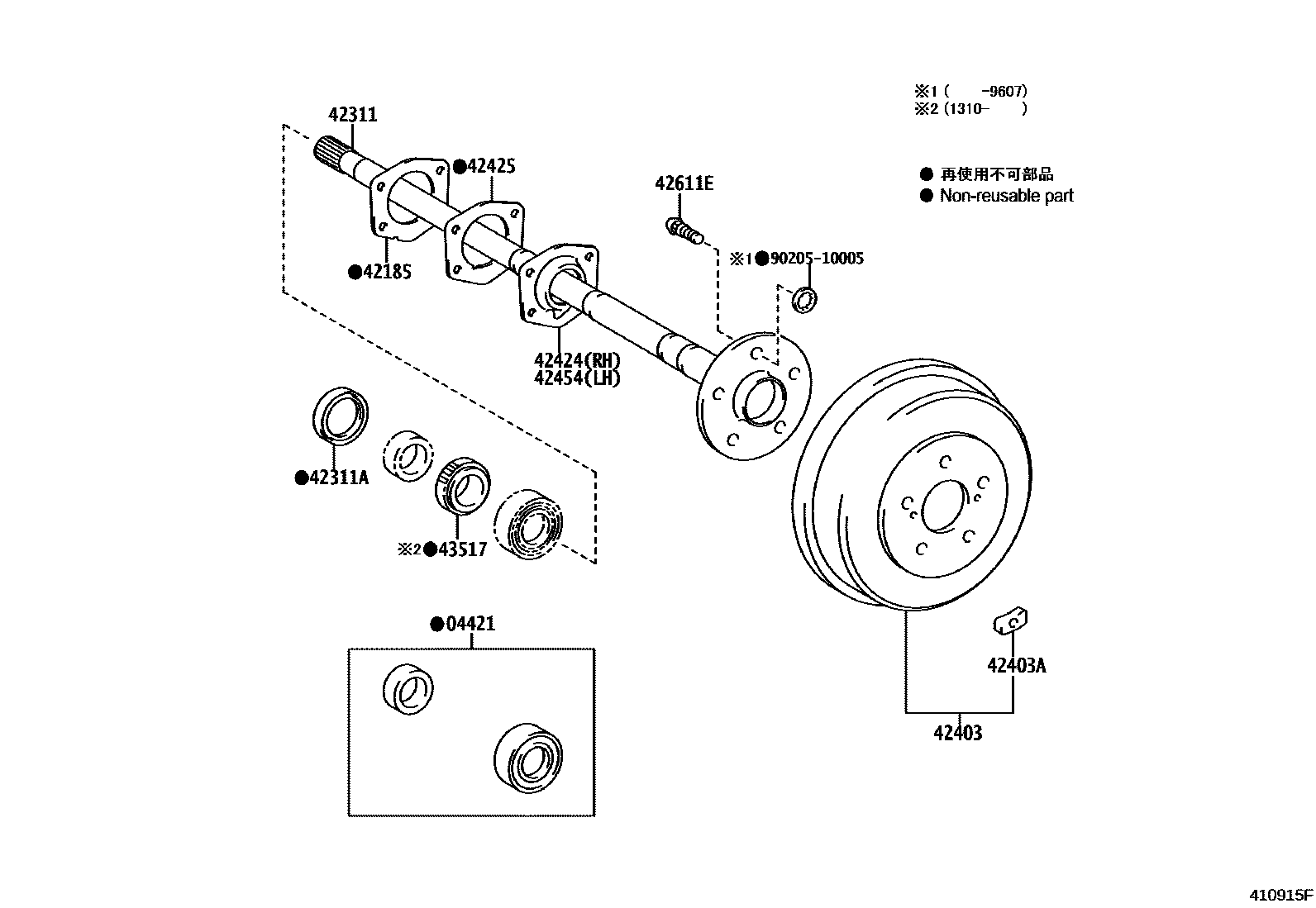

REAR AXLE SHAFT & HUB

04421BEARING KIT, REAR AXLE SHAFT

main04421-30011×2iLXS11,SXS11,YXS11..DLX199604-200010

main04421-30012×2iSXS13,YXS11..DLX200108-200808

main04421-30070×2iGXS10,LXS11,YXS1#..CRW,TAX199512-199708

main04421-30080×2iGXS10,LXS11,YXS1#..CRW,TAX199708-199905

main04421-30081×2iGXS10,LXS11,YXS1#..CRW,TAX199905-200108

42185GASKET, REAR AXLE HOUSING END

main42185-14020×2iLXS11,SXS11,YXS11..DLX199604-200108

main42185-30061×2iGXS10,LXS11,YXS1#..CRW,TAX199512-200006

main42185-43030×2iYXS10..4H; YXS10..CRW..ATM200108-200402

42311SHAFT, REAR AXLE

main42311-22140×2iLXS11..5F;GXS10,LXS11,YXS1#..CRW,TAX199512-200108

main42311-22150×2iLXS11..4FC..DLX;SXS11,YXS11..DLX199604-200108

main42311-43010×2iTSS1#200808-201309

main42311-43011×2iTSS1#201310

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90310-52001×2iTSS1#201310

main90311-52059×2iYXS10..CRW..4HC200108-200706

42403DRUM SUB-ASSY, REAR BRAKE

main42431-43010×2iLXS11,SXS11,YXS11..DLX199701-200108

main42431-43020×2iGXS10,LXS11,YXS1#..CRW,TAX199701-200108

main42431-43021×2iYXS10..4HC200709-200808

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01287iTSS1#; YXS10..4HC200709

main90937-01288iGBS12,YXS1#..4FC,5F200108

main90937-01289iGXS10,LXS11,SXS11,YXS1#199512-200108

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42424-14020iSXS13,YXS11..DLX200108-200808

main42424-30040iYXS10..CRW..(4FC,4H);GBS12,GXS1#,YXS1#..SED,TAX200108-200808

42425GASKET, REAR AXLE BEARING RETAINER

main42425-14020×2iTSS13200709-200808

main42425-30031×2iGXS10,LXS11,YXS1#..CRW,TAX199512-200006

main42425-43010×2iYXS10..CRW..4HC200108-200706

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42424-30040iYXS10..CRW..(4FC,4H);GBS12,GXS1#,YXS1#..SED,TAX200108-200808

main42454-14010iSXS13,YXS11..DLX200108-200808

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02047×10iTSS1#200709

43517ROTOR, SKID CONTROL, REAR

main43517-13011×2iTSS1#201310

9020510005

main90205-10005

12 parts on this diagram · 1 diagram in section
