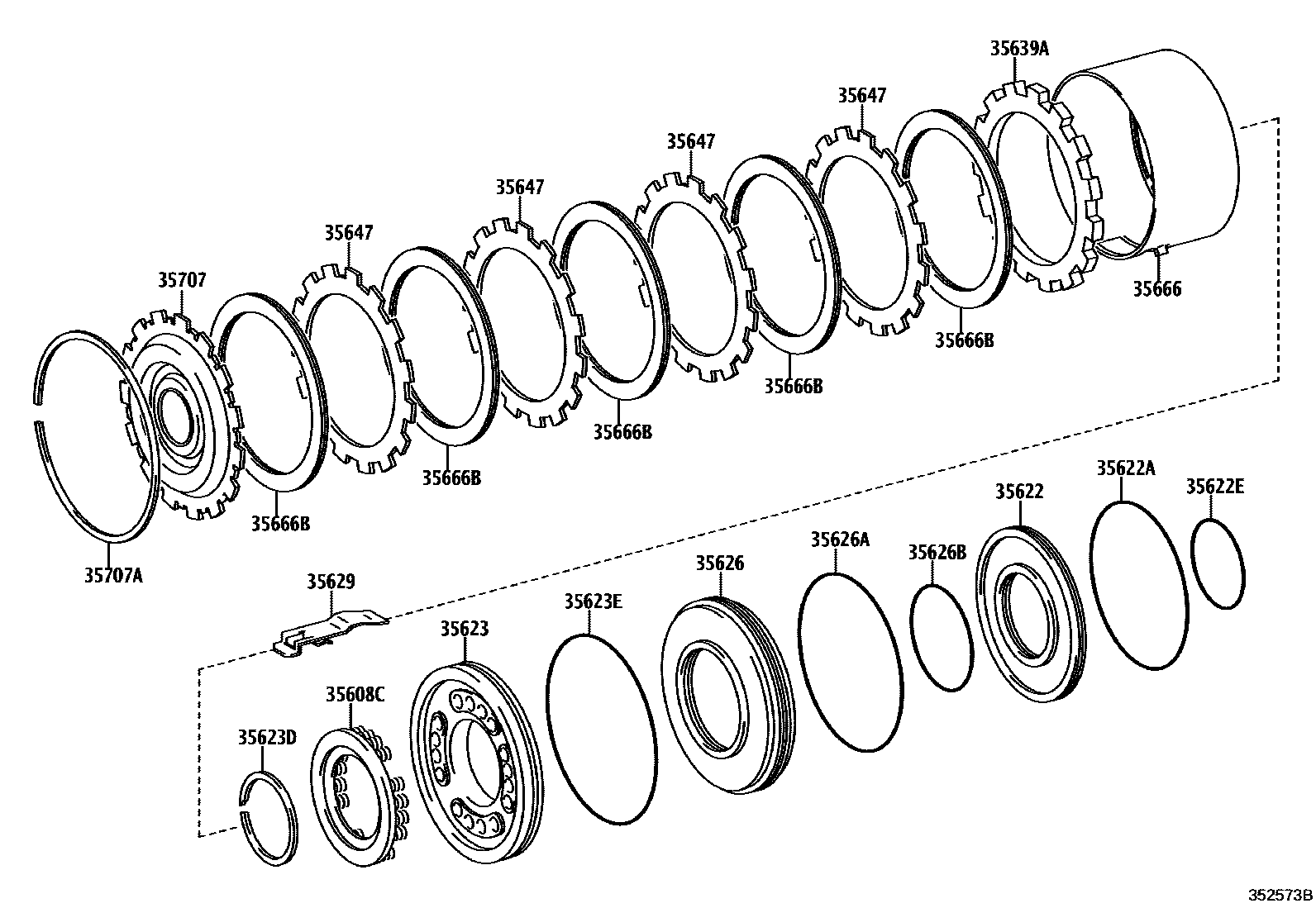

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1A42D,A42DE,A43D 0002 1A340E

35608CSPRING SUB-ASSY, NO.3 BRAKE PISTON RETURN

main35608-20020iGXS10200110-200210

35622PISTON, BRAKE, NO.2

main35622-22010iYXS10..CRW..4HC; YXS10..SED..4HC200108-200706

main35622-30010iGBS12200210

35622ARING (FOR BRAKE PISTON OUTER)

main90301-99084iGXS10200110-200210

main90301-99193iGXS10,LXS11,SXS11,YXS1#..ATM199512-199808

35622ERING, O (FOR BRAKE PISTON NO.2)

main90301-56007iGXS12200108-200708

main90301-57188iGXS10,LXS11,SXS11,YXS1#..ATM199512-199808

main90301-99084iTSS1#..4FC200709

35623PISTON, BRAKE, NO.3

main35623-22010iYXS10..CRW..4HC; YXS10..SED..4HC200108-200706

35623DRING, SHAFT SNAP (FOR BRAKE)

main90520-52262iYXS10..CRW..4HC; YXS10..SED..4HC200108-200706

35623ERING, O, NO.1 (FOR BRAKE PISTON)

main90301-99110iYXS10..4HC200709

main90301-99192iGXS10,LXS11,SXS11,YXS1#..ATM199512-199808

35626SLEEVE, BRAKE REACTION

main35626-22010iGXS12200108-200708

main35626-30020iTSS1#..4FC200709

35626ARING (FOR BRAKE REACTION SLEEVE OUTER)

main90301-99109iGXS10200110-200210

main90301-99200iGXS10,LXS11,SXS11,YXS1#..ATM199512-199808

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-67005iYXS10..CRW..4HC; YXS10..SED..4HC200108-200706

main90301-68191iGXS10,LXS11,SXS11,YXS1#..ATM199512-199808

35629SPRING (1ST & REVS BRAKE PLATE STOPPER)

main35629-22010iGXS10,LXS11,SXS11,YXS1#..ATM199512-200108

main35629-22020iGBS12200210

35639APLATE, CLUTCH PRESSURE (FOR BRAKE)

main35639-22010iYXS10..CRW..4HC; YXS10..SED..4HC200108-200706

main35639-22020iGXS10,SXS11,YXS1#..ATM200001-200108

main35639-22030iGXS10200110-200210

main35639-22040iYXS10..CRW..4HC; YXS10..SED..4HC200108-200706

main35639-22050iYXS10..CRW..4HC; YXS10..SED..4HC200108-200706

main35639-22060iYXS10..CRW..4HC; YXS10..SED..4HC200108-200706

35647PLATE, CLUTCH, NO.2

main35647-22010×4iGXS10,LXS11,SXS11,YXS1#..ATM199512-200108

35666TUBE, BRAKE APPLY

main35666-26010iGXS10,SXS11..ATM199512-200108

main35666-30010iYXS10..4HC200709

35666BDISC, CLUTCH (FOR BRAKE)

main35633-22060×5iGXS12200108-200708

main35633-30060×5iYXS10..CRW..4HC; YXS10..SED..4HC200108-200706

35707RACE SUB-ASSY, 1 WAY CLUTCH, INNER

main35707-30020iSXS11..4FC199604-200108

main35707-30030iYXS10..CRW..4HC; YXS10..SED..4HC200108-200706

35707ARING, HOLE SNAP (FOR 1 WAY CLUTCH INNER RACE)

main90521-99140iGXS10,LXS11,SXS11,YXS1#..ATM199512-200108

17 parts on this diagram · 2 diagrams in section
