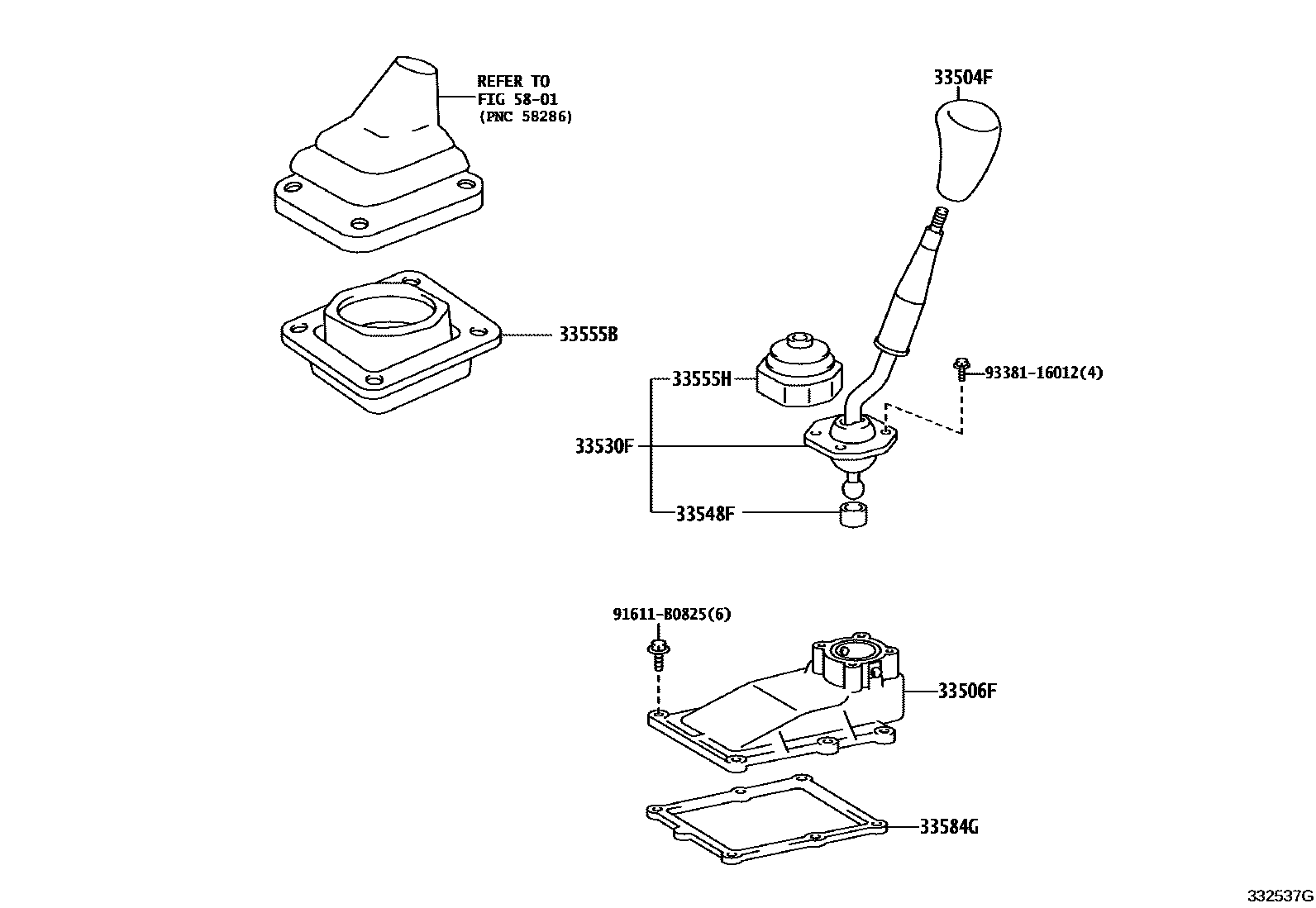

SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12180-B7iTSS11,13..5F200709

DK.GRAY,TRIM1#

main33504-12180-P0iLXS11,SXS11,YXS11..5F199512-200108

SHADOW GRAY,TRIM1#

main33542-30240-B0iGXS10,LXS11,SXS11,YXS1#..4FC199512-200108

SHAD0W GRAY,TRIM1#

main33542-30240-B3iTSS1#..4FC200709

DK.GRAY,TRIM1#

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33570-24020iSXS11..5F199604-200108

main33570-43010iLXS11,YXS11..5F199512-200108

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-43010iLXS11,SXS11,YXS11..5F199512-200108

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-22020iLXS11,SXS11,YXS11..5F199512-200108

33555BOOT, SHIFT LEVER

main33555-22080iGXS10,LXS11,SXS11,YXS1#..4FC199512-200108

33555BBOOT, SHIFT & SELECT LEVER

main33555-22090iLXS11,SXS11,YXS11..5F199512-200108

33555HBOOT, SHIFT & SELECT LEVER, NO.4

main33555-22050iLXS11,SXS11,YXS11..5F199512-200108

33584GGASKET, NO.2 (FOR FLOOR SHIFT)

main33584-30010iLXS11,SXS11,YXS11..5F199512-200108

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

91611B0825

main91611-B0825

9338116012

main93381-16012

11 parts on this diagram · 2 diagrams in section
