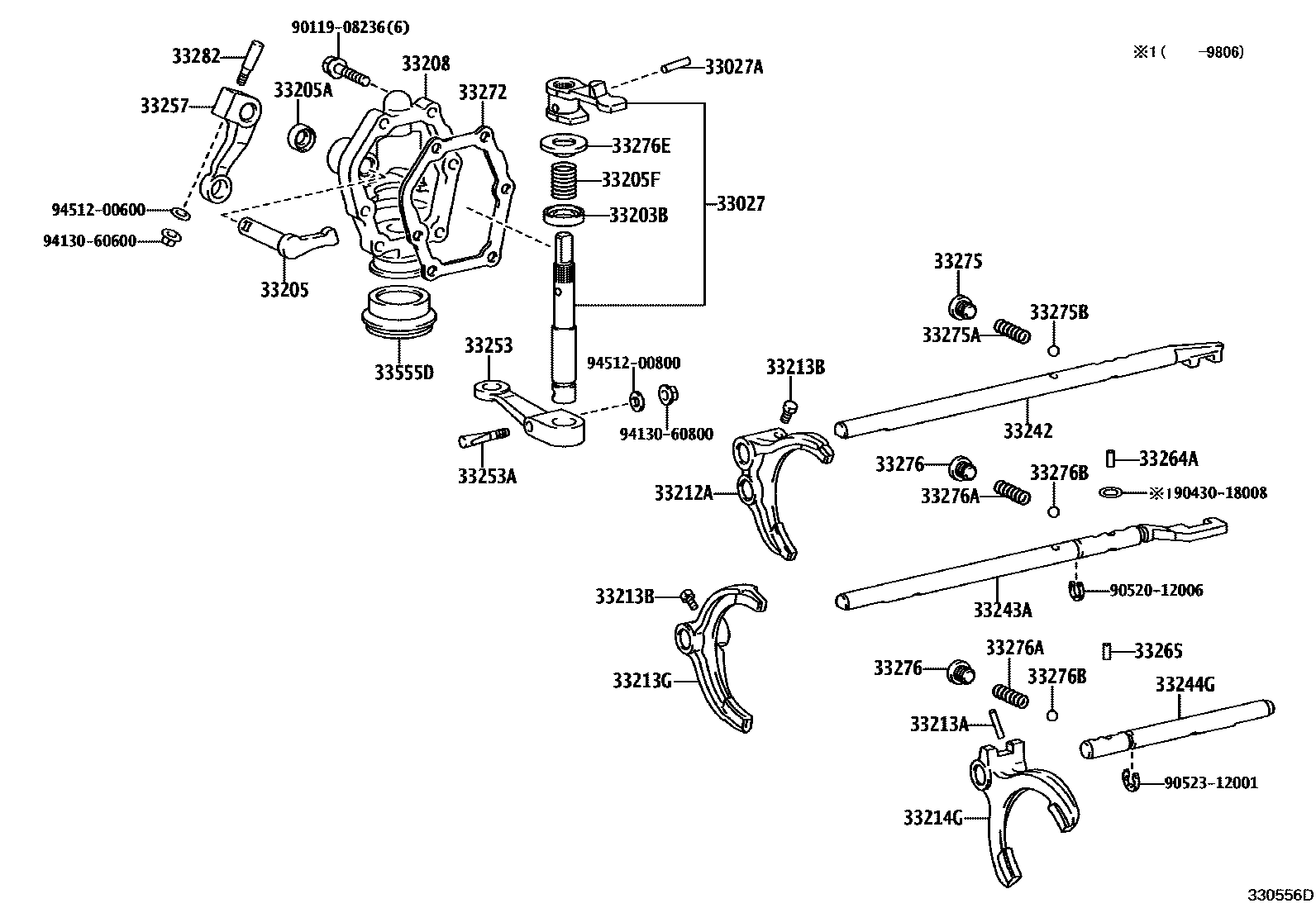

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33027SHAFT SET, SHIFT LEVER
33027APIN, SLOTTED SPRING(FOR SHIFT LEVER SHAFT SET)
33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)
33205SHAFT SUB-ASSY, SELECT LEVER
33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)
33205FSPRING, COMPRESSION(FOR SELECT RETURN)
33208HOUSING SUB-ASSY, SHIFT LEVER SHAFT
33212AFORK, GEAR SHIFT, NO.1
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33213BBOLT(FOR SHIFT FORK SET)
33213GFORK, GEAR SHIFT, NO.2
33214GFORK, GEAR SHIFT, NO.3
33242SHAFT, GEAR SHIFT FORK, NO.1
33243ASHAFT, GEAR SHIFT FORK, NO.2
33244GSHAFT, GEAR SHIFT FORK, NO.3
33253LEVER, SHIFT OUTER, NO.1
33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)
33257LEVER, SELECT OUTER
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
33264APLUG, INTERLOCK HOLE
33265PIN, SHIFT INTERLOCK, NO.2
33272GASKET, SHIFT LEVER SHAFT HOUSING
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
33275BBALL, SHAFT DETENT
33276SEAT, SHIFT DETENT BALL SPRING, NO.2
33276ASPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)
33276BBALL, SHIFT DETENT, NO.2
33276ESEAT, SELECT SPRING, NO.1
33282PIN, LEVER LOCK, NO.2
33555DBOOT, SHIFT LEVER
9011908236
main90119-08236
9043018008
main90430-18008
9052012006
main90520-12006
9052312001
main90523-12001
9413060600
main94130-60600
9413060800
main94130-60800
9451200600
main94512-00600
9451200800
main94512-00800
39 parts on this diagram · 2 diagrams in section
