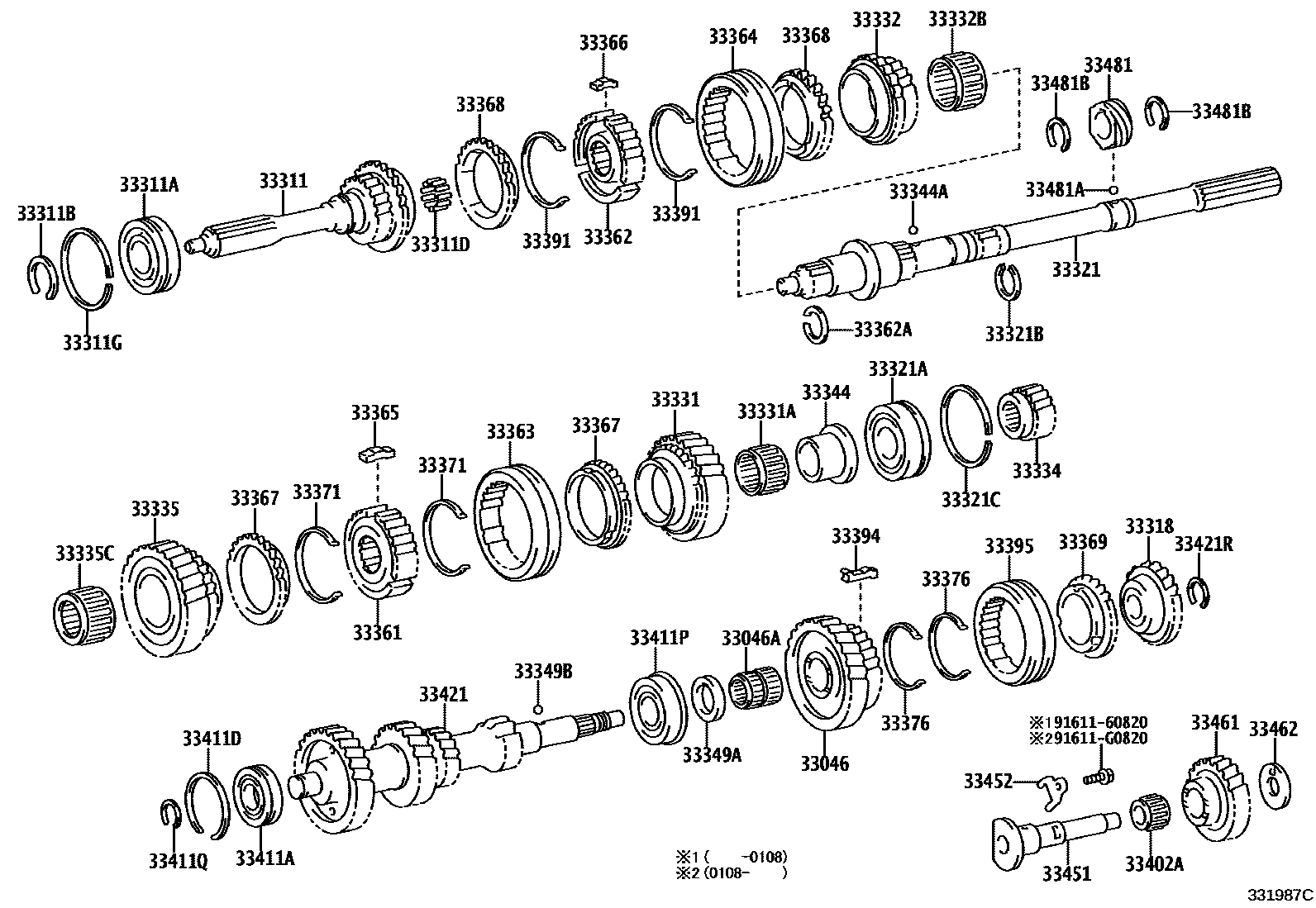

TRANSMISSION GEAR (MTM)
33046GEAR SUB-ASSY, COUNTERSHAFT, 4TH
33046ABEARING(FOR COUNTERSHAFT 4TH GEAR)
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
33318PIECE, GEAR SPLINE, NO.5
33321SHAFT, OUTPUT
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
33331ABEARING (FOR REVERSE GEAR)
33332GEAR, 2ND
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33334GEAR, 4TH
33335GEAR, 1ST
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33344BUSH, REVERSE GEAR
33344AKEY OR BALL, REVERSE GEAR BEARING
33349AWASHER, 4TH GEAR
33349BBALL (FOR 4TH GEAR WASHER)
33361HUB, TRANSMISSION CLUTCH, NO.1
33362HUB, TRANSMISSION CLUTCH, NO.2
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
33363SLEEVE, TRANSMISSION HUB, NO.1
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
33368RING, SYNCHRONIZER, NO.2
33369RING, SYNCHRONIZER, NO.3
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33376SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB)
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33394KEY, SYNCHROMESH SHIFTING, NO.3
33395SLEEVE, TRANSMISSION HUB, NO.3
33402GEAR SUB-ASSY, REVERSE IDLER
33402ABUSH OR BEARING (FOR REVERSE IDLER GEAR)
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
33411PBEARING, COUNTERSHAFT CENTER
33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2
33421GEAR, COUNTER
33421RRING, SHAFT SNAP(FOR COUNTER GEAR REAR)
33451SHAFT, REVERSE IDLER GEAR
33452STOPPER, REVERSE IDLER GEAR SHAFT
33461GEAR, REVERSE IDLER
33462WASHER, REVERSE IDLER THRUST
33481GEAR, SPEEDOMETER DRIVE (MTM)
33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
9161160820
main91611-60820
91611G0820
main91611-G0820
55 parts on this diagram · 2 diagrams in section
