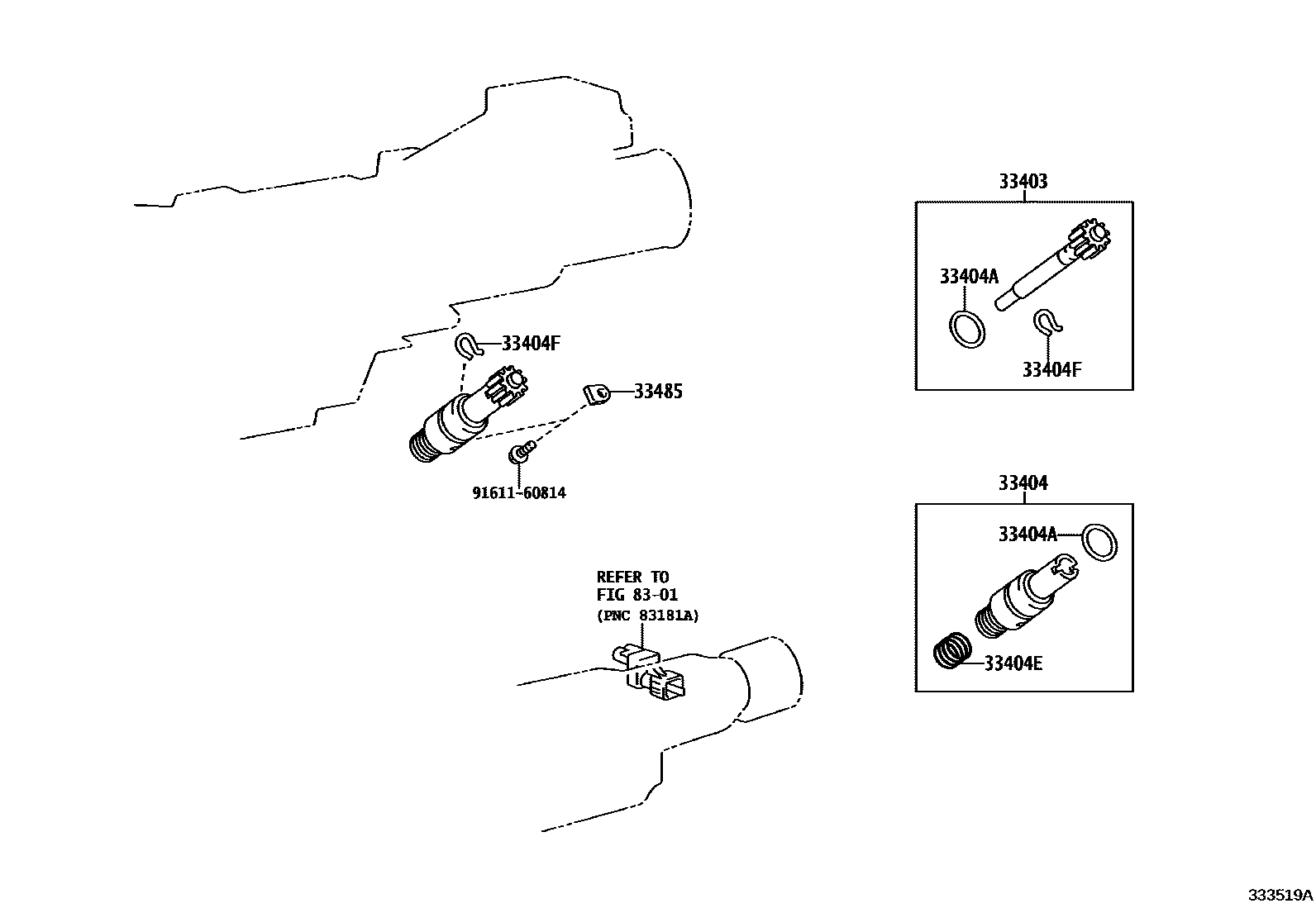

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1N45 0002 1W56 0003 1W55,W56 0004 1W56

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-29115iYXS11..5F199512-200108

main33403-29315iLXS11,SXS11..5F199604-200108

main33403-39415iTSS13..5F200108-201310

main33403-39425iTSS11..5F..DLX200808-201310

main33482-39025iYXS10..4H199512-200706

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-22010iYXS11..5F199512-200108

main33404-35010iYXS10..4H199512-200706

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iYXS10..4H199512-200706

main96711-24030iLXS11,SXS11,YXS11..5F199512-200108

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iYXS1#..MTM199512-200706

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iLXS11,SXS11,YXS1#..MTM199512-201310

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020iYXS1#..MTM199512-200706

8301

9161160814

main91611-60814

8 parts on this diagram · 4 diagrams in section
