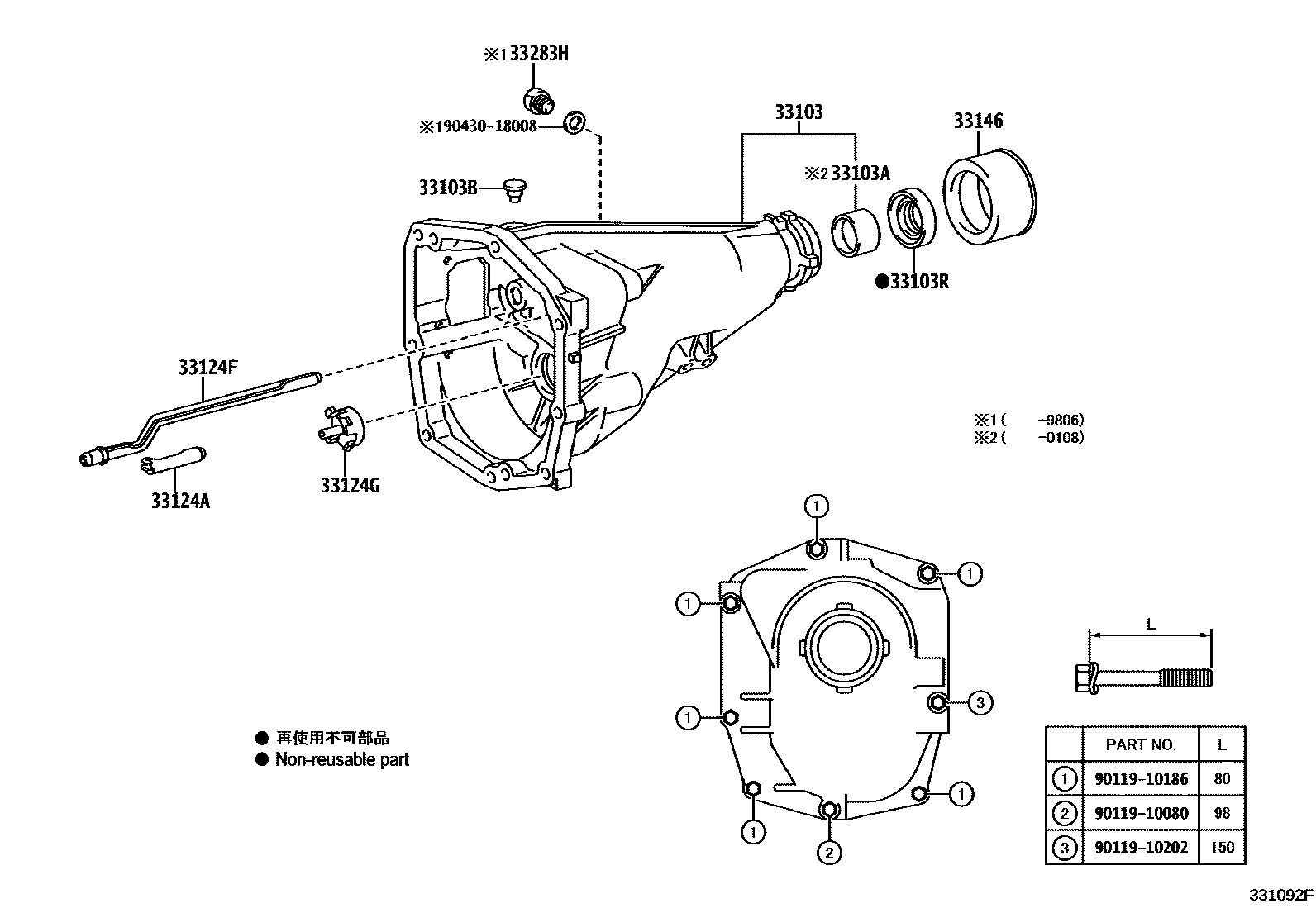

EXTENSION HOUSING (MTM)

0001 1N45 0002 1W55,W56

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-30172iYXS10..4H199512-200108

main33103-30201iLXS11,SXS11,YXS11..5F199512-200108

33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90999-73105iTSS11,13..5F200709

main90999-73120iYXS10..4H199512-200108

33103BPLUG, BREATHER(FOR TRANSMISSION EXTENSION HOUSING)

main90930-03080iYXS10..4H199512-200108

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-38032iLXS11,SXS11,YXS1#..MTM199512-200108

33124ACLAMP(FOR TRANSMISSION OIL RECEIVER PIPE)

main90463-08036iYXS10..4H199512-200108

33124FPIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)

main33106-30040iSXS13..5F200108-200707

main33124-30061iYXS10..4H199512-200108

33124GPIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING)

main33124-30080iYXS10..4H199512-200108

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30020iLXS11,SXS11,YXS1#..MTM199512-200108

33283HPLUG, W/HEAD STRAIGHT SCREW

main90341-10065iLXS11,SXS11,YXS11..5F199512-200108

main90341-18006iYXS10..4H199512-199806

9011910080

main90119-10080

9011910186

main90119-10186

9011910202

main90119-10202

9043018008

main90430-18008

13 parts on this diagram · 2 diagrams in section
