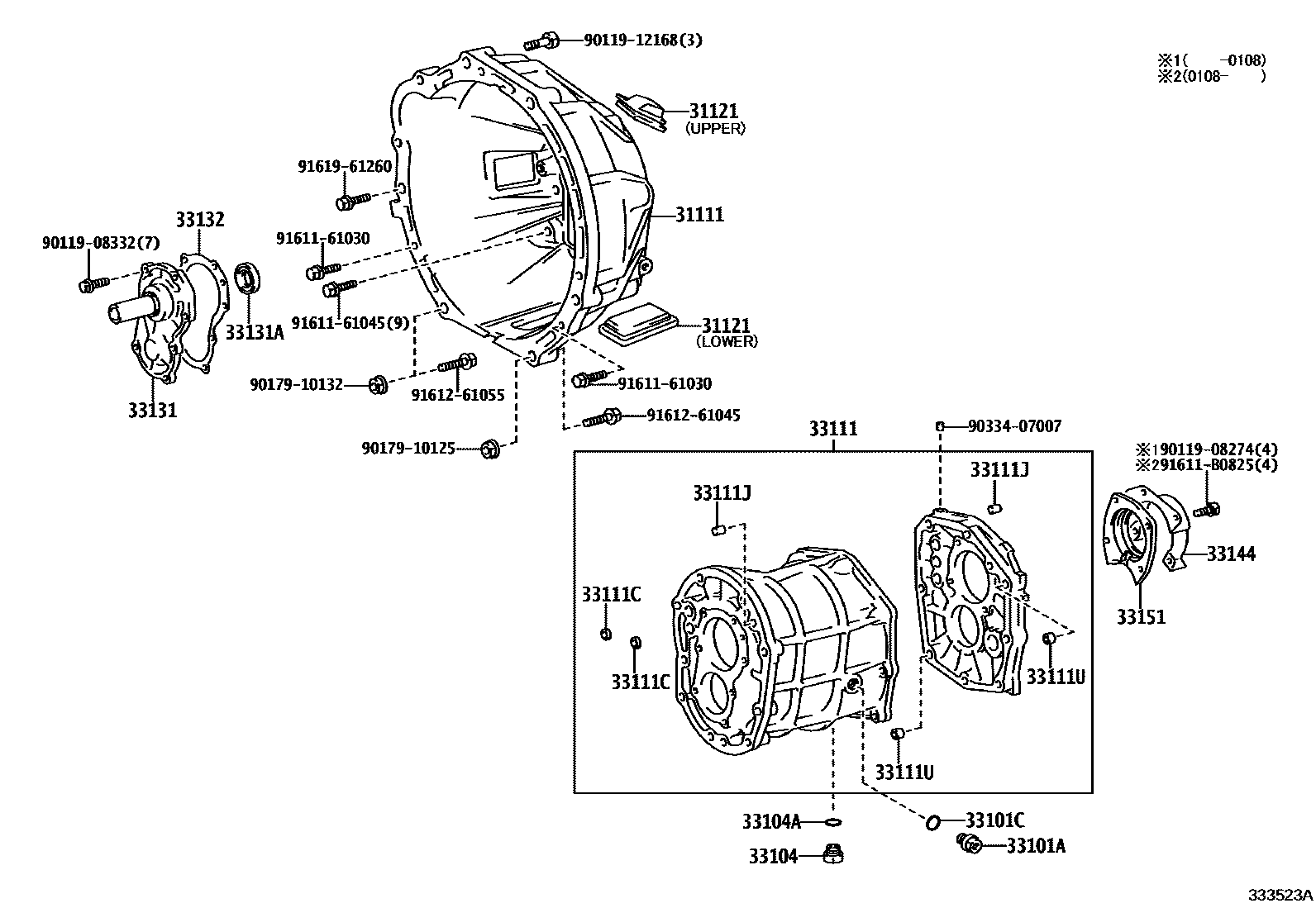

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1N45 0002 1W56 0003 1W56 0004 1W55,W56 0005 1W56

31111HOUSING, CLUTCH

main31111-20230iYXS1#..MTM199512-200108

main31111-22114iLXS11..5F199604-199908

main31111-22120iSXS11..5F199604-200108

main31111-43010iTSS11,13..5F200709

31121COVER, CLUTCH HOUSING, NO.1

main31121-20020iYXS1#..MTM199512-200108

main31121-26020iTSS11,13..5F200709

main31121-35020iYXS10..4H200108-200706

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iLXS11,SXS11,YXS1#..MTM199512-200108

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iTSS11,13..5F200709

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iLXS11,SXS11,YXS11..5F199512-200108

main90341-18057iYXS10..4H200108-200706

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iLXS11,SXS11,YXS1#..MTM199512-200108

33111CASE, MANUAL TRANSMISSION

main33101-30063iYXS10..4H199512-200108

main33101-30071iYXS11..5F200108

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004×2iYXS10..4H200108-200706

main96411-41800×2iLXS11,SXS11,YXS11..5F199512-200108

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002×4iLXS11,SXS11,YXS11..5F199512-200108

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-15001×2iYXS10..4H200108-200706

33131RETAINER, BEARING, FRONT(MTM)

main33131-30062iYXS10..4H200108-200706

main33131-30080iLXS11,SXS11,YXS11..5F199512-200108

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30014iLXS11,SXS11,YXS1#..MTM199512-200108

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-30061iYXS10..4H199512-200108

33144DEFLECTOR, EXTENSION HOUSING OIL(MTM)

main33144-30022iYXS10..4H199512-199602

main33144-43010iYXS10..4H200108-200706

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33107-30020iLXS11,SXS11,YXS11..5F199512-200010

main33151-30040iYXS10..4H200108-200706

main33151-30051iTSS11,13..5F200709

9011908274

main90119-08274

9011908332

main90119-08332

9011912168

main90119-12168

9017910125

main90179-10125

9017910132

main90179-10132

9033407007

main90334-07007

9161161030

main91611-61030

9161161045

main91611-61045

91611B0825

main91611-B0825

9161261045

main91612-61045

9161261055

main91612-61055

9161961260

main91619-61260

27 parts on this diagram · 5 diagrams in section
