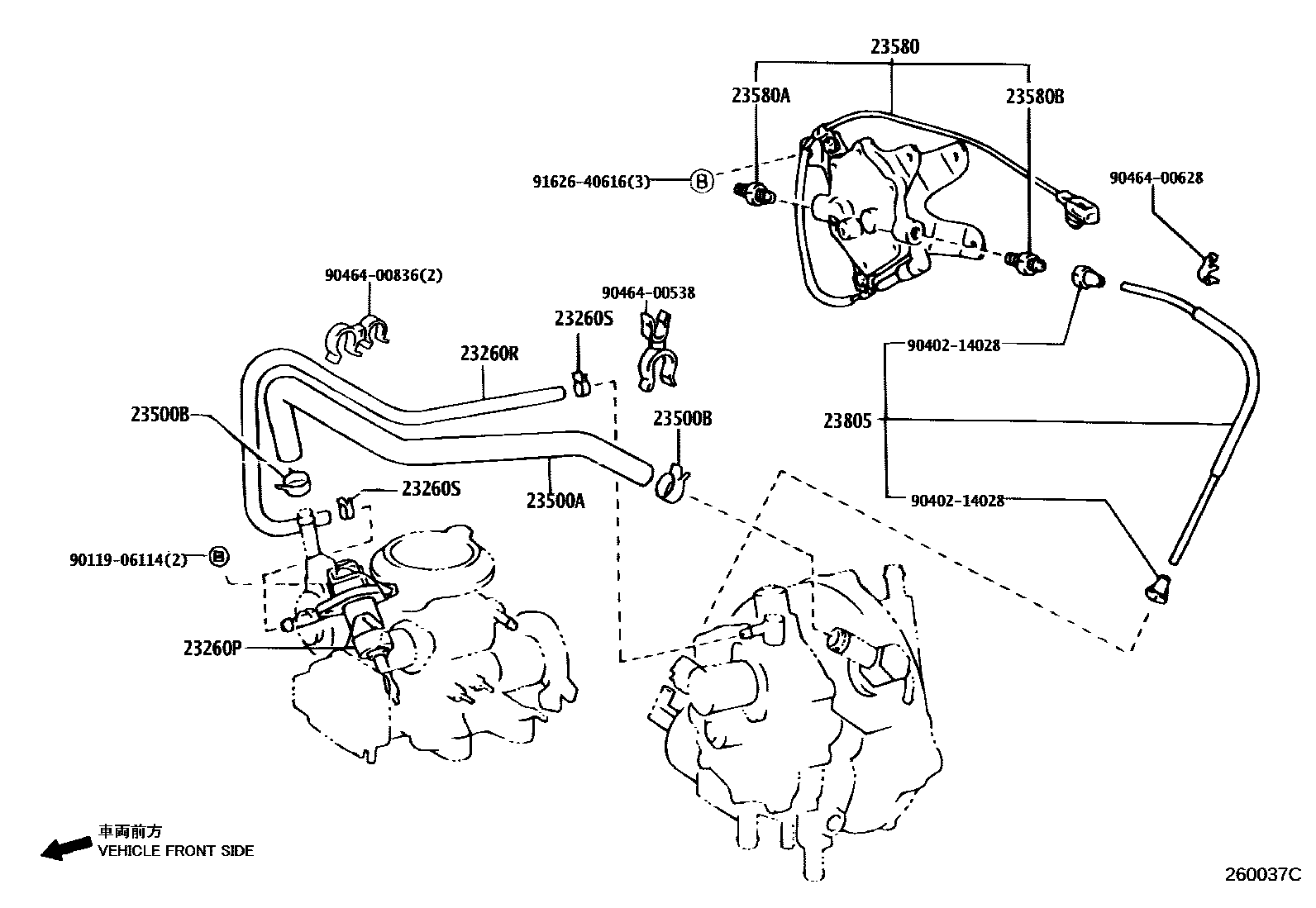

LPG(CARBURETOR) FUEL PIPE

0001 1 0002 1 0003 1

23260PINJECTOR ASSY, LPG

main23260-70100i1GGPE..GXS10200110-200210

main23260-73070i3YPE..YXS1#199512-200108

23260RHOSE, LPG INJECTOR

main23274-70040i1GGPE..GXS10199512-200102

main23274-70041i1GGPE..GXS10200110-200210

main23274-73060i3YPE..YXS1#200108-200210

main23274-73061i3YPE..YXS1#200210

23260SCLAMP OR CLIP(FOR LPG INJECTOR HOSE)

main90467-13001×2i1GGPE..GXS10199512-200102

main96135-51300×2i1GGPE..GXS10200110-200210

23500AHOSE, NO.1(FOR LPG REGULATOR TO LPG CARBURETOR)

main23271-70090i1GGPE..GXS10199512-200102

main23271-70091i1GGPE..GXS10200110-200210

main23271-73160i3YPE..YXS1#199512-200108

main23271-73161i3YPE..YXS1#200210

23500BCLAMP OR CLIP, NO.1(FOR LPG REGULATOR TO LPG CARBURETOR)

main90467-20005×2i1GGPE..GXS10199512-200102

main96134-41900×2i3YPE..YXS1#199512-200108

23580PREHEATER ASSY, LPG

main23580-70020i1GGPE..GXS10199801-200102

23580AUNION, FUEL PIPE(FOR INLET)

main90404-14064i1GGPE..GXS10199801-200102

23580BUNION, FUEL PIPE(FOR OUTLET)

main90404-14064i1GGPE..GXS10199801-200102

23805PIPE SUB-ASSY, LPG REGULATOR

main23805-70020i1GGPE..GXS10199801-200102

main23805-73120i3YPE..YXS1#200210

9011906114

main90119-06114

9040214028

main90402-14028

9046400538

main90464-00538

9046400628

main90464-00628

9046400836

main90464-00836

9162640616

main91626-40616

15 parts on this diagram · 3 diagrams in section
