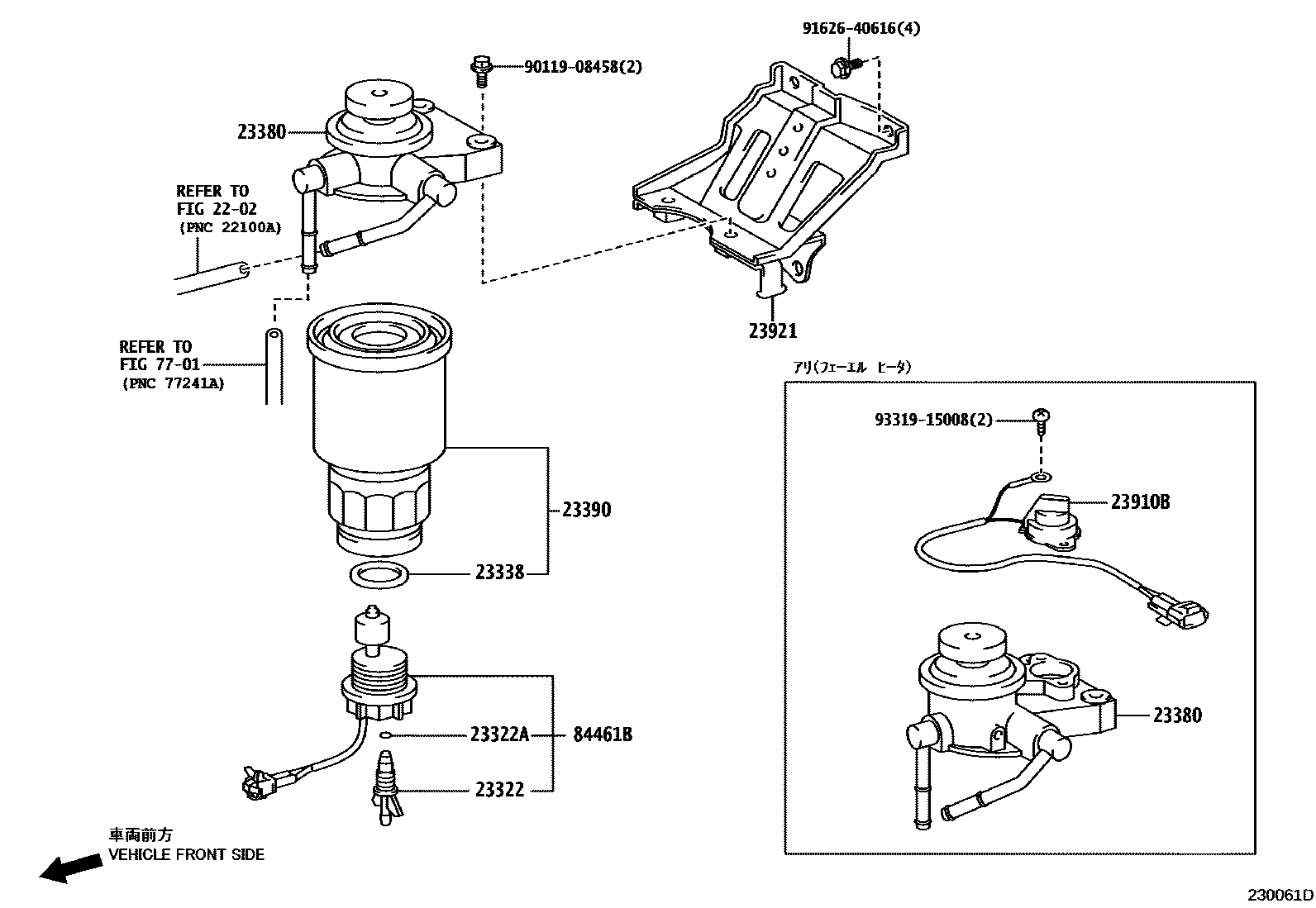

FUEL FILTER

2202INJECTION PUMP ASSEMBLY

→ Go to FIG 22-02

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64010i2LTE..LXS11199512-199908

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i2LTE..LXS11199512-199908

23338GASKET(FOR WARNING SWITCH)

main23344-64010i2LTE..LXS11199512-199908

23380CAP ASSY, FUEL FILTER

main23380-54861i2LTE..LXS11199512-199908

main23380-54880i2LTE..LXS11199512-199908

23390ELEMENT ASSY, FUEL FILTER

main23390-64450i2LTE..LXS11199512-199908

23910BHEATER ASSY, FUEL

main23910-54090i2LTE..LXS11199512-199908

23921SUPPORT, FUEL FILTER

main23921-54390i2LTE..LXS11199512-199908

7701FUEL TANK & TUBE

→ Go to FIG 77-01

84461BSWITCH, LEVEL WARNING

main84461-35060iLXS11199512-199908

9011908458

main90119-08458

9162640616

main91626-40616

9331915008

main93319-15008

13 parts on this diagram · 1 diagram in section
