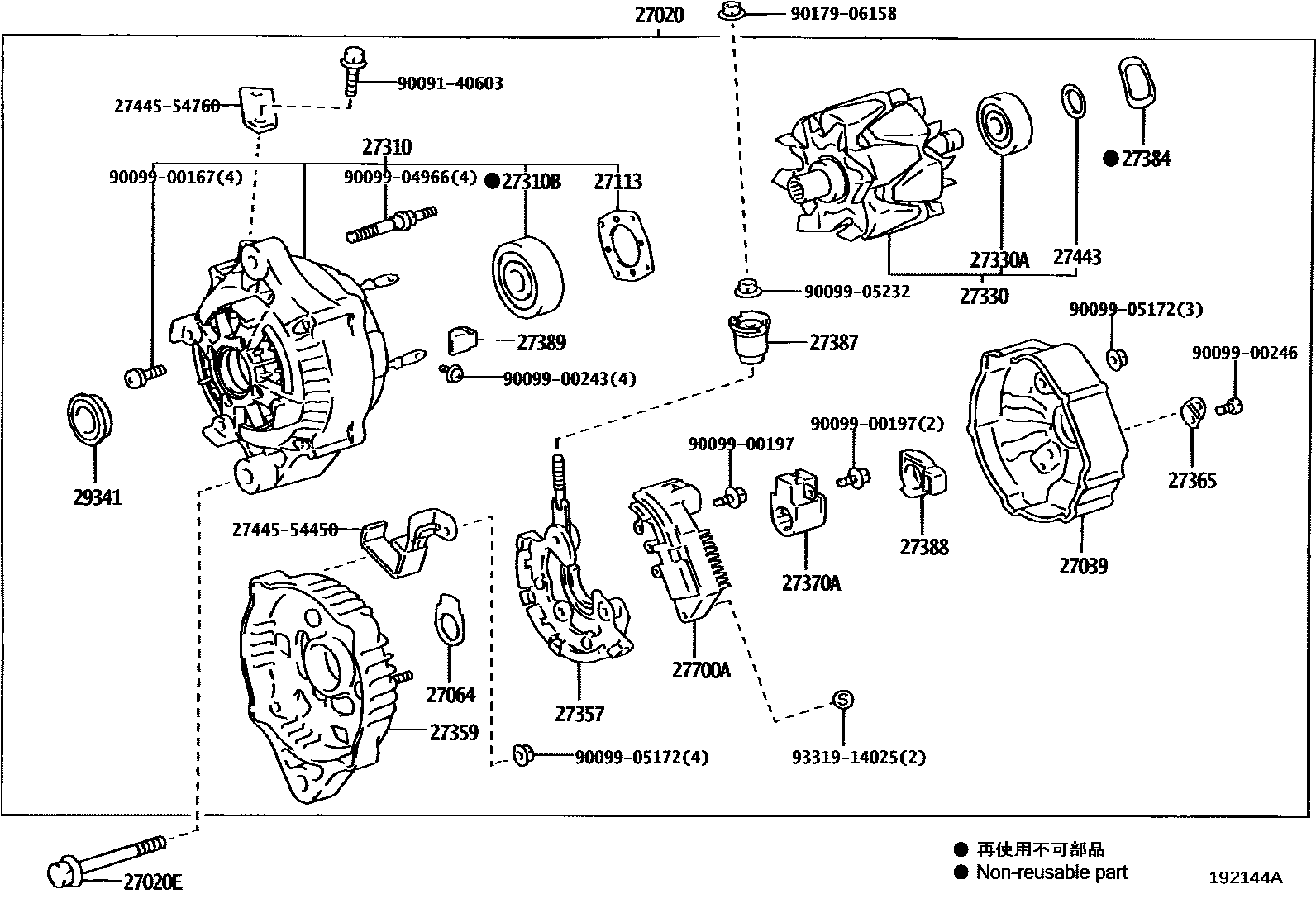

ALTERNATOR

0001 112V 70A 0002 112V 70A 0003 112V 60A 0004 112V 70A 0005 112V 70A 0006 112V 80A 0007 112V 80A 0008 112V 60A,12V 70A 0009 112V 70A,12V 80A 0010 112V 70A 0011 1 0012 112V 80A 0013 112V 80A 0015 112V 100A

27020ALTERNATOR ASSY

main27060-54170i2LTE..LXS11199512-199908

main27060-70400i1GGPE..GXS10199512-200210

sub27060-70390

main27060-70520i1GFE..GXS12200108-200708

sub27060-70510

main27060-73030i3YPE..YXS1#..MTM199512-200108

sub27060-73050

main27060-73040i3YPE..YXS1#..4FC,5F;3YPE..YXS10..CRW..4HC199512-200706

main27060-73050i3YPE..YXS10..4H200108-200706

main27060-74580i4SFE..SXS11..5F199604-200108

sub27060-74630

main27060-74590i4SFE..SXS11..4FC199604-200108

sub27060-74640

main27060-74640i3SFE..SXS13..4FC200108-200707

main27060-75310i1TRFE..TSS13200709-200910

sub27060-75311

main27060-75311i1TRFE..TSS13200911

main27060-75430i1TRFPE..TSS10,11..4FC200808-201310

sub27060-75431

main27060-75431i1TRFPE..TSS11..5F201310

main27060-75480i1TRFPE..TSS10,11..4FC201011-201310

sub27060-75481

main27060-75481i1TRFPE..TSS10,11..4FC201310

main27060-7A020i3SFE..SXS13..5F200108-200707

27020EBOLT(FOR ALTERNATOR)

main90105-10114i1GGPE..GXS10199512-200002

main90105-10249i4SFE..SXS11199604-200707

main90105-10287i2LTE..LXS11199512-199908

main90105-10498i1GGPE..GXS10200002-200210

main90105-10499i1GFE..GXS12200108-200708

main91552-81085i1TR#..TSS1#200709

27039COVER, ALTERNATOR REAR END

main27039-16380i4SFE,3YPE..SXS11,YXS1#..MTM199701-200108

main27039-55080i3YPE..YXS1#..MTM199701-200104

sub27039-70470

main27039-55080i3YPE..YXS11..SG;4SFE..SXS11..4FC;1GGPE,2LTE..GXS10,LXS11199512-199701

sub27039-70470

main27039-70470i4SFE,3YPE..SXS11,YXS1#..ATM200104-200108

main27039-70470i1GGPE..GXS10200110-200210

main27039-73020i4SFE..SXS11..5F;3YPE..YXS1#..DLX,STD199512-199701

sub27039-16380

main27039-75430i1TRFPE..TSS10,11..4FC201011

27064SEAL, ALTERNATOR PLATE

main27064-42010i4SFE..SXS11..4FC;1GGPE,2LTE,3YPE..GXS10,LXS11,YXS1#199512-200108

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-42010i3YPE..YXS1#..DLX,STD199512-200108

main27312-64130i2LTE..LXS11199512-199908

main27312-70200i4SFE,3YPE..SXS11,YXS1#..MTM199512-200108

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-43132i3YPE..YXS1#..DLX,STD199512-200108

main27310-54520i2LTE..LXS11199512-199908

main27310-70100i4SFE..SXS11..5F199604-200108

main27310-70350i1GGPE..GXS10199512-200102

main27310-73040i3YPE..YXS11..SG199512-200108

main27310-74120i4SFE..SXS11..4FC199604-200108

main27310-75430i1TRFPE..TSS10,11..4FC201011

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10165i2LTE..LXS11199512-199908

main90099-10177i3YPE..YXS1#..DLX,STD199512-200108

main90099-10178i4SFE..SXS11..5F199604-200108

main90099-10191i3YPE..YXS1#..DLX,STD199512-200108

sub90099-10230

main90099-10192i4SFE..SXS11..4FC199604-200108

main90099-10230i1TRFPE..TSS10,11..4FC201011

27330ROTOR ASSY, ALTERNATOR

main27330-16390i4SFE..SXS11..4FC200007-200707

main27330-30130i1TRFE..TSS13200904

main27330-43132i3YPE..YXS1#..MTM199701-200108

main27330-43132i3YPE..YXS1#..DLX,STD199512-199701

main27330-43200i3YPE..YXS10..SED..4HC199701-200706

main27330-43200i3YPE..YXS11..SG199512-199701

main27330-62220i1TRFE..TSS13200709-200904

sub27330-30130

main27330-64190i2LTE..LXS11199512-199908

main27330-64570i4SFE..SXS11..5F199604-200108

main27330-70360i1GGPE..GXS10199512-200102

sub27330-43200

main27330-70360i3YPE..YXS10..4H200108-200706

12V 60A

sub27330-43200

main27330-70470i1GFE..GXS12200108-200708

sub27330-74550

main27330-74760i3SFE..SXS13..5F200108-200707

sub27330-16390

main27330-75380i1TRFPE..TSS11..5F200808-201011

main27330-75430i1TRFPE..TSS10,11..4FC201011

main27330-76030i4SFE..SXS11..4FC199604-200007

sub27330-16390

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i1GGPE,2LTE,4SFE,3YPE..GXS10,LXS11,SXS11,YXS1#199512-200108

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-16310i3YPE..YXS10..4H200108-200706

12V 60A

main27357-16380i4SFE..SXS11..5F199701

12V 70A

main27357-16380i3YPE..YXS1#..DLX,STD199701-200108

main27357-22050i1TRFPE..TSS10,11..4FC200808-201011

main27357-22200i1TRFE..TSS13200709

main27357-55080i1GFE..GXS12200108-200708

main27357-55080i3YPE..YXS11..SG;4SFE..SXS11..4FC;1GGPE,2LTE..GXS10,LXS11199512-199701

main27357-55080i4SFE,3YPE..SXS11,YXS11..4FC;1GGPE,2LTE,3YPE..GXS10,LXS11,YXS10..4FC,4HC,5F199701-200706

12V 70A

main27357-63020i3YPE..YXS1#..DLX,STD199512-199701

main27357-63020i4SFE..SXS11..5F199604-199701

27359FRAME, ALTERNATOR RECTIFIER END

main27359-43161i4SFE..SXS11..5F199604-199701

main27359-43162i4SFE..SXS11..5F199701-200108

main27359-54420i2LTE..LXS11199512-199908

main27359-70350i1GGPE..GXS10199512-200102

main27359-72130i3YPE..YXS1#..DLX,STD199512-199601

sub27359-72131

sub27384-16380

main27359-72131i3YPE..YXS1#..DLX,STD199601-199701

main27359-72132i3YPE..YXS1#..MTM199701-200108

main27359-73040i3YPE..YXS11..SG199512-200108

main27359-74330i4SFE..SXS11..4FC199604-200108

27365PLATE, TERMINAL

main27365-55080i4SFE..SXS11..4FC;1GGPE,2LTE,3YPE..GXS10,LXS11,YXS1#199512-200108

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-23120i1TRFE..TSS13200709

main27370-75060i1GFE..GXS12200108-200708

main27370-75380i1TRFPE..TSS10,11..4FC200808-201011

main27370-75430i1TRFPE..TSS10,11..4FC201011

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-35060i4SFE..SXS11..5F199604-200108

main27370-70350i1GGPE,3YPE..GXS10,YXS11..SDX,SG199512-200706

main27370-70350i1GGPE..GXS10200108-200210

main27370-73020i3YPE..YXS1#..MTM199512-200108

main27370-75060i2LTE..LXS11;4SFE..SXS11..4FC199512-200707

27384WASHER

main27384-16380i4SFE,3YPE..SXS11,YXS1#..MTM199601-200108

main27384-50030i3YPE..YXS1#..DLX,STD199512-200108

main27384-50030i1TRFPE..TSS10,11..4FC201011

27387INSULATOR, TERMINAL

main27387-42020i3YPE..YXS11..SG;4SFE..SXS11..4FC;1GGPE,2LTE..GXS10,LXS11199512-199708

main27387-42020i4SFE,3YPE..SXS11,YXS11..4FC;1GGPE,2LTE,3YPE..GXS10,LXS11,YXS10..4FC,4HC,5F199701-199708

main27387-42021i4SFE..SXS11..4FC;1GGPE,2LTE,3YPE..GXS10,LXS11,YXS1#199708-200108

main27387-42021i2LTE..LXS11199705-199708

main27387-70170i4SFE..SXS11..5F;3YPE..YXS1#..DLX,STD199512-199709

main27387-70171i4SFE,3YPE..SXS11,YXS1#..MTM199709-200108

27388COVER, ALTERNATOR BRUSH

main27388-42010i4SFE..SXS11..4FC;1GGPE,2LTE,3YPE..GXS10,LXS11,YXS1#199512-200108

27389INSULATOR, TERMINAL

main27389-42010i3YPE..YXS11..SG;4SFE..SXS11..4FC;1GGPE,2LTE..GXS10,LXS11199512-200108

main27389-63020i4SFE..SXS11..5F;3YPE..YXS1#..DLX,STD199512-200108

27443COVER, ALTERNATOR BEARING

main27443-63020i1GGPE,2LTE,4SFE,3YPE..GXS10,LXS11,SXS11,YXS1#199512-200108

27700AREGULATOR ASSY, GENERATOR

main27700-21050i1TRFE..TSS13200911

main27700-46050i1GFE..GXS12200108-200708

main27700-50030i2LTE..LXS11199608-199908

main27700-54060i2LTE..LXS11199512-199608

sub27700-50030

main27700-70040i3YPE..YXS1#..4FC,5F;3YPE..YXS10..CRW..4HC199512-200706

main27700-74040i3SFE..SXS13199604-200707

main27700-75030i1TRFE..TSS13200709-200911

main27700-75040i1TRFPE..TSS10,11..4FC200808-201310

sub27700-75041

main27700-75041i1TRFPE..TSS11..5F201310

29341SEAL, ALTERNATOR OIL

main29341-64130i2LTE..LXS11199512-199908

2744554450

main27445-54450

2744554760

main27445-54760

9009140603

main90091-40603

9009900167

main90099-00167

9009900197

main90099-00197

9009900243

main90099-00243

9009900246

main90099-00246

9009904966

main90099-04966

9009905172

main90099-05172

9009905232

main90099-05232

9017906158

main90179-06158

9331914025

main93319-14025

33 parts on this diagram · 14 diagrams in section
