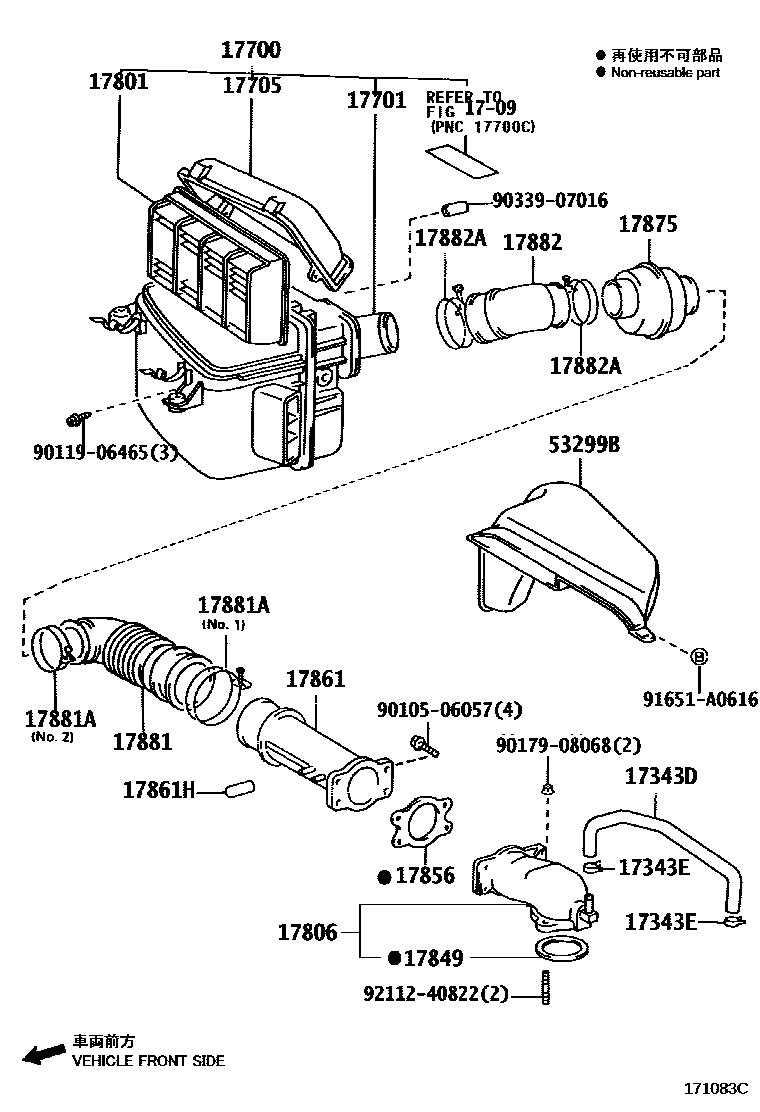

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

1709

17343DHOSE, AIR, NO.3

main17343-70110i1GGPE..GXS10199512-199901

sub17343-70111

main17343-70111i1GGPE..GXS10199901-200102

main17343-70120i1GGPE..GXS10200110-200210

main17343-73020i3YPE..YXS1#..MTM199512-200108

main17343-73030i3YPE..YXS1#..MTM200108

17343ECLAMP, HOSE(FOR AIR HOSE, NO.3)

main90467-15012i3YPE..YXS1#..MTM199512-200108

main90467-17126i1GGPE..GXS10199512-200210

17700CLEANER ASSY, AIR

main17700-54870i2LTE..LXS11199512-199908

main17700-70180i1GFE..GXS12200108

main17700-70210i1GFE..GBS12200210

main17700-73350i1GGPE..GXS10199512-200011

sub17700-73351

main17700-73351i1GGPE..GXS10200011-200210

main17700-74570i4SFE..SXS11199604-200707

main17700-75500i1TRFE..TSS13200709

main17700-75510i1TRFPE..TSS10,11200808

17701CASE SUB-ASSY, AIR CLEANER

main17701-73210i1GGPE..GXS10199512-200210

main17701-75390i1TRFPE..TSS10,11200808

17705CAP SUB-ASSY, AIR CLEANER

main17705-54350i2LTE..LXS11199512-199908

main17705-70080i1GFE..GXS12200108

main17705-73150i1TRFE..TSS13199512-201111

main17705-75350i1TRFPE..TSS10,11201112

sub17705-73150

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-46060i4SFE..SXS11199604-200707

main17801-46090i1GFE..GBS12200210

main17801-54090i2LTE..LXS11199512-199908

main17801-70040i1GGPE..GXS10199512-200210

main17801-70050i1GFE..GXS12200108

17806PIPE SUB-ASSY, AIR CLEANER, NO.2

main17806-70040i1GGPE..GXS10199512-200102

main17806-70050i1GGPE..GXS10200110-200210

17849GASKET, INTAKE AIR CONNECTOR

main17849-70030i1GGPE..GXS10199512-200210

main17849-73020i3YPE..YXS1#199512-200108

17856GASKET, AIR INTAKE FLANGE

main17856-88300i1GGPE..GXS10199512-200210

17861CONNECTOR, INTAKE AIR

main17861-70060i1GGPE..GXS10199512-200102

sub17861-70100

sub90339-11002

main17861-70100i1GGPE..GXS10200110-200210

main17861-73100i3YPE..YXS1#199512-200108

sub17861-73120

sub90339-03005

main17861-73120i3YPE..YXS1#200108

main17861-75140i1TRFPE..TSS10,11200808

main17861-75150i1TRFE..TSS13200709-200907

sub17861-75151

main17861-75151i1TRFE..TSS13200908

17861HPLUG(FOR INTAKE AIR CONNECTOR)

main90339-11002i1GGPE..GXS10199512-200102

17875PIPE, INTAKE AIR CONNECTOR

main17875-70170i1GGPE..GXS10199512-200210

17881HOSE, AIR CLEANER, NO.1

main17881-54590i2LTE..LXS11199512-199908

main17881-70260i1GGPE..GXS10199512-200102

main17881-70270i1GGPE..GXS10200110-200210

main17881-73160i3YPE..YXS1#199512-200108

main17881-75240i1TR#..TSS1#200709

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10710i3YPE..YXS1#199512-200108

main96111-10710i4SFE..SXS11199604-200707

main96111-10780i2LTE..LXS11199512-199908

main96111-10800i1GFE..GBS12200210

main96111-10800i1TR#..TSS1#200709

main96111-10830i1GGPE..GXS10199512-200210

main96111-10850i3YPE..YXS1#199512-200108

main96111-10900i1TR#..TSS1#200709

main96111-10950i1GGPE..GXS10199512-200210

17882HOSE, AIR CLEANER, NO.2

main17882-54470i2LTE..LXS11199512-199908

main17882-70190i1GGPE..GXS10199512-200102

main17882-70200i1GGPE..GXS10200110-200210

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10600i2LTE..LXS11199512-199908

main96111-10830i1GGPE..GXS10199512-200210

AIR CONECTOR SIDE

main96111-10880i1GGPE..GXS10199512-200210

AIR CLEANER SIDE

53299BDUCT, COOL AIR INTAKE

main53299-43010iSXS13199512-200707

main53299-43020iGXS10200110-200210

9010506057

main90105-06057

9011906465

main90119-06465

9017908068

main90179-08068

9033907016

main90339-07016

91651A0616

main91651-A0616

9211240822

main92112-40822

24 parts on this diagram · 9 diagrams in section
