V-BELT

0001 1 0002 1

1601WATER PUMP

→ Go to FIG 16-01

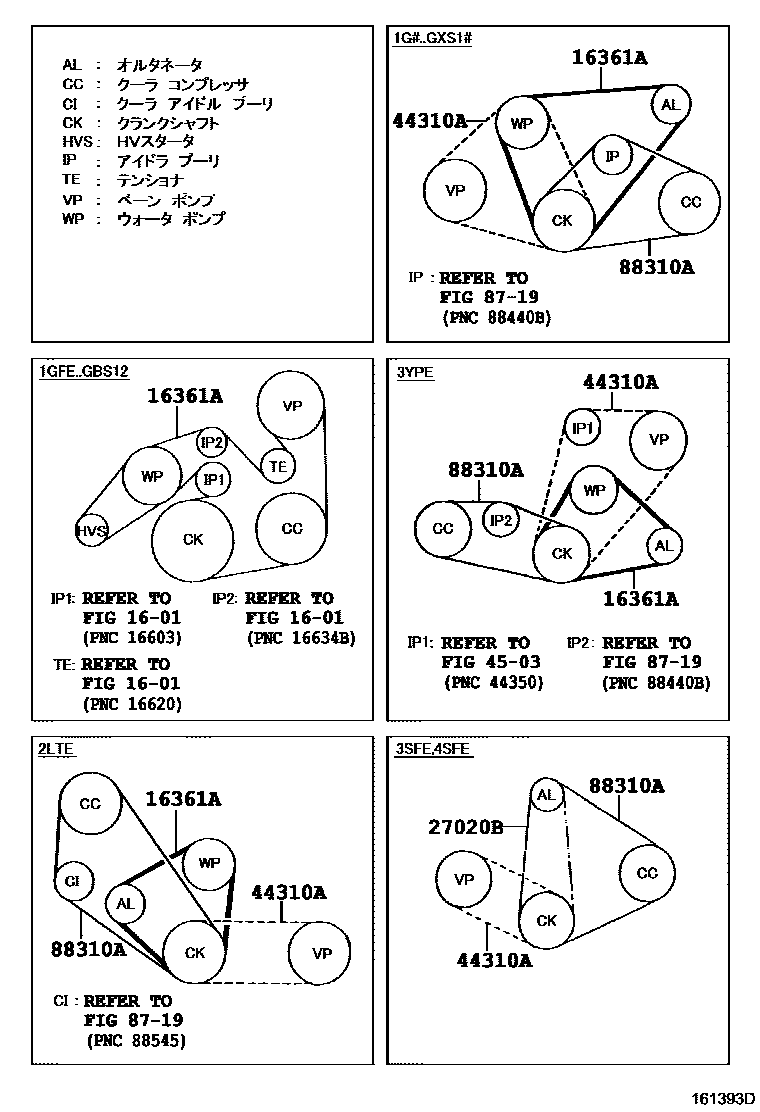

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02211i2LTE..LXS11199512-199908

main90916-02343i1GGPE..GXS10199512-200102

main90916-02471i1GFE..GXS12200108-200708

main90916-02552i1GFE..GBS12200210

main90916-02636i1TRFPE..TSS10,11..4FC200709-201011

main90916-02699i1TRFPE..TSS10,11..4FC201011-201112

main90916-02707i1TRFE..TSS13;1TRFPE..TSS11..5F201111-201603

main90916-02710i1TRFPE..TSS10,11..4FC201201-201603

main90916-02746i1TRFE..TSS13;1TRFPE..TSS11..5F201604-201701

main90916-02747i1TRFPE..TSS10,11..4FC201604-201701

main90916-02756i1TRFE..TSS13;1TRFPE..TSS11..5F201702

main90916-02757i1TRFPE..TSS10,11..4FC201702

main99364-81070i1GFE..GXS12200108-200111

main99365-80820i3YPE..YXS10..4H;3YPE..YXS10..SED..4HC200108-200706

27020BBELT, V(FOR ALTERNATOR)

main90916-02355i4SFE..SXS11199604-200108

44310ABELT, V(FOR VANE PUMP)

main90916-02460iGXS10200110-200210

main99332-10840iLXS11199512-199908

main99363-00890iGXS12200108-200708

main99363-00950iGXS10199512-199801

main99363-20750iSXS11199604-200108

main99363-21050iYXS10..4H;YXS10..SED..4HC; YXS10..CRW..4HC200108-200706

main99363-30750iSXS13200108-200707

4503POWER STEERING TUBE

→ Go to FIG 45-03

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99322-01230iLXS11199512-199908

main99364-00850iGXS10199512-200102

main99364-20820iYXS10..4HC200709

main99364-30820iYXS10..4H;YXS10..SED..4HC; YXS10..CRW..4HC200108-200706

main99364-90820iYXS10..4H;YXS10..SED..4HC; YXS10..CRW..4HC200108-200706

main99364-90880iGXS12200108-200708

main99365-81110iSXS11199604-200108

main99365-91110iSXS13200108-200707

7 parts on this diagram · 2 diagrams in section
