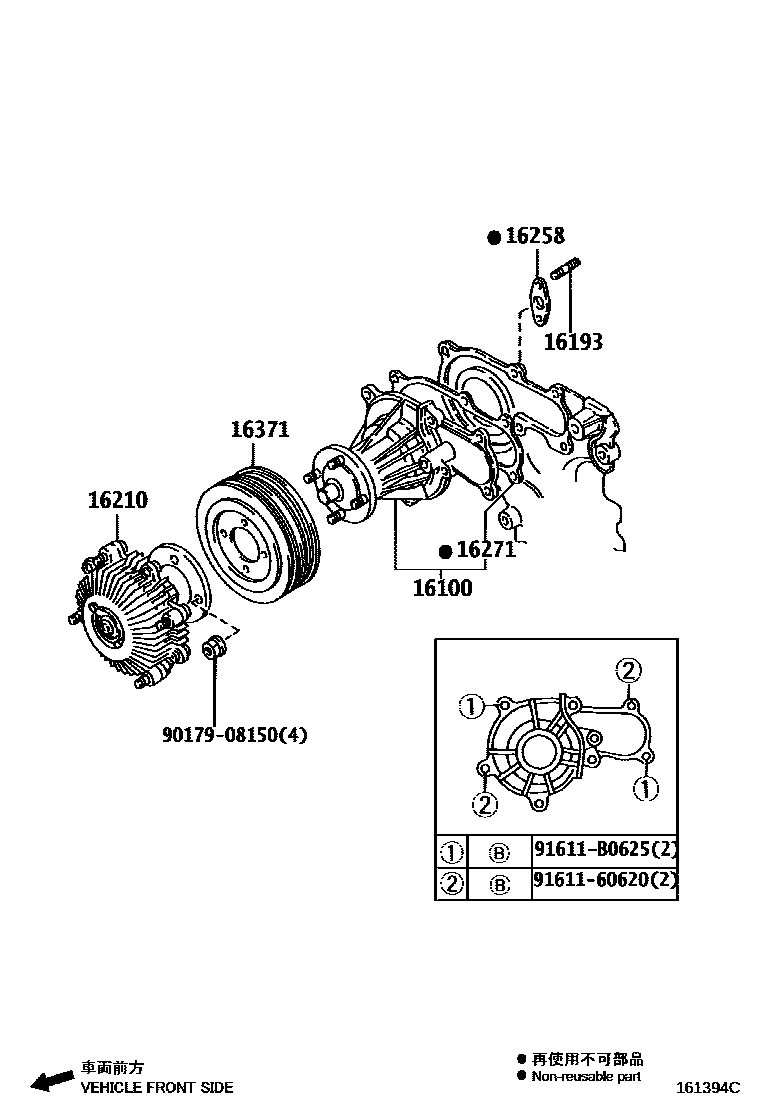

WATER PUMP

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1 0008 1

16100PUMP ASSY, ENGINE WATER

main16100-59155i2LTE..LXS11199512-199701

main16100-59255i2LTE..LXS11199701-199908

main16100-79036i3YPE..YXS1#199603-199611

main16100-79037i3YPE..YXS1#199611-200108

main16100-79145i1GGPE..GXS10199512-200102

main16100-79146i1GGPE..GXS10200110-200210

main16100-79185i4SFE..SXS11199604-200108

main16100-79275i3YPE..YXS1#199512-199603

main16100-79285i1GFE..GXS12200108-200708

main16100-79295i1GFE..GBS12200210

main16100-79445i1TR#..TSS1#200709

16193BOLT, STUD(FOR WATER PUMP COVER)

main16192-70010×2i1GGPE..GXS10199512-200102

main90029-01500×2i3SFE..SXS13200108

16210COUPLING ASSY, FLUID

main16210-54130i2LTE..LXS11199512-199908

main16210-70080i1GGPE..GXS10199512-200102

main16210-70090i1GFE..GXS12200108

main16210-70100i1GGPE..GXS10200110-200210

main16210-73040i3YPE..YXS1#199512-200108

main16210-73041i3YPE..YXS1#200108

main16210-75111i1TR#..TSS1#200709

16258GASKET(FOR HEATER RETURN)

main16258-70020i1GGPE..GXS10199512-200102

main16258-74021i4SFE..SXS11199604-200108

16271GASKET, WATER PUMP

main16124-70041i1GGPE..GXS10199512-200102

main16271-54020i2LTE..LXS11199512-199908

16371PULLEY, FAN

main16371-54030i2LTE..LXS11199512-199908

main16371-70060i1GFE..GXS12200108

main16371-70070i1GGPE..GXS10200110-200210

main16371-73011i3YPE..YXS1#199512-200108

main16371-75040i1TR#..TSS1#200709

9017908150

main90179-08150

9161160620

main91611-60620

91611B0625

main91611-B0625

9 parts on this diagram · 7 diagrams in section
