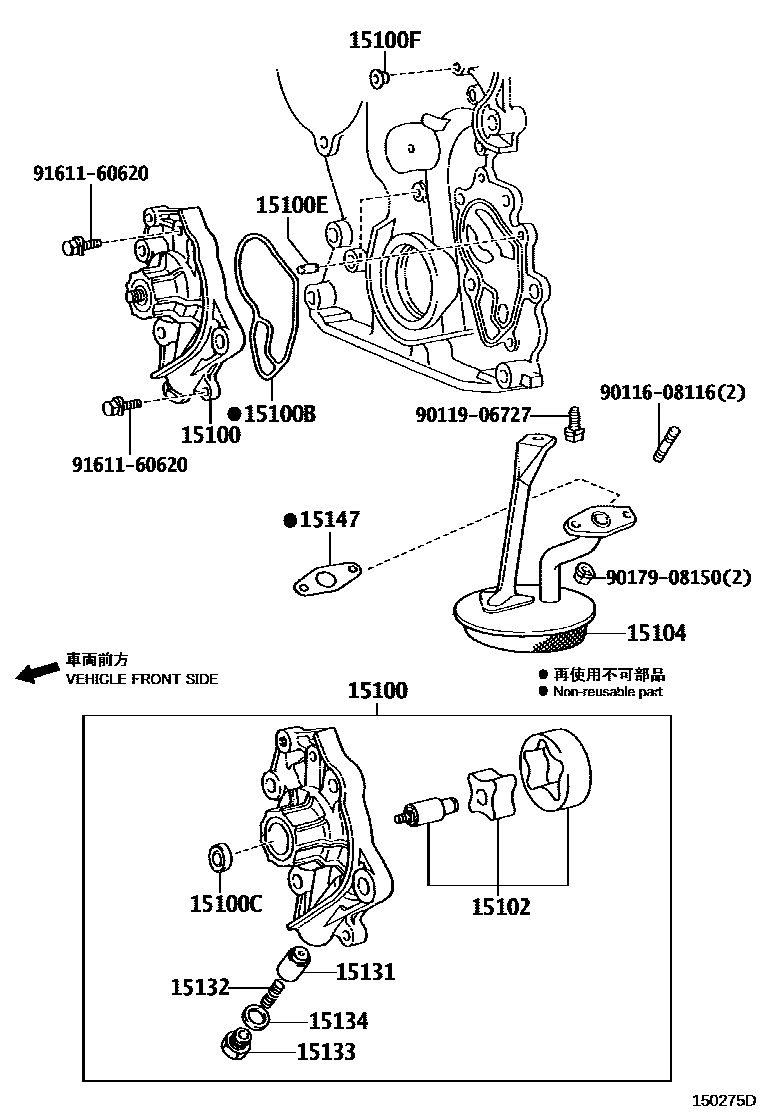

Toyota CROWN COMFORT/SED — ENGINE OIL PUMP
15100PUMP ASSY, OIL
15100BRING, O(FOR OIL PUMP)
15100CSEAL(FOR OIL PUMP)
15100EPIN, STRAIGHT (FOR OIL PUMP SET)
15100FBUSH (FOR OIL PUMP)
15104STRAINER SUB-ASSY, OIL
9011608116
9011906727
9017908150
9161160620
16 parts on this diagram · 8 diagrams in section
ENGINE OIL PUMP for Toyota CROWN COMFORT/SED
This section contains 51 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota CROWN COMFORT/SED. Key components include: TIMING GEAR COVER & REAR END PLATE, PLATE, TIMING BELT, COVER SUB-ASSY, OIL PUMP, PUMP ASSY, OIL, RING, O(FOR OIL PUMP).
