CAMSHAFT & VALVE

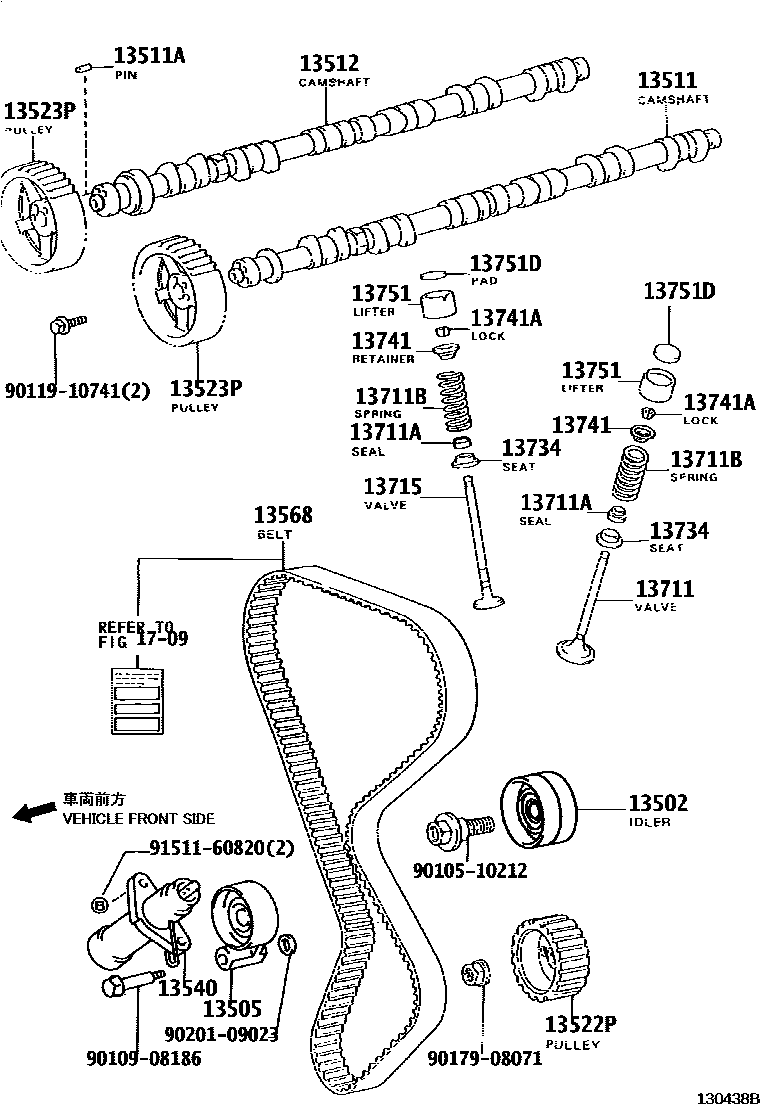

Parts diagram
13502IDLER SUB-ASSY, TIMING BELT, NO.2
main13503-54030i199512-199908
main13503-63011i199604-200108
main13503-70080i200108
main13503-88301i199512-200210
13505IDLER SUB-ASSY, TIMING BELT, NO.1
main13505-54021i199512-199908
main13505-70050i199512-200210
main13505-74011i199604-200108
13511CAMSHAFT
main13501-54060i199512-199908
main13501-70090i199512-200210
main13501-70110i200108
main13501-74050i199604-200108
main13501-75060i200709-200810
sub13501-75061
main13501-75060i200810-201403
sub13501-75061
main13501-75061i201403
sub13501-75071
main13501-75070i200810-201401
sub13501-75071
main13501-75071i201401
main13501-75080i200808
sub13501-75090
main13511-73030i199512-199702
sub13511-73031
main13511-73031i199702-199810
sub13511-73903
main13511-73903i199810-200108
13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)
main90250-05021i199512-200210
13512CAMSHAFT, NO.2
main13502-70051i199512-200210
main13502-70060i200108
main13502-74030i199604-200108
main13502-75050i200709-200810
sub13502-75060
main13502-75050i200810
sub13502-75060
main13502-75060i200810
13522PPULLEY, PUMP DRIVE SHAFT
main13524-70050i200108
main13524-88300i200110-200210
sub13524-88301
main13524-88301i199512-200102
13523GEAR OR SPROCKET, CAMSHAFT TIMING
main13522-33010i199512-200108
main13523-75030i200709
13523PPULLEY, CAMSHAFT TIMING
main13523-54040i199512-199908
main13523-70050i200108
main13523-74020i199604-200108
main13523-74040i199801-199902
main13523-74050i199609-199801
sub13523-74020
main13523-88300i200110-200210
sub13523-88301
main13523-88301i199512-200102
13540TENSIONER ASSY, CHAIN, NO.1
main13540-25010i199512-200108
main13540-70010i199512-200210
main13540-70020i200108-200507
sub13540-70021
main13540-70021i200507
main13540-75030i200709-201411
sub13540-75041
main13540-75031i200808
main13540-75040i201411-201507
sub13540-75041
main13540-75041i201508
13568BELT, TIMING
main13568-59066i199512-199908
sub13568-59067
sub13568-59106
main13568-79015i199512-200210
main13568-79095i199604-199704
sub13568-09041
sub90507-17003
main13568-79225i199704-200707
sub13568-09041
sub90507-17003
main13568-79235i200108
13711VALVE, INTAKE
main13711-54020i199512-199908
main13711-70060i200108
main13711-71010i199512-200707
main13711-73010i200707
main13711-74080i199604-200108
main13711-75100i200709
main13711-75120i200808-201303
main13711-88341i199512-200210
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
main90913-02053i199512-199601
sub90913-02110
main90913-02066i199604-199703
main90913-02085i199512-200102
EXHAUST SIDE
sub90913-02122
main90913-02088i199703-200010
main90913-02090i199604-200108
main90913-02092i200108
sub90913-02128
main90913-02093i200108
main90913-02094i199609-200108
main90913-02098i199512-199609
sub90913-02094
main90913-02101i200709
main90913-02103i200010-200108
main90913-02106i199512-200112
INTAKE SIDE
sub90913-02123
main90913-02110i199601-199705
main90913-02112i200709
main90913-02117i199705-199908
main90913-02122i200110-200210
main90913-02123i200112-200210
13711BSPRING, COMPRESSION(FOR INNER)
main90501-28021i199512-199908
EXHAUST SIDE
main90501-28021i200110-200210
main90501-28029i200108
main90501-30032i201405-201801
main90501-31021i199908-200102
EXHAUST SIDE
main90501-32022i199512-200102
INTAKE SIDE
main90501-32022i200110-200210
main90501-32055i200709-201405
main90501-32064i200808-201404
sub90501-34020
main90501-34020i201405-201801
main90501-46001i199512-200108
main90504-37002i199604-200108
main90504-49001i199512-199908
13715VALVE, EXHAUST
main13715-54040i199512-199908
main13715-70061i199512-199908
main13715-70070i200108
main13715-70090i199908-200102
main13715-70100i200110-200210
main13715-72020i199512-200108
main13715-74080i199604-200108
main13715-75090i200709
main13715-75120i200808
13734SEAT, VALVE SPRING
main13734-20010i200108
main13734-62020i200709
main90201-16023i199512-200210
13741RETAINER, VALVE SPRING
main13741-20021i200709-201405
main13741-20021i201303
main13741-22021i200108
main13741-36010i201405
main13741-50020i199604-200108
main13741-54020i199512-199908
main13741-63010i199512-200108
main13741-75010i201303
main13741-75010i200808-201303
main13741-88300i199512-200210
13741ALOCK, VALVE SPRING RETAINER
main90913-03014i199512-200108
main90913-03021i199604-200108
main90913-03021i199512-200102
INTAKE SIDE
main90913-03021i200110-200210
main90913-03028i200709
main90913-03028i201303
main90913-03029i199512-200102
EXHAUST SIDE
main90913-03029i200110-200210
main90913-03031i200108
main90913-03035i200808-201303
main90913-03035i201303
13751LIFTER, VALVE
main13750-0W010i199512-200108
main13751-46030i200108
main13751-46040i200108
main13751-46050i200108
main13751-46060i200108
main13751-46070i200108
main13751-46080i200108
main13751-46090i200108
main13751-46100i200108
main13751-46110i200108
main13751-46120i200108
main13751-46130i200108
main13751-46140i200108
main13751-46150i200108
main13751-46160i200108
main13751-46170i200108
main13751-46180i200108
main13751-46190i200108
main13751-46200i200108
main13751-46210i200108
main13751-46220i200108
main13751-46230i200108
main13751-46240i200108
main13751-46250i200108
main13751-46260i200108
main13751-46270i200108
main13751-46280i200108
main13751-46290i200108
main13751-46300i200108
main13751-46310i200108
main13751-46320i200108
main13751-46330i200108
main13751-46340i200108
main13751-46350i200108
main13751-46360i200108
main13751-46370i200108
main13751-54010i199512-199908
main13751-70030i199512-200210
main13751-74020i199604-200108
13751DPAD, VALVE ADJUSTING
main13753-70320i199512-200210
main13753-70330i199512-200210
main13753-70340i199512-200210
main13753-70350i199512-200210
main13753-70360i199512-200210
main13753-70370i199512-200210
main13753-70380i199512-200210
main13753-70390i199512-200210
main13753-70400i199512-200210
main13753-70410i199512-200210
main13753-70420i199512-200210
main13753-70430i199512-200210
main13753-70440i199512-200210
main13753-70450i199512-200210
main13753-70460i199512-200210
main13753-70470i199512-200210
main13753-70480i199512-200210
main13753-70490i199512-200210
main13753-70500i199512-200210
main13753-70510i199512-200210
main13753-70520i199512-200210
main13753-70530i199512-200210
main13753-70540i199512-200210
main13753-70550i199512-200210
main13753-70560i199512-200210
main13753-70570i199512-200210
main13753-70580i199512-200210
main13753-70590i199512-200210
main13753-70600i199512-200210
main13753-70610i199512-200210
main13753-70620i199512-200210
main13753-70630i199512-200210
main13753-70640i199512-200210
1709
9010510212
main90105-10212
9010908186
main90109-08186
9011910741
main90119-10741
9017908071
main90179-08071
9020109023
main90201-09023
9151160820
main91511-60820

26 parts on this diagram · 7 diagrams in section
