ENGINE OVERHAUL GASKET KIT

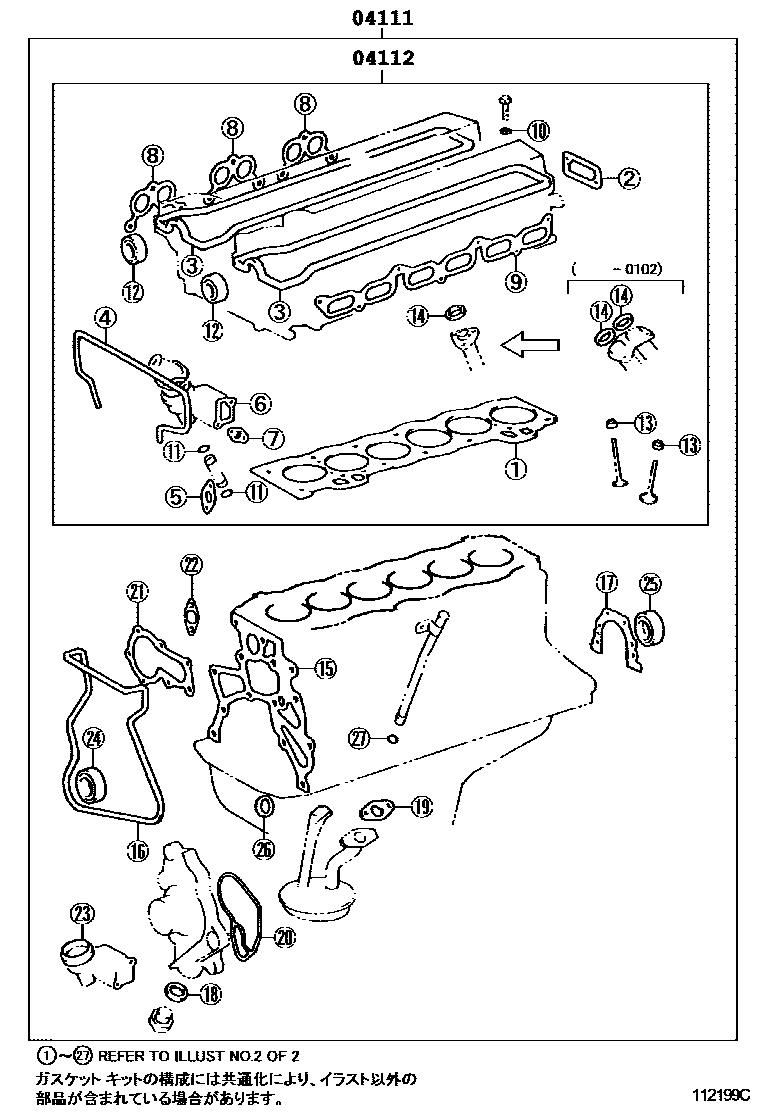

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-54103i199512-199705

main04111-54104i199705-199908

main04111-70082i199512-200102

main04111-70110i200108-200208

main04111-70130i200110-200208

main04111-70140i200210-200303

main04111-70141i200303-200311

main04111-70150i200208-200303

main04111-70151i200303-200311

main04111-70170i200208-200210

main04111-70220i200311-200608

main04111-70221i200608-200808

main04111-70230i200311-200608

main04111-70241i200608-200708

main04111-73130i199512-199901

main04111-73131i199901-200009

main04111-73132i200009-200108

main04111-73180i200312-200703

main04111-73181i200703-200808

main04111-74592i200108-200311

main04111-74630i199604-200108

main04111-74870i200311-200707

main04111-75A80i201406-201408

main04111-75A81i201408-201411

main04111-75A82i201411-201701

main04111-75A83i201701

main04111-75A90i201406-201408

main04111-75A91i201408-201411

main04111-75A92i201411-201701

main04111-75A93i201701

main04111-7A010i200709-200710

main04111-7A011i200710-200808

main04111-7A012i200808-200911

main04111-7A013i200911-201011

main04111-7A014i201011-201102

main04111-7A015i201102-201105

main04111-7A016i201105-201107

main04111-7A017i201107-201112

main04111-7A018i201112-201406

main04111-7A020i200808-200911

main04111-7A021i200911-201011

main04111-7A022i201011-201108

main04111-7A023i201108-201406

04112GASKET KIT, ENGINE VALVE GRIND

main04112-54101i199512-199705

main04112-54102i199705-199908

main04112-70080i199512-200102

main04112-70110i200108-200208

main04112-70120i200110-200207

main04112-70130i200208-200303

main04112-70131i200303-200311

main04112-70140i200208-200210

main04112-70150i200210-200303

main04112-70151i200303-200311

main04112-70200i200311-200608

main04112-70201i200608-200808

main04112-70210i200311-200608

main04112-70221i200608-200708

main04112-73130i200108-200312

main04112-73140i200312-200808

main04112-74562i200108-200311

main04112-74590i199604-200108

main04112-74870i200311-200707

main04112-75890i200808-200911

main04112-75891i200911-201011

main04112-75892i201011

main04112-7A010i200709-200710

main04112-7A011i200710-200808

main04112-7A012i200808-200911

main04112-7A013i200911-201102

main04112-7A014i201102-201105

main04112-7A015i201105

2 parts on this diagram · 20 diagrams in section
