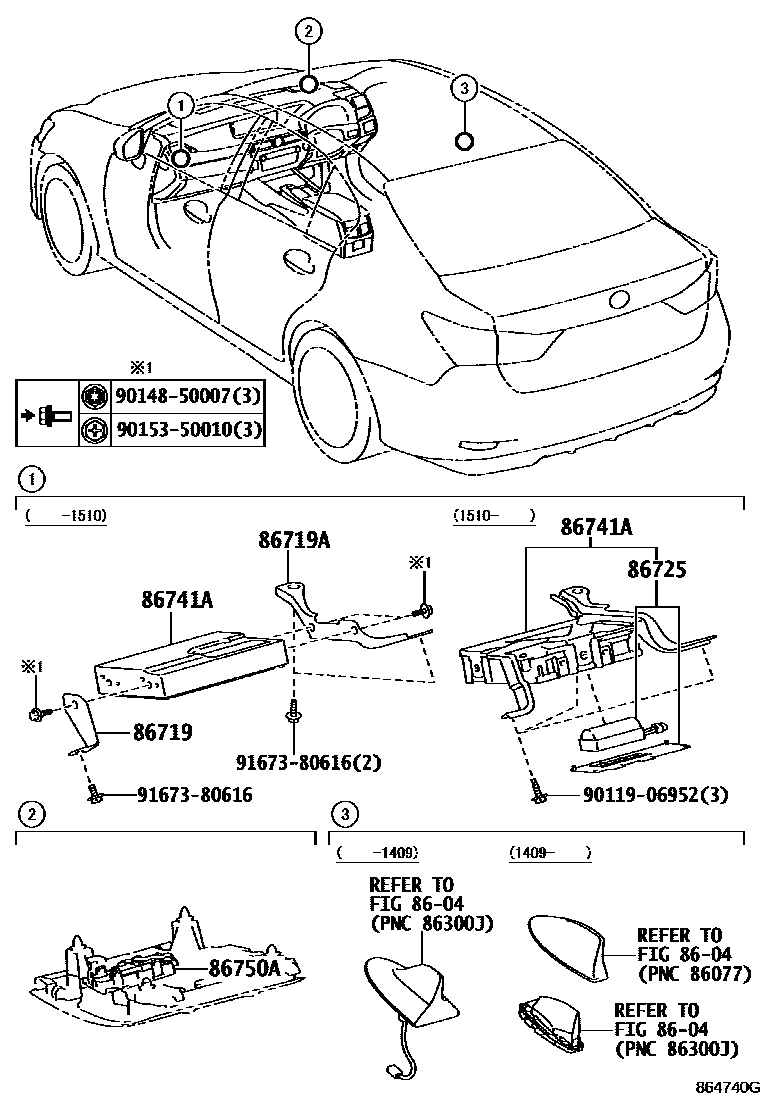

TELEPHONE & MAYDAY

8604ANTENNA

→ Go to FIG 86-04

86719BRACKET, TELEPHONE

main86719-30370iGRL1#,GWL10201112-201302

main86719-30371iGRL10201302-201309

86719ABRACKET, TELEPHONE NO.1

main86719-30380iGRL1#,GWL10201112-201302

main86719-30381iGRL10..8FC;AWL10,GRL11,15,GWL10201302-201510

86725BATTERY, MOBILEPHONE

main86725-48010iARL10,AWL10,GRL1#,GWL10201510-202007

86741ATRANSCEIVER, TELEMATICS

main86740-30210iARL10,AWL10,GRL1#,GWL10201510-202007

main86741-30041iGRL1#,GWL10201112-201204

main86741-30042iAWL10,GRL1#,GWL10201205-201409

main86741-53084iAWL10,GRL1#,GWL10201409-201510

86750ASWITCH ASSY, MAYDAY

main84170-30030-A0iGRL1#201112-201309

IVORY,TRIM00,01,03,50,51

main84170-30030-A1iARL10,AWL10,GRL1#,GWL10201510-202007

ECRU,TRIM0#,1#,2#,50,51,52,53,6#

main84170-30030-B0iGRL10..8FC;AWL10,GWL10201203-201510

LT.GRAY,TRIM1#,20,21,22,23,4#

main84170-30030-C0iGRL1#,GWL10201112-201309

BLACK,TRIM04,05,24,25,3#,54,55

9011906952

main90119-06952

9014850007

main90148-50007

9015350010

main90153-50010

9167380616

main91673-80616

10 parts on this diagram · 1 diagram in section
