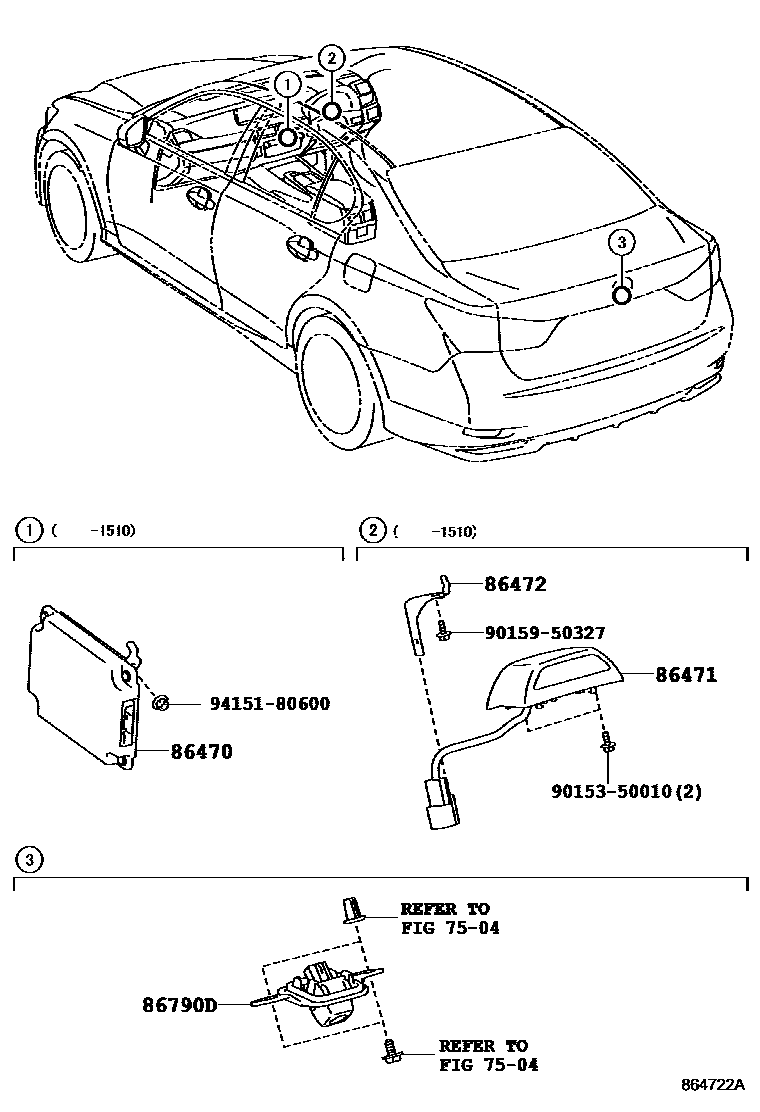

CAMERA & REAR MONITOR DISPLAY

7504

86470COMPUTER ASSY, DRIVER MONITOR

main86470-30030iGRL10201112-201309

86471CAMERA, DRIVER MONITOR

main86471-30030-C0iGRL10201112-201309

86472BRACKET, DRIVER MONITOR

main86472-30030iGRL10201112-201309

86790DCAMERA ASSY, TELEVISION, RR

main86790-30150iGRL1#,GWL10201112-201306

main86790-30151iGRL10201307-201309

main86790-30230iAWL10,GRL1#,GWL10201409-201510

9015350010

main90153-50010

9015950327

main90159-50327

9415180600

main94151-80600

8 parts on this diagram · 1 diagram in section
