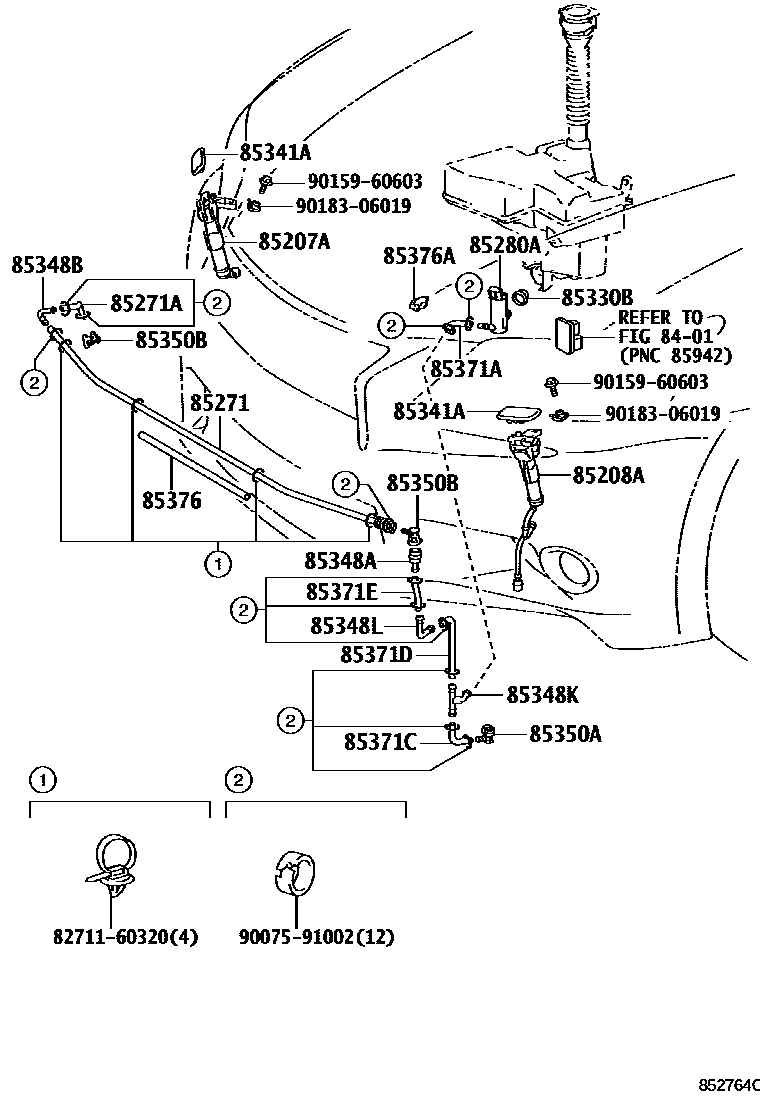

HEADLAMP CLEANER
8401SWITCH & RELAY & COMPUTER
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85271HOSE, HEADLAMP CLEANER, NO.1
85271AHOSE, HEADLAMP CLEANER, NO.2
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85330BBUSH, HEADLAMP CLEANER WASHER JAR
85341ACOVER,HEADLAMP CLEANER WASHER NOZZLE
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
85350AJOINT, HEADLAMP CLEANER ELBOW, NO.3
85350BJOINT, HEADLAMP CLEANER ELBOW, NO.4
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
85371CHOSE, HEADLAMP CLEANER, NO.1
85371DHOSE, HEADLAMP CLEANER, NO.2
85371EHOSE, HEADLAMP CLEANER, NO.3
85376PROTECTOR, HEADLAMP CLEANER HOSE, NO.1
85376APROTECTOR, HEADLAMP CLEANER HOSE, NO.2
8271160320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-60320
9007591002
main90075-91002
9015960603
main90159-60603
9018306019
main90183-06019
24 parts on this diagram · 2 diagrams in section
