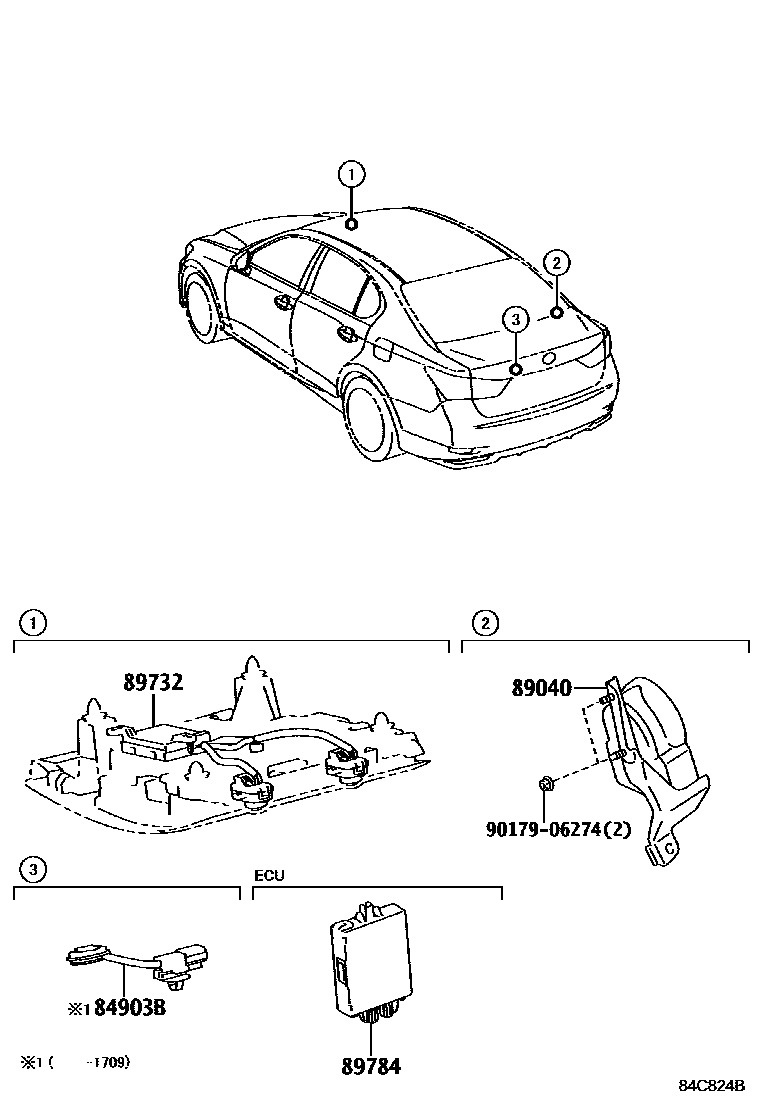

ANTI-THEFT DEVICE

84903BSWITCH SUB-ASSY, DOOR UNLOCK

main84903-30090iAWL10,GRL1#,GWL10201112-201510

89040SIREN ASSY, THEFT WARNING

main89040-30020iARL10,AWL10,GRL1#,GWL10201809-202007

89732SENSOR, THEFT WARNING RADAR

main89732-30231iAWL10,GRL1#,GWL10201309-201510

main89732-30240iGRL1#,GWL10201112-201309

89784COMPUTER, IMMOBILIZER CODE

main89784-30070iAWL10,GRL1#,GWL10201409-201510

main89784-33030iGRL10201112-201309

9017906274

main90179-06274

5 parts on this diagram · 1 diagram in section
