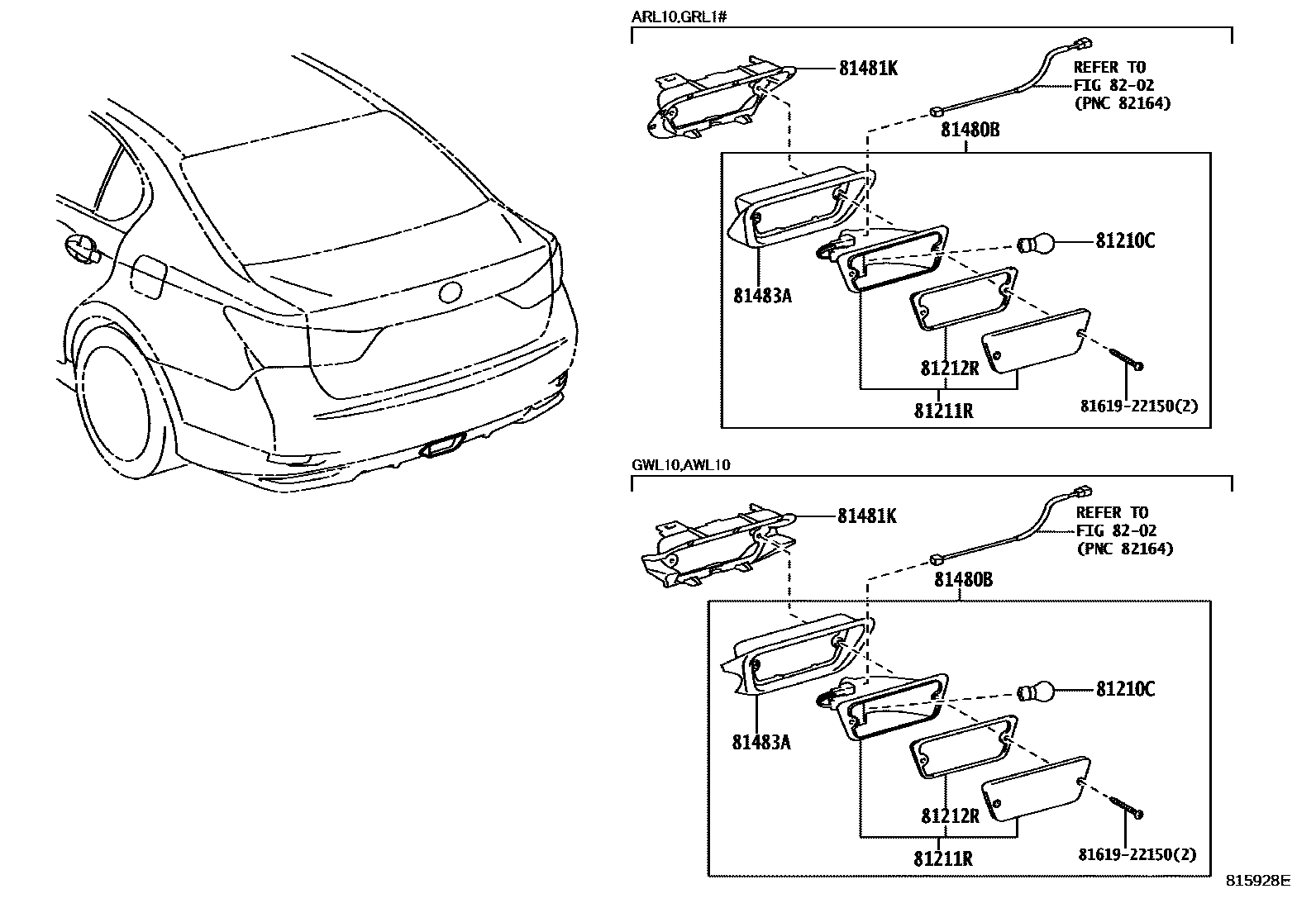

REAR FOG LAMP

81210CBULB, REAR FOG LAMP

main99132-11210iAWL10,GWL10201409-201510

81211RLENS, REAR FOG LAMP

main81457-30020iAWL10,GWL10201203-201510

81212RGASKET, REAR FOG LAMP, NO.1

main81458-28030iGRL10..8FC;AWL10,GRL11,15,GWL10201112-201510

81480BLAMP ASSY, REAR FOG

main81480-30020iGRL1#201112-201510

main81480-30030iAWL10,GWL10201203-201510

81481KBRACKET, REAR FOG LAMP

main81481-30130iGRL11,15;GRL10..8FC201112-201510

main81481-30140iAWL10,GWL10201203-201510

81483APROTECTOR, FOG LAMP

main81483-30010iGRL10201112-201309

main81483-30020iAWL10,GWL10201203-201510

8202WIRING & CLAMP

→ Go to FIG 82-02

8161922150

main81619-22150

8 parts on this diagram · 1 diagram in section
