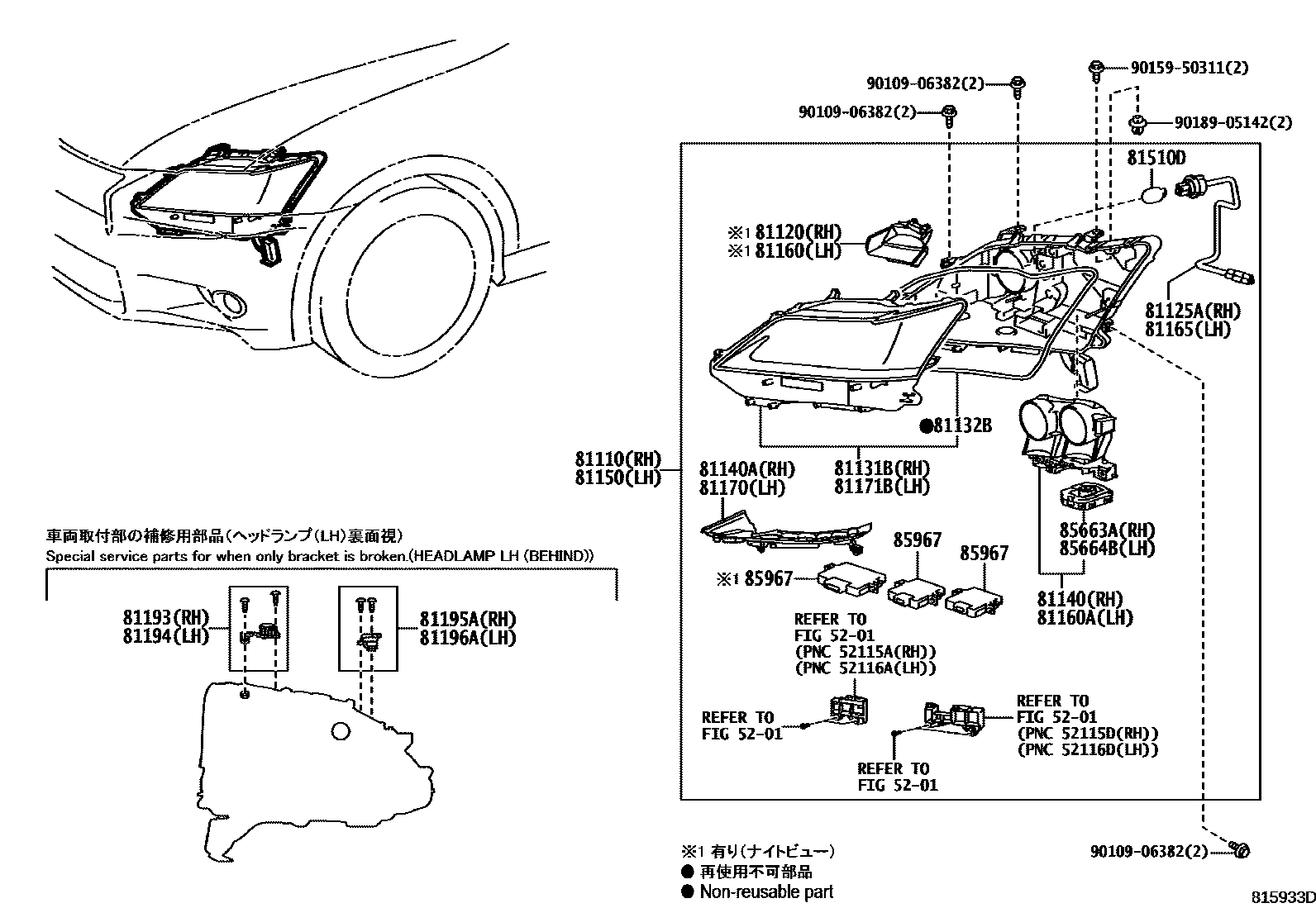

HEADLAMP

0001 1LED �������� 0002 1��������� �������� 0003 1LED(��������) 0004 1LED(�������LED)

5201

81110HEADLAMP ASSY, RH

main81110-30G50iGWL10201203-201309

main81110-30K30iGRL10,11201309-201510

main81110-30G60iGRL1#,GWL10201112-201309

main81110-30K40iAWL10,GRL15,GWL10201309-201510

81120HEADLAMP SUB-ASSY, RH

main81120-30G00iGRL11201112-201309

main81120-30G70iGRL10,11201309-201510

81125CORD, HEADLAMP

main81125-30K60×2iARL10,AWL10,GRL1#,GWL10201510-202007

81125ACORD, HEADLAMP, RH

main81125-30G60iAWL10,GWL10201203-201510

81131BHEAD LAMP LENS, RH

main81131-30E30iGRL1#201309-201510

main81131-30G50supersedes 81131-30F60iGWL10201203-201309

main81131-30K30iGRL10,11201309-201510

main81131-30F70supersedes 81131-30F60iGRL1#201112-201309

main81131-30G60iGRL1#,GWL10201112-201309

main81131-30K20iGRL10,11201309-201510

main81131-30K40iAWL10,GRL15,GWL10201309-201510

main81131-30L30supersedes 81131-30K90iARL10,AWL10,GRL1#,GWL10201510-201708

main81131-30L31iARL10,AWL10,GRL1#,GWL10201708-202007

main81131-30L60supersedes 81131-30K90iARL10,AWL10,GRL1#,GWL10201510-201708

main81131-30L61iARL10,AWL10,GRL1#,GWL10201708-202007

81132BGASKET, HEADLAMP LENS

main81132-30E40×2iARL10,AWL10,GRL1#,GWL10201510-202007

main81132-50590×2iAWL10,GRL1#,GWL10201112-201510

81140UNIT ASSY, HEADLAMP LED, RH

main81140-30G60iAWL10,GWL10201203-201510

81140AUNIT ASSY, HEADLAMP DAYTIME RUNNING LIGHT, RH

main81140-30G50supersedes 81140-30F70iGWL10201203-201309

main81140-30K20iGRL1#201309-201510

main81140-30K40iGRL10,11201309-201510

81150HEADLAMP ASSY, LH

main81150-30G50iGWL10201203-201309

main81150-30K30iGRL10,11201309-201510

main81150-30G60iGRL1#,GWL10201112-201309

main81150-30K40iAWL10,GRL15,GWL10201309-201510

81160HEADLAMP SUB-ASSY, LH

main81160-30G00iGRL11201112-201309

main81160-30G70iGRL10..6FC;AWL10,GRL15,GWL10201112-201510

81160AUNIT ASSY, HEADLAMP LED, LH

main81160-30G60iAWL10,GWL10201203-201510

81165CORD, HEADLAMP, LH

main81165-30G60iAWL10,GWL10201203-201510

81170UNIT ASSY, HEADLAMP DAYTIME RUNNING LIGHT, LH

main81170-30G50supersedes 81170-30F70iGWL10201203-201309

main81170-30K20iGRL1#201309-201510

main81170-30K40iGRL10,11201309-201510

81171BHEAD LAMP LENS, LH

main81171-30E70iGRL1#201309-201510

main81171-30G50supersedes 81171-30F60iGWL10201203-201309

main81171-30K30iGRL10,11201309-201510

main81171-30F70supersedes 81171-30F60iGRL1#201112-201309

main81171-30G60iGRL1#,GWL10201112-201309

main81171-30K20iGRL10,11201309-201510

main81171-30K40iAWL10,GRL15,GWL10201309-201510

main81171-30L30supersedes 81171-30K90iARL10,AWL10,GRL1#,GWL10201510-201708

main81171-30L31iARL10,AWL10,GRL1#,GWL10201708-202007

main81171-30L60supersedes 81171-30K90iARL10,AWL10,GRL1#,GWL10201510-201708

main81171-30L61iARL10,AWL10,GRL1#,GWL10201708-202007

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-30090iAWL10,GRL1#,GWL10201112-201510

main81193-30120iARL10,AWL10,GRL1#,GWL10201510-202007

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-30090iAWL10,GRL1#,GWL10201112-201510

main81194-30120iARL10,AWL10,GRL1#,GWL10201510-202007

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-30050iAWL10,GRL1#,GWL10201112-201510

main81195-30070iARL10,AWL10,GRL1#,GWL10201510-202007

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-30050iAWL10,GRL1#,GWL10201112-201510

main81196-30070iARL10,AWL10,GRL1#,GWL10201510-202007

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2iARL10,AWL10,GRL1#,GWL10201510-202007

85663AMOTOR, HEADLAMP SWIVEL, RH

main85663-30030iAWL10,GRL1#,GWL10201112-201510

85664BMOTOR, HEADLAMP SWIVEL, LH

main85664-30030iAWL10,GRL1#,GWL10201112-201510

85967COMPUTER, LIGHT CONTROL

main85967-30060×2iGRL10,11201309-201510

9010906382

main90109-06382

9015950311

main90159-50311

9018905142

main90189-05142

26 parts on this diagram · 4 diagrams in section
