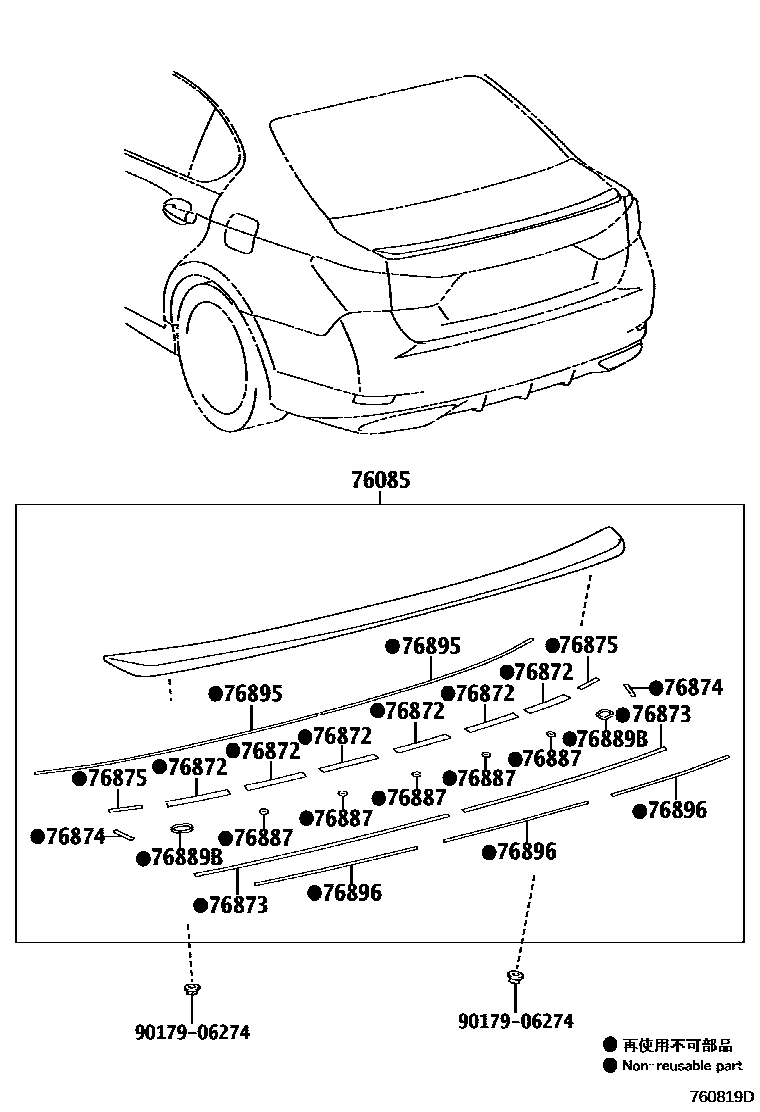

MUDGUARD & SPOILER

76085SPOILER SUB-ASSY, REAR

main76085-30090-A0iGWL10201112-201204

main76085-30090-B0iGRL1#201112-201203

main76085-30090-B1iGRL1#201112-201203

main76085-30090-C0iGRL1#201112-201203

main76085-30090-C1iGRL1#201112-201203

main76085-30090-C2iGWL10201112-201204

main76085-30090-D0iGWL10201112-201204

main76085-30090-E0iGRL1#201112-201203

main76085-30090-E1iGRL1#201112-201203

main76085-30090-J0iGRL1#201112-201203

main76085-30090-J1iGRL1#201112-201203

main76085-30091-A0iGRL10..8FC;AWL10,GRL11,15,GWL10201204-201510

main76085-30091-A1iARL10,AWL10,GRL1#,GWL10201510-202007

main76085-30091-B0iGRL10..8FC;AWL10,GRL11,15,GWL10201204-201510

main76085-30091-B1iGRL10..8FC;AWL10,GRL11,15,GWL10201204-201510

main76085-30091-B2iAWL10,GRL1#,GWL10201409-201510

main76085-30091-B3iARL10,AWL10,GRL1#,GWL10201609-202007

main76085-30091-C0iAWL10,GRL1#,GWL10201409-201510

main76085-30091-C2iAWL10,GRL1#,GWL10201409-201510

main76085-30091-C3iARL10,AWL10,GRL1#,GWL10201510-202007

main76085-30091-D0iGRL10..8FC;AWL10,GRL11,15,GWL10201204-201510

main76085-30091-D2iARL10,AWL10,GRL1#,GWL10201510-202007

main76085-30091-J0iGRL10..8FC;AWL10,GRL11,15,GWL10201204-201510

main76085-30091-J2iARL10,AWL10,GRL1#,GWL10201510-202007

76872PROTECTOR, REAR SPOILER, NO.1

main76872-30080×6iAWL10,GRL1#,GWL10201204-201510

76873PROTECTOR, REAR SPOILER, NO.2

main76873-30070×2iAWL10,GRL1#,GWL10201204-201510

76874PROTECTOR, REAR SPOILER, NO.3

main76874-30080×2iARL10,AWL10,GRL1#,GWL10201510-202007

76875PROTECTOR, REAR SPOILER, NO.4

main76875-30030×2iAWL10,GRL1#,GWL10201204-201510

76887SEAL, REAR SPOILER

main76887-52040×5iAWL10,GRL1#,GWL10201204-201510

76889BSEAL, REAR SPOILER, NO.1

main76889-30020×2iAWL10,GRL1#,GWL10201204-201510

76895PROTECTOR, REAR SPOILER, NO.5

main76895-30020×2iAWL10,GRL1#,GWL10201204-201510

76896PROTECTOR, REAR SPOILER, NO.6

main76896-30020×2iAWL10,GRL1#,GWL10201204-201510

9017906274

main90179-06274

10 parts on this diagram · 1 diagram in section
