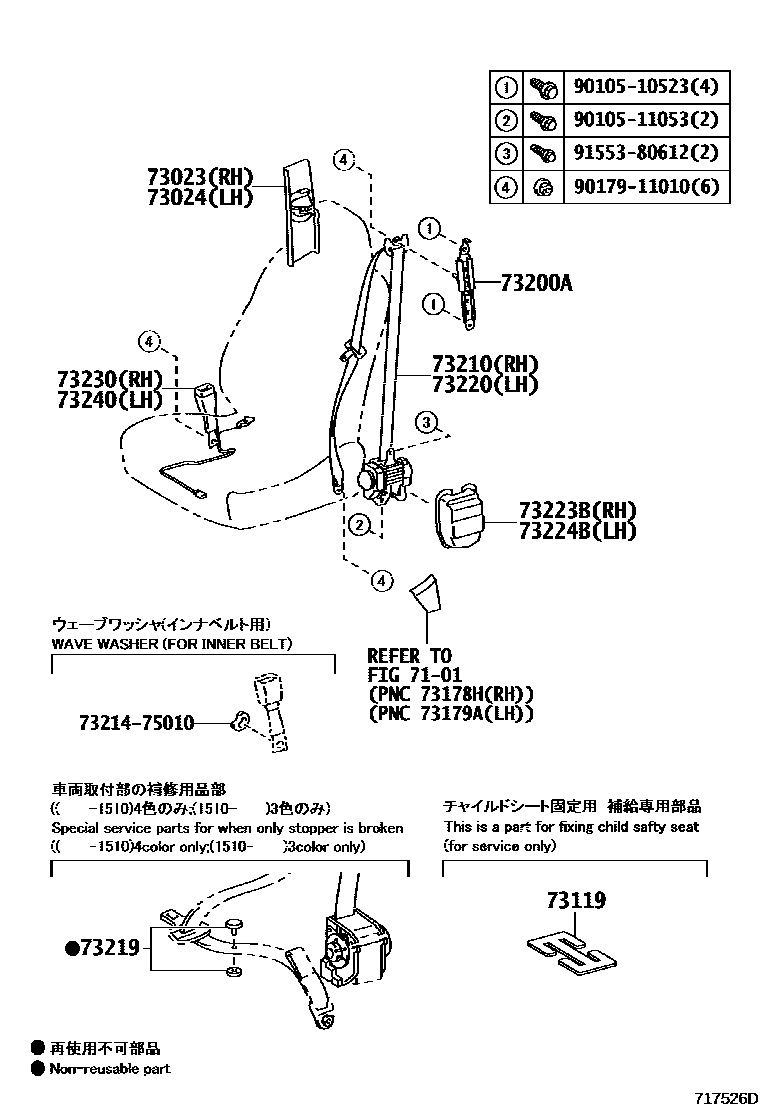

SEAT BELT & CHILD RESTRAINT SEAT

0001 1������� 0002 1�����

7101FRONT SEAT & SEAT TRACK

→ Go to FIG 71-01

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-33030-A1iGRL10..8FC;AWL10,GRL11,15,GWL10201112-201510

IVORY,TRIM00,01,02,03,50,51,52

main73023-33030-A1iGRL10201112-201309

IVORY,TRIM00,01,03,50,51

main73023-33030-A2iARL10,AWL10,GRL1#,GWL10201510-202007

ECRU,TRIM0#,1#,2#,50,51,52,53,6#

main73023-33030-B1iGRL10201112-201309

LT.GRAY,TRIM1#,20,21,23,4#

main73023-33030-B1iGRL10..8FC;AWL10,GRL11,15,GWL10201112-201510

LT.GRAY,TRIM1#,20,21,22,23,4#

main73023-33030-C0iGRL10201112-201309

BLACK,TRIM04,05,24,25,3#,54,55

main73023-33030-C0iGRL10..8FC;AWL10,GRL11,15,GWL10201112-201510

BLACK,TRIM04,05,06,24,25,26,3#,54,55,56

main73023-33030-C0iGRL11201510-201608

BLACK,TRIM25,26,3#,55,56

main73023-33030-C0iARL10,AWL10,GRL12,16,GWL10201510-202007

BLACK,TRIM25,26,27,3#,4#,55,56

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-33030-A1iGRL10201112-201309

IVORY,TRIM00,01,03,50,51

main73024-33030-A1iGRL10..8FC;AWL10,GRL11,15,GWL10201112-201510

IVORY,TRIM00,01,02,03,50,51,52

main73024-33030-A2iARL10,AWL10,GRL1#,GWL10201510-202007

ECRU,TRIM0#,1#,2#,50,51,52,53,6#

main73024-33030-B1iGRL10201112-201309

LT.GRAY,TRIM1#,20,21,23,4#

main73024-33030-B1iGRL10..8FC;AWL10,GRL11,15,GWL10201112-201510

LT.GRAY,TRIM1#,20,21,22,23,4#

main73024-33030-C0iARL10,AWL10,GRL12,16,GWL10201510-202007

BLACK,TRIM25,26,27,3#,4#,55,56

main73024-33030-C0iGRL10201112-201309

BLACK,TRIM04,05,24,25,3#,54,55

main73024-33030-C0iGRL10..8FC;AWL10,GRL11,15,GWL10201112-201510

BLACK,TRIM04,05,06,24,25,26,3#,54,55,56

main73024-33030-C0iGRL11201510-201608

BLACK,TRIM25,26,3#,55,56

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iGRL10201112-202007

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070iARL10,AWL10,GRL1#,GWL10201507-202007

main73200-53010iGRL10201112-201506

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-30E90-A0iGRL11201112-201302

IVORY/IVORY/IVORY,TRIM00,01,02,03

main73210-30E90-A0iGRL10,15,GWL10201112-201302

IVORY/IVORY/IVORY,TRIM00,01,03

main73210-30E90-B0iGRL1#,GWL10201112-201302

LT.GRAY/LT.GRAY/GRAY,TRIM1#

main73210-30E90-C0iGRL11201112-201302

IVORY/BLACK/BLACK,TRIM50,51,53

main73210-30E90-C0iGRL11201112-201302

IVORY/BLACK/BLACK,TRIM50,51,52,53

main73210-30E90-C1iGRL11201112-201302

LT.GRAY/BLACK/BLACK,TRIM20,21,23,4#

main73210-30E90-C1iGRL11201112-201302

LT.GRAY/BLACK/BLACK,TRIM20,21,22,23,4#

main73210-30E90-C2iGRL1#,GWL10201112-201302

BLACK/BLACK/BLACK,TRIM04,05,06,24,25,26,3#,54,55,56

main73210-30E91-A0iGRL1#,GWL10201303-201309

IVORY/IVORY/IVORY,TRIM00,01,02,03

main73210-30E91-B0iGRL1#,GWL10201303-201309

LT.GRAY/LT.GRAY/GRAY,TRIM1#

main73210-30E91-C0iGRL1#,GWL10201303-201309

IVORY/BLACK/BLACK,TRIM50,51,52

main73210-30E91-C1iGRL1#,GWL10201303-201309

LT.GRAY/BLACK/BLACK,TRIM20,21,22,23,4#

main73210-30E91-C2iGRL1#,GWL10201303-201309

BLACK/BLACK/BLACK,TRIM04,05,06,24,25,26,3#,54,55,56

main73210-30E92-A0iAWL10,GRL1#,GWL10201309-201510

IVORY/IVORY/IVORY,TRIM00,01,02,03

main73210-30E92-B0iAWL10,GRL1#,GWL10201309-201510

LT.GRAY/LT.GRAY/GRAY,TRIM1#

main73210-30E92-C0iAWL10,GRL1#,GWL10201309-201510

IVORY/BLACK/BLACK,TRIM50,51,52

main73210-30E92-C1iAWL10,GRL1#,GWL10201309-201510

LT.GRAY/BLACK/BLACK,TRIM20,21,22,23,4#

main73210-30E92-C2iAWL10,GRL1#,GWL10201309-201510

BLACK/BLACK/BLACK,TRIM04,05,06,24,25,26,3#,54,55,56

main73210-30E92-C2iARL10,AWL10,GRL1#,GWL10201510-201704

BLACK/BLACK/BLACK,TRIM25,26,3#,55,56

main73210-30E92-C3iARL10,AWL10,GRL1#,GWL10201510-201704

ECRU/BLACK/BLACK,TRIM0#,1#,2#,50,51,52,53,6#

main73210-30E93-C2iARL10,AWL10,GRL1#,GWL10201705-202007

BLACK/BLACK/BLACK,TRIM25,26,27,3#,4#,55,56

main73210-30E93-C3iARL10,AWL10,GRL1#,GWL10201705-202007

BLACK/ECRU/BLACK,TRIM0#,1#,2#,50,51,52,53,6#

73219STOPPER, TONGUE PLATE

main73219-33010iGRL10201112-202007

main73219-33020iGRL10201112-202007

main73219-33030iARL10,AWL10,GRL1#,GWL10201112-202007

main73219-50010iGRL10201112-201510

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-30A30-A0iGRL11201112-201302

IVORY/IVORY/IVORY,TRIM00,01,02,03

main73220-30A30-A0iGRL10,15,GWL10201112-201302

IVORY/IVORY/IVORY,TRIM00,01,03

main73220-30A30-B0iGRL1#,GWL10201112-201302

LT.GRAY/LT.GRAY/GRAY,TRIM1#

main73220-30A30-C0iGRL10,15,GWL10201112-201302

IVORY/BLACK/BLACK,TRIM50,51,53

main73220-30A30-C0iGRL11201112-201302

IVORY/BLACK/BLACK,TRIM50,51,52,53

main73220-30A30-C1iGRL11201112-201302

LT.GRAY/BLACK/BLACK,TRIM20,21,23,4#

main73220-30A30-C1iGRL11201112-201302

LT.GRAY/BLACK/BLACK,TRIM20,21,22,23,4#

main73220-30A30-C2iGRL1#,GWL10201112-201302

BLACK/BLACK/BLACK,TRIM04,05,06,24,25,26,3#,54,55,56

main73220-30A31-A0iGRL1#,GWL10201303-201309

IVORY/IVORY/IVORY,TRIM00,01,02,03

main73220-30A31-B0iGRL1#,GWL10201303-201309

LT.GRAY/LT.GRAY/GRAY,TRIM1#

main73220-30A31-C0iGRL10201303-201309

IVORY/BLACK/BLACK,TRIM50,51,52

main73220-30A31-C0iGRL10201303-201309

IVORY/BLACK/BLACK,TRIM50,51,52,53

main73220-30A31-C1iGRL1#,GWL10201303-201309

LT.GRAY/BLACK/BLACK,TRIM20,21,22,23,4#

main73220-30A31-C2iGRL1#,GWL10201303-201309

BLACK/BLACK/BLACK,TRIM04,05,06,24,25,26,3#,54,55,56

main73220-30A32-A0iAWL10,GRL1#,GWL10201309-201510

IVORY/IVORY/IVORY,TRIM00,01,02,03

main73220-30A32-B0iAWL10,GRL1#,GWL10201309-201510

LT.GRAY/LT.GRAY/GRAY,TRIM1#

main73220-30A32-C0iAWL10,GRL1#,GWL10201309-201510

IVORY/BLACK/BLACK,TRIM50,51,52

main73220-30A32-C1iAWL10,GRL1#,GWL10201309-201510

LT.GRAY/BLACK/BLACK,TRIM20,21,22,23,4#

main73220-30A32-C2iARL10,AWL10,GRL1#,GWL10201510-201704

BLACK/BLACK/BLACK,TRIM25,26,3#,55,56

main73220-30A32-C2iAWL10,GRL1#,GWL10201309-201510

BLACK/BLACK/BLACK,TRIM04,05,06,24,25,26,3#,54,55,56

main73220-30A32-C3iARL10,AWL10,GRL1#,GWL10201510-201704

ECRU/BLACK/BLACK,TRIM0#,1#,2#,50,51,52,53,6#

main73220-30A33-C2iARL10,AWL10,GRL1#,GWL10201705-202007

BLACK/BLACK/BLACK,TRIM25,26,27,3#,4#,55,56

main73220-30A33-C3iARL10,AWL10,GRL1#,GWL10201705-202007

BLACK/ECRU/BLACK,TRIM0#,1#,2#,50,51,52,53,6#

73223COVER, SEAT BELT RETRACTOR

main73223-30160iGRL10201112-202007

73223BCOVER, FRONT SEAT BELT RETRACTOR, RH

main73223-30150iGRL10..8FC;AWL10,GRL11,15,GWL10201112-202007

73224BCOVER, FRONT SEAT BELT RETRACTOR, LH

main73223-30150iGRL10201112-202007

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-30B10-A0iGRL1#,GWL10201112-201309

IVORY,TRIM00,01,02,03

main73230-30B10-B0iGRL1#,GWL10201112-201309

LT.GRAY,TRIM1#

main73230-30B10-C0iGRL1#,GWL10201112-201309

BLACK,TRIM04,05,06,2#,3#,4#,5#

main73230-30B11-A0iAWL10,GRL1#,GWL10201309-201510

IVORY,TRIM00,01,02,03

main73230-30B11-B0iAWL10,GRL1#,GWL10201309-201510

LT.GRAY,TRIM1#

main73230-30B11-C0iARL10,AWL10,GRL12,16,GWL10201510-202007

BLACK,TRIM0#,1#,2#,3#,4#,5#,6#

main73230-30B11-C0iAWL10,GRL1#,GWL10201309-201510

BLACK,TRIM04,05,06,2#,3#,4#,5#

main73230-30B11-C0iGRL11201510-201608

BLACK,TRIM0#,1#,2#,3#,5#,6#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-30B60-A0iGRL10201112-201309

IVORY,TRIM00,01,03

main73230-30B60-A0iGRL10201112-201309

IVORY,TRIM00,01,02,03

main73230-30B60-B0iGRL1#,GWL10201112-201309

LT.GRAY,TRIM1#

main73230-30B60-C0iGRL10201112-201309

BLACK,TRIM04,05,2#,3#,4#,5#

main73230-30B60-C0iGRL10201112-201309

BLACK,TRIM04,05,06,2#,3#,4#,5#

main73230-30B61-A0iAWL10,GRL1#,GWL10201309-201510

IVORY,TRIM00,01,02,03

main73230-30B61-B0iAWL10,GRL1#,GWL10201309-201510

LT.GRAY,TRIM1#

main73230-30B61-C0iAWL10,GRL1#,GWL10201309-201510

BLACK,TRIM04,05,06,2#,3#,4#,5#

main73230-30B61-C0iGRL11201510-201608

BLACK,TRIM0#,1#,2#,3#,5#,6#

main73230-30B61-C0iARL10,AWL10,GRL12,16,GWL10201510-202007

BLACK,TRIM0#,1#,2#,3#,4#,5#,6#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510523

main90105-10523

9010511053

main90105-11053

9017911010

main90179-11010

9155380612

main91553-80612

18 parts on this diagram · 2 diagrams in section
