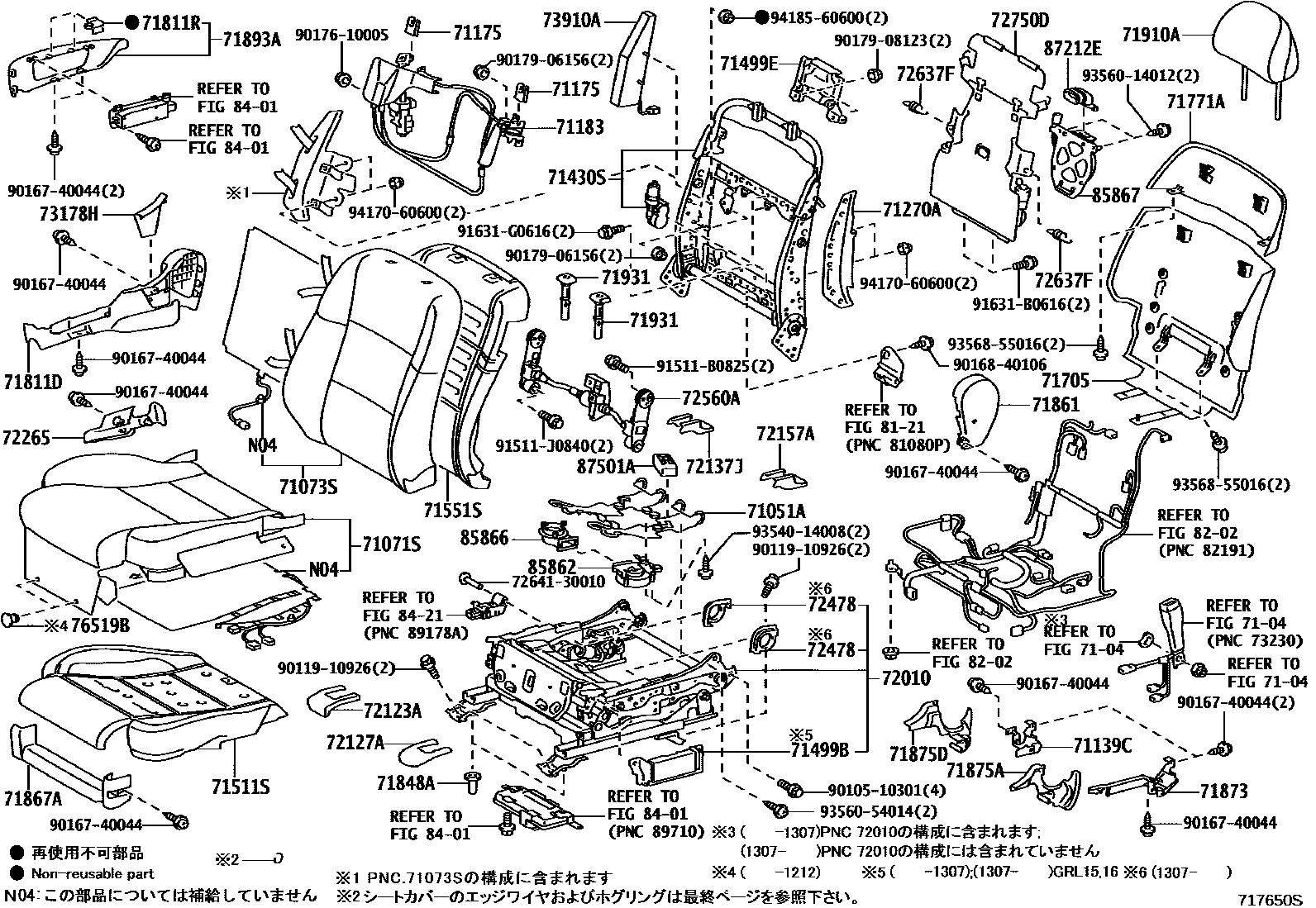

FRONT SEAT & SEAT TRACK

0001 1������(18WAY) 0002 1������(16WAY) 0003 1������(10WAY) 0004 1�������(18WAY) 0005 1�������(10WAY) 0006 1�������������� & �������

7104

71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH

main71051-30310iARL10,AWL10,GRL1#,GWL10201510-202007

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-30N00-B0iARL10,AWL10,GRL1#,GWL10201510-201804

CHATEAU,TRIM1#

main71071-30N01-B0iARL10,AWL10,GRL1#,GWL10201805-202007

CHATEAU,TRIM1#

main71071-30F40-A4supersedes 71071-30F20-A0iGRL15201112-201409

main71071-30F40-A5supersedes 71071-30F20-A4iAWL10,GRL10,11,GWL10201409-201510

main71071-30F40-B2iGRL15201112-201409

main71071-30F40-B3iAWL10,GRL10,11,GWL10201409-201510

main71071-30F40-C7supersedes 71071-30F20-C3iGRL15201112-201409

main71071-30F40-C8supersedes 71071-30F10-C9iAWL10,GRL10,11,GWL10201409-201510

main71071-30F40-E2iGRL15201112-201409

main71071-30F40-E3iAWL10,GRL10,11,GWL10201409-201510

main71071-30F60-A1supersedes 71071-30F10-A0iGRL15201112-201409

main71071-30F60-A2supersedes 71071-30F20-A4iAWL10,GRL10,11,GWL10201409-201510

main71071-30F60-C2supersedes 71071-30F10-C4iGRL15201112-201409

main71071-30F60-C3supersedes 71071-30F20-C7iAWL10,GRL10,11,GWL10201409-201510

main71071-30F60-D1iGRL15201112-201409

main71071-30F60-D2iAWL10,GRL10,11,GWL10201409-201510

main71071-30F60-F0iGRL15201112-201409

main71071-30F60-F1iAWL10,GRL10,11,GWL10201409-201510

main71071-30F80-A0supersedes 71071-30F20-A0iGRL10..8FC;AWL10,GWL10201112-201409

main71071-30F80-A1supersedes 71071-30F10-A6iAWL10,GRL10,11,GWL10201409-201510

main71071-30F80-C2supersedes 71071-30F20-C3iGRL10,GWL10201112-201309

main71071-30F80-C3supersedes 71071-30F20-C7iAWL10,GRL10,11,GWL10201409-201510

main71071-30F80-E0iGRL11201112-201212

main71071-30F80-E1iAWL10,GRL10,11,GWL10201409-201510

main71071-30F80-F1iGRL10..8FC;AWL10,GWL10201112-201409

main71071-30F80-F2iAWL10,GRL10,11,GWL10201409-201510

main71071-30J90-C1iAWL10,GRL10,11,GWL10201409-201510

main71071-30L80-A0iARL10,AWL10,GRL1#,GWL10201510-201708

main71071-30L80-A1iARL10,AWL10,GRL1#,GWL10201708-201804

main71071-30L80-C0supersedes 71071-30N00-C0iARL10,AWL10,GRL1#,GWL10201510-201708

main71071-30L80-C1supersedes 71071-30N01-C0iARL10,AWL10,GRL1#,GWL10201708-201804

main71071-30L80-E0iARL10,AWL10,GRL1#,GWL10201510-201708

main71071-30L80-E1iARL10,AWL10,GRL1#,GWL10201708-201804

main71071-30L80-F0iARL10,AWL10,GRL1#,GWL10201510-201708

main71071-30L80-F1iARL10,AWL10,GRL1#,GWL10201708-201804

main71071-30L81-A1iARL10,AWL10,GRL1#,GWL10201805-202007

main71071-30L81-C1supersedes 71071-30N01-C0iARL10,AWL10,GRL1#,GWL10201805-202007

main71071-30L81-E1iARL10,AWL10,GRL1#,GWL10201805-202007

main71071-30L81-E3iARL10,AWL10,GRL1#,GWL10201809-201909

main71071-30L81-F1iARL10,AWL10,GRL1#,GWL10201805-202007

main71071-30L90-C0supersedes 71071-30N00-C0iARL10,AWL10,GRL1#,GWL10201510-201708

main71071-30L90-C1supersedes 71071-30N01-C0iARL10,AWL10,GRL1#,GWL10201708-202007

main71071-30L90-D0iARL10,AWL10,GRL1#,GWL10201510-201708

main71071-30L90-D1iARL10,AWL10,GRL1#,GWL10201708-202007

main71071-30L90-F0iARL10,AWL10,GRL1#,GWL10201510-201708

main71071-30L90-F1iARL10,AWL10,GRL1#,GWL10201708-202007

main71071-30M10-A0iARL10,AWL10,GRL11,12,GWL10201510-201707

sub71071-30M11

main71071-30M10-A1iGRL16201708-202007

sub71071-30M11

main71071-30M10-B0iARL10,AWL10,GRL11,12,GWL10201510-201707

sub71071-30M11

main71071-30M10-B1iGRL16201708-202007

sub71071-30M11

main71071-30M10-C0iARL10,AWL10,GRL11,12,GWL10201510-201707

sub71071-30M11

main71071-30M10-C1iGRL16201708-202007

sub71071-30M11

main71071-30M10-E0iARL10,AWL10,GRL11,12,GWL10201510-201707

sub71071-30M11

main71071-30M10-E1iGRL16201708-202007

sub71071-30M11

main71071-30M10-F0iARL10,AWL10,GRL11,12,GWL10201510-201707

sub71071-30M11

main71071-30M10-F1iGRL16201708-202007

sub71071-30M11

main71071-30R60-C0supersedes 71071-30N01-C0iARL10,AWL10,GRL1#,GWL10202006-202007

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-30M20-B0iARL10,AWL10,GRL1#,GWL10201510-201709

CHATEAU,TRIM1#

main71073-30M20-B2iARL10,AWL10,GRL1#,GWL10201709-202007

CHATEAU,TRIM1#

main71073-30F20-C2iAWL10,GRL10,11,GWL10201409-201510

main71073-30G00-20supersedes 71073-30F70-C9iGRL10201112-201309

main71073-30G00-22supersedes 71073-30F80-C9iAWL10,GRL10,11,GWL10201409-201510

main71073-30G00-A7supersedes 71073-30F70-A8iGRL15201112-201409

main71073-30G00-A8supersedes 71073-30F80-A7iAWL10,GRL10,11,GWL10201409-201510

main71073-30G00-B5iGRL15201112-201409

main71073-30G00-B6iAWL10,GRL10,11,GWL10201409-201510

main71073-30G00-E5iGRL15201112-201409

main71073-30G00-E6iAWL10,GRL10,11,GWL10201409-201510

main71073-30G20-A4supersedes 71073-30F70-A8iGRL15201112-201409

main71073-30G20-A5supersedes 71073-30F80-A7iAWL10,GRL10,11,GWL10201409-201510

main71073-30G20-C5supersedes 71073-30F70-C9iGRL15201112-201409

main71073-30G20-C6supersedes 71073-30F70-22iAWL10,GRL10,11,GWL10201409-201510

main71073-30G20-D4iGRL15201112-201409

main71073-30G20-D5iAWL10,GRL10,11,GWL10201409-201510

main71073-30G20-F3iGRL10201112-201309

main71073-30G20-F4iAWL10,GRL10,11,GWL10201409-201510

main71073-30G30-A5supersedes 71073-30F70-A8iGRL10..8FC;AWL10,GWL10201112-201409

main71073-30G30-A6supersedes 71073-30F70-01iAWL10,GRL10,11,GWL10201409-201510

main71073-30G30-C6supersedes 71073-30F70-C9iGRL10..8FC;AWL10,GWL10201112-201409

main71073-30G30-C7supersedes 71073-30F80-C9iAWL10,GRL10,11,GWL10201409-201510

main71073-30G30-E5iGRL10,GWL10201112-201309

main71073-30G30-E6iAWL10,GRL10,11,GWL10201409-201510

main71073-30G30-F5iGRL11201112-201212

main71073-30G30-F6iAWL10,GRL10,11,GWL10201409-201510

main71073-30K70-A1iARL10,AWL10,GRL1#,GWL10201510-201709

main71073-30K70-C1supersedes 71073-30M20-C0iARL10,AWL10,GRL1#,GWL10201510-201709

main71073-30K70-E1iARL10,AWL10,GRL1#,GWL10201510-201709

main71073-30K70-F1iARL10,AWL10,GRL1#,GWL10201510-201709

main71073-30K71-A2iARL10,AWL10,GRL1#,GWL10201709-202007

main71073-30K71-C2supersedes 71073-30M20-C2iARL10,AWL10,GRL1#,GWL10201709-202007

main71073-30K71-E2iARL10,AWL10,GRL1#,GWL10201709-202007

main71073-30K71-E4iARL10,AWL10,GRL1#,GWL10201809-201909

main71073-30K71-F2iARL10,AWL10,GRL1#,GWL10201709-202007

main71073-30K90-C1supersedes 71073-30M20-C0iARL10,AWL10,GRL1#,GWL10201510-201709

main71073-30K90-D1iARL10,AWL10,GRL1#,GWL10201510-201709

main71073-30K90-F1iARL10,AWL10,GRL1#,GWL10201510-201709

main71073-30K91-C2supersedes 71073-30M20-C2iARL10,AWL10,GRL1#,GWL10201709-202007

main71073-30K91-D2iARL10,AWL10,GRL1#,GWL10201709-202007

main71073-30K91-F2iARL10,AWL10,GRL1#,GWL10201709-202007

main71073-30L00-A1iARL10,AWL10,GRL11,12,GWL10201510-201709

sub71073-30L02

main71073-30L00-B1iARL10,AWL10,GRL11,12,GWL10201510-201709

sub71073-30L02

main71073-30L00-C1iARL10,AWL10,GRL11,12,GWL10201510-201709

sub71073-30L02

main71073-30L00-E1iARL10,AWL10,GRL11,12,GWL10201510-201709

sub71073-30L02

main71073-30L00-F1iARL10,AWL10,GRL11,12,GWL10201510-201709

sub71073-30L02

main71073-30L01-A2iGRL16201709-202007

main71073-30L01-B2iGRL16201709-202007

main71073-30L01-C2iGRL16201709-202007

main71073-30L01-E2iGRL16201709-202007

main71073-30L01-F2iGRL16201709-202007

main71073-30R70-C0iARL10,AWL10,GRL1#,GWL10202006-202007

71139CCOVER, FRONT SEAT LEG, RH

main71139-30130iGRL10201212-201309

main71139-30130-C0iGRL1#,GWL10201112-201212

BLACK,TRIM0#,1#,2#,3#,4#,5#

71175PLATE, FRONT SEATBACK SPRING SET, INSIDE RH

main71173-30090×2iGRL10..8FC;AWL10,GRL11,15,GWL10201112-201510

71183SUPPORT, FRONT SEATBACK, RH

main71183-30050iGRL11201212-201409

71270ABRACKET ASSY, SEAT, INNER RH

main71270-30090iGRL15201112-201510

main71270-30110iARL10,AWL10,GRL11,12,GWL10201510-202007

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-30C50supersedes 71430-30C20iARL10,AWL10,GRL1#,GWL10201510-202007

main71430-30C70supersedes 71430-30C20iARL10,AWL10,GRL11,12,GWL10201510-202007

71499BDAMPER, SEAT CUSHION SPRING

main71499-30030iGRL15201112-201510

main71499-30040iGRL15201112-201510

main71499-30060iGRL10,11,GWL10201112-201307

main71499-30070iGRL10,11,GWL10201112-201307

71499EDAMPER, SEATBACK SPRING, RH

main71499-30050iGRL11201409-201510

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-30B40iGRL10..8FC;AWL10,GRL11,15,GWL10201112-201510

main71511-30B50supersedes 71511-30B40iARL10,AWL10,GRL1#,GWL10201510-202007

main71511-30B60supersedes 71511-30B40iGRL10..8FC;AWL10,GWL10201112-201510

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-30B80iGRL10..8FC;AWL10,GRL11,15,GWL10201112-201510

main71551-30B90supersedes 71551-30B80iGRL15201112-201510

main71551-30C00supersedes 71551-30B80iARL10,AWL10,GRL11,12,GWL10201510-202007

71705BOARD SUB-ASSY, FRONT SEATBACK, RH

main71705-30880-A3iGRL10..8FC;AWL10,GRL11,15,GWL10201112-201510

IVORY,TRIM00,01,02,03

main71705-30880-A5iGRL1#201510-201603

main71705-30880-A7iARL10,GRL1#201603-202007

main71705-30880-B2iGRL10..8FC;AWL10,GRL11,15,GWL10201112-201510

LT.GRAY,TRIM1#

main71705-30880-B3iAWL10,GRL1#,GWL10201510-201603

CHATEAU,TRIM1#

main71705-30880-B4iARL10,AWL10,GRL1#,GWL10201603-202007

CHATEAU,TRIM1#

main71705-30880-C5iGRL10..8FC;AWL10,GRL11,15,GWL10201112-201510

BLACK,TRIM04,05,06,2#,3#,5#

main71705-30880-C7iGRL1#201510-201603

main71705-30880-C8iGRL1#201510-201603

main71705-30880-C9iARL10,GRL12,16201603-202007

main71705-30880-E2iGRL10..8FC;AWL10,GRL11,15,GWL10201112-201510

DK.SADDLE TAN,TRIM4#

main71705-30880-E3iGRL1#201510-201603

main71705-30880-E5iARL10,GRL1#201603-202007

main71705-30880-F3iGRL11,12201510-201603

main71705-30880-F6iARL10,GRL12,16201603-202007

main71705-30890-A2iGRL11201112-201212

main71705-30890-A3iGRL16201510-201603

main71705-30890-A4iARL10,AWL10,GRL11,12,GWL10201603-202007

main71705-30890-B1iGRL16201510-201603

main71705-30890-B2iARL10,AWL10,GRL11,12,GWL10201603-202007

main71705-30890-C3supersedes 71705-30880-C9iGRL16201510-201603

main71705-30890-C4iARL10,AWL10,GRL11,12,GWL10201603-202007

main71705-30890-E2supersedes 71705-30880-E2iGRL10..8FC;AWL10,GWL10201112-201510

main71705-30890-E3iGRL16201510-201603

main71705-30890-E5iARL10,AWL10,GRL11,12,GWL10201603-202007

main71705-30890-F2supersedes 71705-30880-F6iGRL16201510-201603

main71705-30890-F3iARL10,AWL10,GRL11,12,GWL10201603-202007

71771ABOARD, FRONT SEATBACK

main71771-30120-A1iGRL11201112-201212

main71771-30120-A2iARL10,AWL10,GRL11,12,GWL10201510-202007

main71771-30120-B1iARL10,AWL10,GRL11,12,GWL10201510-202007

main71771-30120-C1iARL10,AWL10,GRL11,12,GWL10201510-202007

main71771-30120-E1iGRL11201112-201212

main71771-30120-E2iARL10,AWL10,GRL11,12,GWL10201510-202007

main71771-30120-F1iARL10,AWL10,GRL11,12,GWL10201510-202007

main71772-30130-A1iGRL10..8FC;AWL10,GWL10201112-201510

main71772-30130-A2iARL10,AWL10,GRL11,12,GWL10201510-202007

main71772-30130-B1iARL10,AWL10,GRL11,12,GWL10201510-202007

main71772-30130-C1iARL10,AWL10,GRL11,12,GWL10201510-202007

main71772-30130-E1iGRL11201409-201510

main71772-30130-E2iARL10,AWL10,GRL11,12,GWL10201510-202007

main71772-30130-F1iGRL10..8FC;AWL10,GWL10201112-201510

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-30510-A0iGRL15201112-201510

main71811-30510-B0iAWL10,GRL10201309-201510

LT.GRAY,TRIM1#

main71811-30510-C0supersedes 71811-30510-C0iGRL10201112-201309

main71811-30510-E0iAWL10,GRL10201309-201510

DK.SADDLE TAN,TRIM4#

main71811-30510-F0iGRL10..8FC;AWL10,GWL10201112-201510

71811RCLIP, FRONT SEAT CUSHION SHIELD, RH

main71731-30120×2iGRL10201112-201309

71848ACAP, SEAT ADJUSTER COVER, RH

main71848-33010×2iGRL10..8FC;AWL10,GRL11,15,GWL10201112-201312

main71848-76010×2iAWL10,GRL1#,GWL10201401-201510

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-30110-A0iGRL10201112-201309

main71861-30110-B0iGRL10201112-201309

LT.GRAY,TRIM10,11,12

main71861-30110-C0supersedes 71861-30110-C0iGRL10201112-201309

main71861-30110-E0iGRL10201112-201309

main71861-30110-F0iGRL10201112-201309

71867ASHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

main71867-30150-A0iGRL10201112-201309

IVORY,TRIM00,01,03

main71867-30150-B0iGRL10201112-201309

LT.GRAY,TRIM10,11,12

main71867-30150-C0iGRL11201510-201608

BLACK,TRIM0#,1#,2#,5#,6#

main71867-30150-E1iGRL10201112-201309

DK.SADDLE TAN,TRIM40,41,43

main71867-30160-A0iGRL10201112-201309

main71867-30160-C0supersedes 71867-30150-C0iGRL10,GWL10201112-201309

main71867-30160-E0supersedes 71867-30150-E1iGRL10201112-201309

main71867-30160-F0iGRL10..8FC;AWL10,GWL10201112-201510

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-30110iGRL10201212-201309

main71873-30110-C0iGRL1#,GWL10201112-201212

BLACK,TRIM0#,1#,2#,3#,4#,5#

71875ACOVER, RECLINING ADJUSTER INSIDE, RH

main71876-30190iGRL10..8FC;AWL10,GRL11,15,GWL10201212-201510

main71876-30190-C0iGRL1#,GWL10201112-201212

BLACK,TRIM0#,1#,2#,3#,4#,5#

71875DCOVER, RECLINING ADJUSTER OUTSIDE, RH

main71875-30190iGRL10201212-201309

main71875-30190-C0iGRL1#,GWL10201112-201212

BLACK,TRIM0#,1#,2#,3#,4#,5#

71893ASHIELD, POWER ADJUSTER, FRONT RH

main71893-30030-A0iGRL10201112-201309

main71893-30030-B0iAWL10,GRL10201309-201510

LT.GRAY,TRIM1#

main71893-30030-C0supersedes 71893-30030-C0iGRL10201112-201309

main71893-30030-E0iGRL10201112-201309

main71893-30030-F0iGRL10..8FC;AWL10,GWL10201112-201510

71910AHEADREST ASSY, FRONT SEAT

main71910-30F50-A0×2iGRL10..8FC;AWL10,GRL11,15,GWL10201112-201510

IVORY,TRIM0#

sub71910-30E50

main71910-30F50-C0×2iGRL10..8FC;AWL10,GRL11,15,GWL10201112-201510

BLACK,TRIM2#

sub71910-30E50

main71910-30G20-B0×2iARL10,AWL10,GRL1#,GWL10201510-201709

CHATEAU,TRIM1#

main71910-30J70-B0×2iARL10,AWL10,GRL1#,GWL10201709-202007

CHATEAU,TRIM1#

main71910-30F20-A2×2iGRL10..8FC;AWL10,GWL10201112-201510

sub71910-30E40

main71910-30F20-C4×2iGRL11201112-201212

sub71910-30E40

main71910-30F20-E3×2iGRL10..8FC;AWL10,GWL10201112-201510

sub71910-30E40

main71910-30F20-F4×2iGRL10..8FC;AWL10,GWL10201112-201510

sub71910-30E40

main71910-30F60-A0×2supersedes 71910-30F50-A0iGRL15201112-201510

main71910-30F60-B0×2iGRL15201112-201510

main71910-30F60-C0×2supersedes 71910-30F50-C0iGRL15201112-201510

main71910-30F60-C2×2iAWL10,GRL10,11,GWL10201409-201510

main71910-30F60-D0×2iAWL10,GRL10,11,GWL10201409-201412

main71910-30F60-E0×2iGRL15201112-201510

main71910-30F60-F0×2iGRL15201112-201510

main71910-30G10-D0×2iAWL10,GRL10,11,GWL10201412-201510

main71910-30G30-A0×2iAWL10,GRL1#,GWL10201510-201602

main71910-30G30-C0×2iAWL10,GRL1#,GWL10201510-201602

main71910-30G30-D0×2iAWL10,GRL1#,GWL10201510-201602

main71910-30G30-E1×2iAWL10,GRL1#,GWL10201510-201602

main71910-30G30-F0×2iAWL10,GRL1#,GWL10201510-201602

main71910-30G40-A0×2iGRL16201510-201602

main71910-30G40-B0×2iGRL16201510-201602

main71910-30G40-C0×2iGRL16201510-201602

main71910-30G40-E1×2iGRL16201510-201602

main71910-30G40-F0×2iGRL16201510-201602

main71910-30G80-A0×2iARL10,AWL10,GRL1#,GWL10201602-201709

main71910-30G80-C0×2supersedes 71910-30G20-C1iARL10,AWL10,GRL1#,GWL10201602-201709

main71910-30G80-D0×2iARL10,AWL10,GRL1#,GWL10201602-201709

main71910-30G80-E0×2iARL10,AWL10,GRL1#,GWL10201602-201709

main71910-30G80-F0×2iARL10,AWL10,GRL1#,GWL10201602-201709

main71910-30G90-A0×2iARL10,AWL10,GRL11,12,GWL10201602-201709

main71910-30G90-B0×2iARL10,AWL10,GRL11,12,GWL10201602-201709

main71910-30G90-C0×2iARL10,AWL10,GRL11,12,GWL10201602-201709

main71910-30G90-E0×2iARL10,AWL10,GRL11,12,GWL10201602-201709

main71910-30G90-F0×2iARL10,AWL10,GRL11,12,GWL10201602-201709

main71910-30G91-A0×2iGRL16201709-202007

main71910-30G91-B0×2iGRL16201709-202007

main71910-30G91-C0×2iGRL16201709-202007

main71910-30G91-E0×2iGRL16201709-202007

main71910-30G91-F0×2iGRL16201709-202007

main71910-30J90-C1×2iARL10,AWL10,GRL1#,GWL10202006-202007

main71910-30J90-E3×2iARL10,AWL10,GRL1#,GWL10201809-201909

main71910-30K30-A0×2iARL10,AWL10,GRL1#,GWL10201709-202007

main71910-30K30-C0×2supersedes 71910-30J70-C0iARL10,AWL10,GRL1#,GWL10201709-202007

main71910-30K30-D0×2iARL10,AWL10,GRL1#,GWL10201709-202007

main71910-30K30-E0×2iARL10,AWL10,GRL1#,GWL10201709-202007

main71910-30K30-F0×2iARL10,AWL10,GRL1#,GWL10201709-202007

71931SUPPORT, FRONT SEAT HEADREST

main71930-47020-A4×2iGRL10201112-201309

main71930-47020-C0×2iGRL10201112-201309

main71930-47020-C4×2iARL10,AWL10,GRL1#,GWL10201710-202007

main71931-47020-A4×2iGRL10201112-201309

main71931-47020-C0×2iGRL10201112-201309

main71931-47020-C4×2iARL10,AWL10,GRL1#,GWL10201710-202007

main71930-47020-B1×2iGRL15201112-201510

main71931-47020-B1×2iGRL15201112-201510

72010ADJUSTER ASSY, FRONT SEAT, RH

main72010-30300supersedes 72010-30290iGRL11201112-201212

sub73214-75010

main72010-30301supersedes 72010-30291iGRL10..8FC;AWL10,GWL10201307-201510

main72010-30500supersedes 72010-30491iGRL15201112-201307

sub73214-75010

main72010-30501supersedes 72010-30491iGRL16201510-202007

72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-30110-C0iGRL11201510-201608

BLACK,TRIM0#,1#,2#,3#,5#,6#

72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72127-30090-C0iGRL10..8FC;AWL10,GRL11,15,GWL10201112-201510

BLACK,TRIM0#,1#,2#,3#,4#,5#

72137JCOVER, FRONT SEAT TRACK, RH REAR OUTER

main72137-30210-C0iGRL10201112-201309

BLACK,TRIM0#,1#,2#,3#,4#,5#

72157ACOVER, SEAT TRACK BRACKET, INNER RH

main72138-30080-C0iGRL10201112-201309

BLACK,TRIM0#,1#,2#,3#,4#,5#

72265COVER, SEAT TRACK UPPER RAIL, RH

main72265-30010iGRL10..8FC;AWL10,GRL11,15,GWL10201112-201510

72478BUSH, VERTICAL ADJUSTER

main72478-30040×4iGRL10..8FC;AWL10,GRL11,15,GWL10201307-201510

72560AADJUSTER ASSY, FRONT SEATBACK

main72560-30010×2iARL10,AWL10,GRL11,12,GWL10201510-202007

72637FSPRING, SEATBACK, RH

main72637-30020×2iGRL10201112-201309

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-30280iGRL10..8FC;AWL10,GRL11,15,GWL10201112-201510

main72750-30300supersedes 72750-30280iAWL10,GRL10,11,GWL10201409-201510

main72750-30320supersedes 72750-30280iGRL10,GWL10201112-201309

73178HCAP, SEAT BELT ANCHOR COVER, RH

main73178-30050-A0iGRL10..8FC;AWL10,GRL11,15,GWL10201112-201510

IVORY,TRIM00,01,02,03

main73178-30050-B0iGRL10201112-201309

LT.GRAY,TRIM10,11,12

main73178-30050-C0iGRL11201510-201608

BLACK,TRIM0#,1#,2#,3#,5#,6#

main73178-30050-E1iGRL10201112-201309

DK.SADDLE TAN,TRIM40,41,43

main73178-30050-F0iGRL10..8FC;AWL10,GRL11,15,GWL10201112-201510

TOPAZ BROWN,TRIM50,51,52

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-30090iGRL10..8FC;AWL10,GRL11,15,GWL10201112-201510

main73910-30110supersedes 73910-30090iARL10,AWL10,GRL1#,GWL10202006-202007

main73910-30130supersedes 73910-30090iARL10,AWL10,GRL11,12,GWL10201510-202007

76519BCLIP, FRONT SEAT CUSHION COVER

main76519-42010×2iGRL1#,GWL10201112-201212

8121

8202

8401

8421

85862BLOWER, SEAT CLIMATE CONTROL, RH

main85801-30250iARL10,AWL10,GRL11,12,GWL10201510-202007

85866DUCT, SEAT CUSHION CLIMATE CONTROL, RH

main85866-30030iGRL11201112-201212

85867BLOWER, SEATBACK CLIMATE CONTROL, RH

main85867-30020iGRL11201112-201212

87212EDUCT, AIR, REAR RH

main87211-30690iGRL10..8FC;AWL10,GWL10201112-201510

87501ACONTROL SUB-ASSY, SEAT HEATER, RH

main87501-30020iARL10,AWL10,GRL1#,GWL10201510-202007

7264130010PIN, REAR SEATBACK LOCK

main72641-30010

9010510301

main90105-10301

9011910926

main90119-10926

9016740044

main90167-40044

9016840106

main90168-40106

9017610005

main90176-10005

9017906156

main90179-06156

9017908123

main90179-08123

91511B0825

main91511-B0825

91511J0840

main91511-J0840

91631B0616

main91631-B0616

91631G0616

main91631-G0616

9354014008

main93540-14008

9356014012

main93560-14012

9356054014

main93560-54014

9356855016

main93568-55016

9417060600

main94170-60600

9418560600

main94185-60600

66 parts on this diagram · 6 diagrams in section
