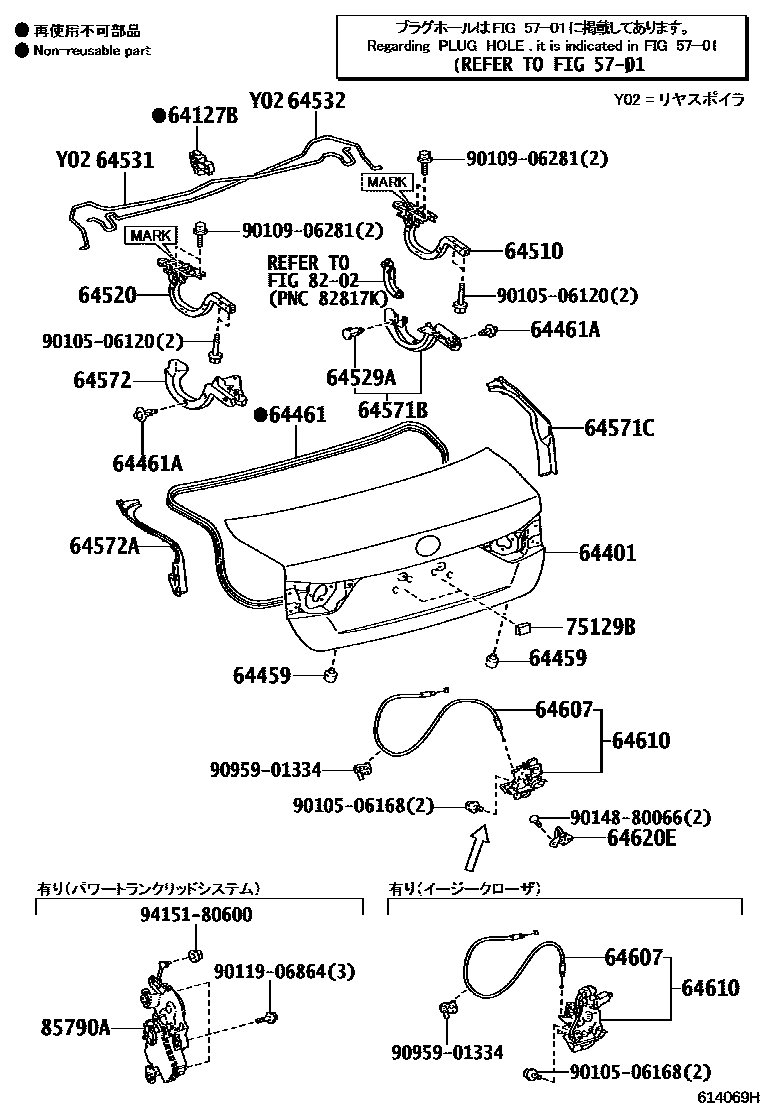

LUGGAGE COMPARTMENT DOOR & LOCK

5701HOLE PLUG

→ Go to FIG 57-01

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-30150iGRL10201112-202007

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-30C90iGRL1#,GWL10201112-201309

main64401-30C91iAWL10,GRL1#,GWL10201309-201407

main64401-30C92iAWL10,GRL1#,GWL10201408-202007

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-09116iAWL10,GRL1#,GWL10201112-202007

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-30380iGRL10201112-202007

64461ACLIP(FOR DECK TRIM COVER)

main90467-07076-C0iGRL10201112-201510

BLACK,TRIM0#,1#,2#,3#,4#,5#

main90467-07076-C0iARL10,AWL10,GRL1#,GWL10201510-201703

BLACK,TRIM0#,1#,2#,3#,5#,6#

main90467-07076-C7iARL10,AWL10,GRL1#,GWL10201703-202007

BLACK,TRIM0#,1#,2#,3#,4#,5#,6#

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-30520iARL10,AWL10,GRL1#,GWL10201112-202007

main64510-30530iGRL10201112-202007

main64510-30540iGRL10201112-202007

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-30320iGRL10..8FC;AWL10,GRL11,15,GWL10201112-202007

main64520-30330iARL10,AWL10,GRL1#,GWL10201112-202007

main64520-30340iGRL10..8FC;AWL10,GRL11,15,GWL10201112-202007

64529ASHIM, LUGGAGE COMPARTMENT DOOR HINGE

main64529-30180iGRL10..8FC;AWL10,GRL11,15,GWL10201112-202007

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-30340iGRL1#201112-201202

main64531-30341iGRL10201203-201510

main64531-30350iARL10,AWL10,GRL1#,GWL10201510-202007

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-30340iGRL1#201112-201202

main64532-30341iGRL10201203-201510

main64532-30350iARL10,AWL10,GRL1#,GWL10201510-202007

64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64571-30160iGRL1#,GWL10201112-201309

main64571-30190iAWL10,GRL1#,GWL10201309-202007

64571CCOVER, LUGGAGE COMPARTMENT DOOR, RH

main64571-30170iGRL10201112-201510

main64571-30200iARL10,AWL10,GRL1#,GWL10201510-202007

64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64572-30110iGRL1#,GWL10201112-201309

main64572-30130iAWL10,GRL1#,GWL10201309-202007

64572ACOVER, LUGGAGE COMPARTMENT DOOR, LH

main64572-30120iGRL10201112-201510

main64572-30150iARL10,AWL10,GRL1#,GWL10201510-202007

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-30130iGRL10201112-201510

main64607-30210iARL10,AWL10,GRL1#,GWL10201510-202007

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-30200iGRL10201112-201510

main64650-30100iARL10,AWL10,GRL1#,GWL10201510-201703

main64650-30101iARL10,AWL10,GRL1#,GWL10201704-202007

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64620-30130iGRL10201112-202007

75129BCUSHION, REAR LICENCE PLATE

main75129-30010iGRL10201112-202007

8202WIRING & CLAMP

→ Go to FIG 82-02

85790AMOTOR ASSY, LUGGAGE CLOSER

9010506120

main90105-06120

9010506168

main90105-06168

9010906281

main90109-06281

9011906864

main90119-06864

9014880066

main90148-80066

9095901334

main90959-01334

9415180600

main94151-80600
