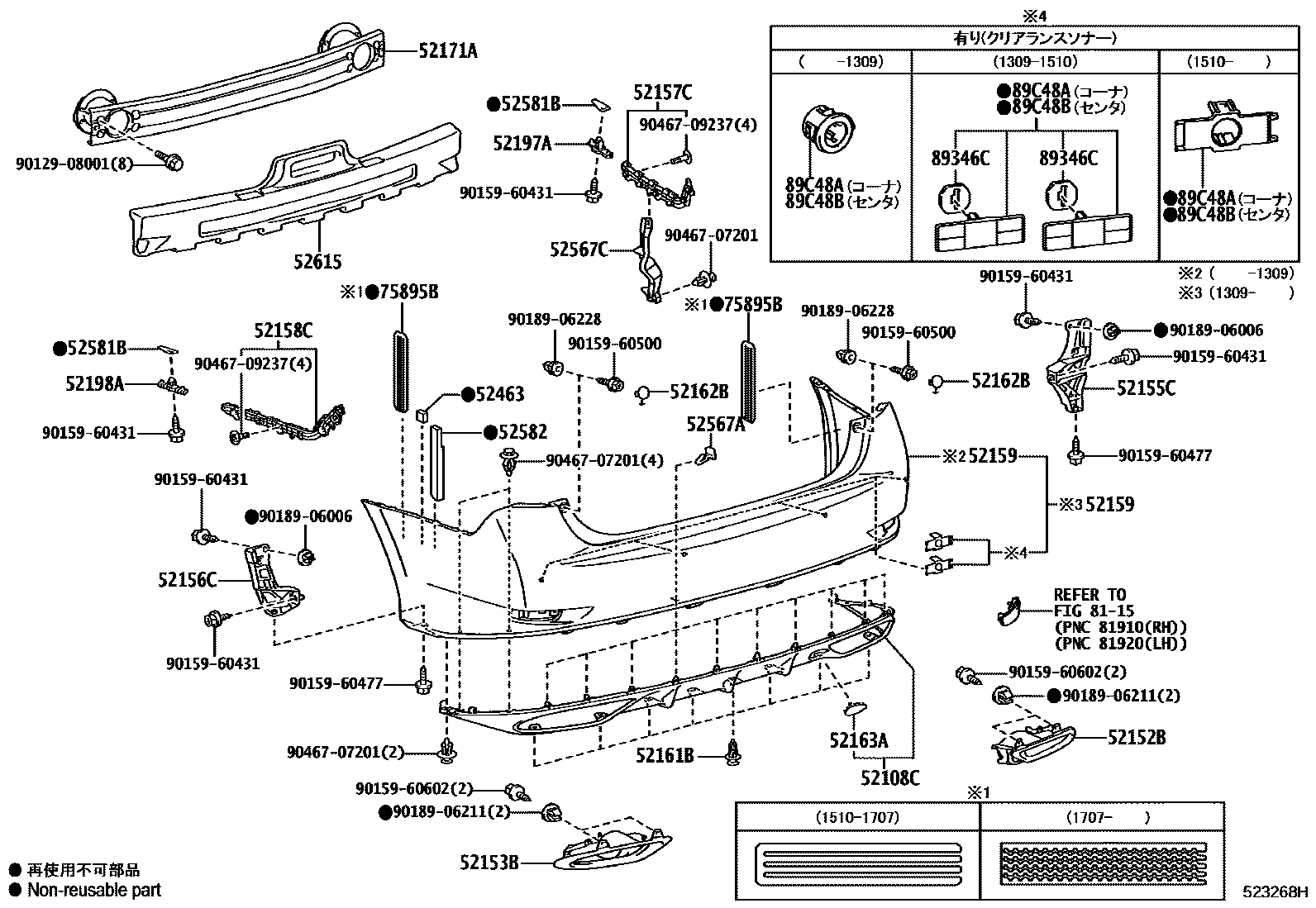

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52108CEXTENSION SUB-ASSY, REAR BUMPER, CENTER

main52108-30060supersedes 52108-30150iAWL10,GWL10201203-201510

main52108-30070supersedes 52108-30150iAWL10,GWL10202006-202007

main52108-30080supersedes 52108-30030iGRL1#201409-201510

main52108-30090supersedes 52108-30150iAWL10,GWL10201409-201510

main52108-30110supersedes 52108-30050iARL10,GRL1#201510-202007

main52108-30120supersedes 52108-30150iAWL10,GWL10201510-202007

main52108-30140supersedes 52108-30150iAWL10,GWL10202006-202007

52152BEXTENSION, REAR BUMPER, RH

main52106-30110iGRL10201112-201309

main52106-30170iARL10,GRL1#201510-202007

52153BEXTENSION, REAR BUMPER, LH

main52107-30160iGRL10201112-201309

main52107-30190iARL10,GRL1#201510-202007

52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH

main52155-30110iGRL10201112-201309

52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH

main52156-30080iGRL10201112-201309

52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-30090iGRL10..8FC;AWL10,GRL11,15,GWL10201112-201510

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-30110iGRL10..8FC;AWL10,GRL11,15,GWL10201112-201510

52159COVER, REAR BUMPER

main52159-30620-A0iAWL10,GRL1#,GWL10201112-201510

WHITE PEARL CS.,077

main52159-30620-B0iAWL10,GRL1#,GWL10201112-201510

MERCURY GRAY MC.,1H9

main52159-30620-B1iAWL10,GRL1#,GWL10201112-201510

SONIC SILVER,1J2

main52159-30620-C0iAWL10,GRL1#,GWL10201112-201510

BLACK,212

main52159-30620-C1iAWL10,GRL1#,GWL10201112-201409

BLACK OPAL MC.,214

main52159-30620-C2iAWL10,GRL1#,GWL10201112-201510

STARLIGHT BLACK GF.,217

main52159-30620-D0iAWL10,GRL1#,GWL10201112-201510

CRIMSON CS. GF.,3S8

main52159-30620-E1iAWL10,GRL1#,GWL10201112-201510

FIRE AGATE M.M.,4V3

main52159-30620-E2iARL10,AWL10,GRL1#,GWL10201510-202007

AMBER CS.,4X2

main52159-30620-J0iAWL10,GRL1#,GWL10201112-201510

LAPIS LAZULI MC.,8V3

main52159-30620-J1iAWL10,GRL1#,GWL10201112-201510

METEOR BLUE M.M.,8W3

main52159-30620-J3iARL10,AWL10,GRL1#,GWL10201510-202007

DEEP BLUE MC.,8X5

main52159-30620-A1iAWL10,GRL1#,GWL10201409-201510

main52159-30620-J2iARL10,AWL10,GRL1#,GWL10201510-202007

main52159-30630-A0iGRL10,15,GWL10201112-201309

main52159-30630-B0iGRL10,15,GWL10201112-201309

main52159-30630-B1iGRL10,15,GWL10201112-201309

main52159-30630-C0iGRL10,15,GWL10201112-201309

main52159-30630-C1iGRL1#,GWL10201112-201309

main52159-30630-C2iGRL1#,GWL10201112-201309

main52159-30630-D0iGRL1#,GWL10201112-201309

main52159-30630-E0supersedes 52159-30620-E0iGRL1#,GWL10201112-201309

main52159-30630-E1iGRL1#,GWL10201112-201309

main52159-30630-J0iGRL1#,GWL10201112-201309

main52159-30630-J1iGRL1#,GWL10201112-201309

main52159-30963-A0iAWL10,GRL1#,GWL10201309-201510

main52159-30963-A1iAWL10,GRL1#,GWL10201309-201510

main52159-30963-B0iGWL10201309-201510

main52159-30963-B1iGWL10201309-201510

main52159-30963-B2supersedes 52159-30620-B2iAWL10,GRL1#,GWL10201409-201510

main52159-30963-C0iGWL10201309-201510

main52159-30963-C1iAWL10,GRL1#,GWL10201309-201409

main52159-30963-C2iGWL10201309-201510

main52159-30963-D0iGWL10201309-201510

main52159-30963-E0iAWL10,GRL1#,GWL10201309-201510

main52159-30963-J0iGWL10201309-201510

main52159-30963-J1iAWL10,GRL1#,GWL10201309-201510

main52159-30965-A1iARL10,AWL10,GRL1#,GWL10201510-202007

main52159-30965-A2supersedes 52159-30620-A2iARL10,AWL10,GRL1#,GWL10201510-202007

main52159-30965-B0supersedes 52159-30620-B0iAWL10,GRL1#,GWL10201510-201609

main52159-30965-B1supersedes 52159-30620-B1iARL10,AWL10,GRL1#,GWL10201510-202007

main52159-30965-B2supersedes 52159-30620-B2iAWL10,GWL10201510-202007

main52159-30965-B3supersedes 52159-30620-B3iARL10,AWL10,GRL1#,GWL10202006-202007

main52159-30965-C0supersedes 52159-30620-C0iAWL10,GWL10201510-202007

main52159-30965-C3supersedes 52159-30620-C3iARL10,GRL1#201510-202007

main52159-30965-D2supersedes 52159-30620-D2iARL10,AWL10,GRL1#,GWL10202006-202007

main52159-30965-E1iARL10,GRL1#201510-202007

main52159-30965-J2iARL10,GRL1#201510-202007

main52159-30965-J3iARL10,AWL10,GRL1#,GWL10202006-202007

52161BPIECE, REAR BUMPER

main52161-16010×8iAWL10,GWL10201510-202007

52162BPLATE, REAR BUMPER, NO.1

main52162-30160-A0×2iAWL10,GRL1#,GWL10201112-201510

WHITE PEARL CS.,077

main52162-30160-A1×2iARL10,AWL10,GRL1#,GWL10201510-202007

SONIC QUARTZ,085

main52162-30160-B0×2iAWL10,GRL1#,GWL10201112-201510

MERCURY GRAY MC.,1H9

main52162-30160-B1×2iAWL10,GWL10201510-202007

main52162-30160-B3×2iAWL10,GWL10201510-202007

main52162-30160-B5×2iARL10,AWL10,GRL1#,GWL10201609-202007

DK.GRAY MC.,1G0

main52162-30160-C0×2iAWL10,GWL10201510-202007

BLACK,212

main52162-30160-C1×2iAWL10,GRL1#,GWL10201112-201409

BLACK OPAL MC.,214

main52162-30160-C2×2iAWL10,GRL1#,GWL10201112-201510

STARLIGHT BLACK GF.,217

main52162-30160-C4×2iARL10,AWL10,GRL1#,GWL10201510-202007

GRAPHITE BLACK GF.,223

main52162-30160-D0×2iAWL10,GRL1#,GWL10201112-201510

CRIMSON CS. GF.,3S8

main52162-30160-D1×2iGWL10201510-202007

main52162-30160-E0×2iGRL1#,GWL10201112-201309

SLEEK ECRU ME.,4U7

main52162-30160-E1×2iAWL10,GRL1#,GWL10201112-201510

FIRE AGATE M.M.,4V3

main52162-30160-E2×2iARL10,AWL10,GRL1#,GWL10201510-202007

AMBER CS.,4X2

main52162-30160-J0×2iAWL10,GRL1#,GWL10201112-201510

LAPIS LAZULI MC.,8V3

main52162-30160-J1×2iAWL10,GRL1#,GWL10201112-201510

METEOR BLUE M.M.,8W3

main52162-30160-J6×2iARL10,AWL10,GRL1#,GWL10201510-202007

DEEP BLUE MC.,8X5

main52162-30160-A2×2iAWL10,GRL1#,GWL10201309-201510

main52162-30160-J5×2iARL10,AWL10,GRL1#,GWL10201510-202007

52163APLATE, REAR BUMPER, RH

main52161-30130supersedes 52161-30150iGRL1#201409-201510

main52161-30140supersedes 52161-30180iAWL10,GWL10201409-201510

main52161-30200supersedes 52161-30170iARL10,GRL1#201510-202007

main52161-30210supersedes 52161-30180iAWL10,GWL10201510-202007

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52023-30361iGRL10201112-201309

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-53030iGRL10201112-201309

52198ABRACKET, REAR BUMPER SEAL, LH

main52197-53030iGRL10201112-201309

52463PAD, REAR BUMPER, LH

main52462-30100iGRL10201112-201309

52567ARETAINER, REAR BUMPER, LOWER SIDE

main52535-28020×10iGRL10201112-201309

52567CRETAINER, REAR BUMPER LOWER SIDE, RH

main52567-30070iGRL10201112-201309

52581BPROTECTOR, REAR BUMPER

main52581-30080×2iGRL10201112-201309

52582PROTECTOR, REAR BUMPER, LH

main52582-30050iGRL10..8FC;AWL10,GRL11,15,GWL10201112-201510

52615ABSORBER, REAR BUMPER ENERGY

main52615-30300iGRL1#,GWL10201112-201212

main52615-30301iGRL10201301-201309

75895BTAPE, MOULDING, NO.2

main75895-28010×2iARL10,AWL10,GRL1#,GWL10201510-201707

main75895-30060×2iARL10,AWL10,GRL1#,GWL10201707-202007

8115

89346CADJUSTER, ULTRASONIC SENSOR

main89346-33010×16iAWL10,GRL1#,GWL10201309-201510

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-30030-A0×2iGRL1#,GWL10201112-201309

main89348-30030-B0×2iGRL1#,GWL10201112-201309

main89348-30030-B1×2iGRL1#,GWL10201112-201309

main89348-30030-C0×2iGRL1#,GWL10201112-201309

main89348-30030-C1×2iGRL1#,GWL10201112-201309

main89348-30030-C2×2iGRL1#,GWL10201112-201309

main89348-30030-D0×2iGRL1#,GWL10201112-201309

main89348-30030-E0×2iGRL1#,GWL10201112-201309

main89348-30030-E1×2iGRL1#,GWL10201112-201309

main89348-30030-J0×2iGRL1#,GWL10201112-201309

main89348-30030-J1×2iGRL1#,GWL10201112-201309

main89348-33110×2iAWL10,GRL1#,GWL10201309-201510

main89348-78020×2iARL10,AWL10,GRL1#,GWL10201510-202007

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-30030-A0×2iGRL1#,GWL10201112-201309

main89348-30030-B0×2iGRL1#,GWL10201112-201309

main89348-30030-B1×2iGRL1#,GWL10201112-201309

main89348-30030-C0×2iGRL1#,GWL10201112-201309

main89348-30030-C1×2iGRL1#,GWL10201112-201309

main89348-30030-C2×2iGRL1#,GWL10201112-201309

main89348-30030-D0×2iGRL1#,GWL10201112-201309

main89348-30030-E0×2iGRL1#,GWL10201112-201309

main89348-30030-E1×2iGRL1#,GWL10201112-201309

main89348-30030-J0×2iGRL1#,GWL10201112-201309

main89348-30030-J1×2iGRL1#,GWL10201112-201309

main89348-33110×2iAWL10,GRL1#,GWL10201309-201510

main89348-78020×2iARL10,AWL10,GRL1#,GWL10201510-202007

9012908001

main90129-08001

9015960431

main90159-60431

9015960477

main90159-60477

9015960500

main90159-60500

9015960602

main90159-60602

9018906006

main90189-06006

9018906211

main90189-06211

9018906228

main90189-06228

9046707201

main90467-07201

9046709237

main90467-09237

35 parts on this diagram · 2 diagrams in section
