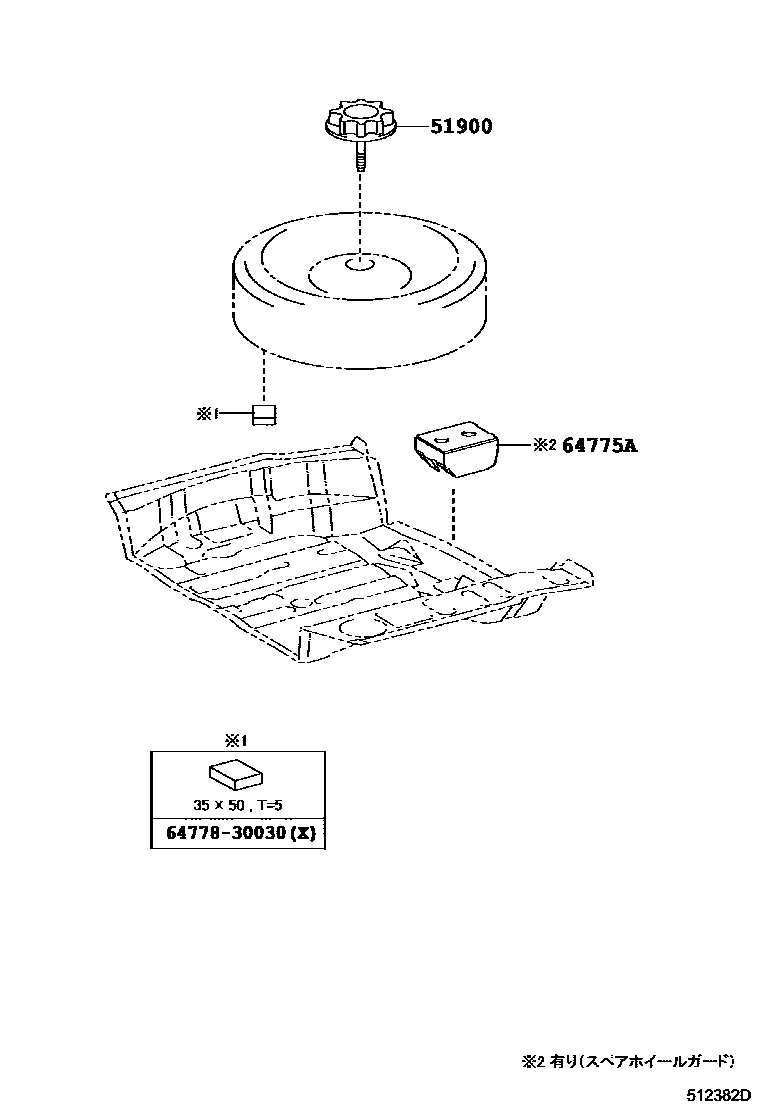

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51931-30010iGRL10201112-201309

main51931-53030iARL10,AWL10,GRL1#,GWL10201510-202007

64775AGUARD, SPARE WHEEL

main64775-30050iAWL10201203-201409

main64775-30051iGWL10201501-201510

6477830030FASTENER, SPARE WHEEL COVER

main64778-30030

3 parts on this diagram · 1 diagram in section
