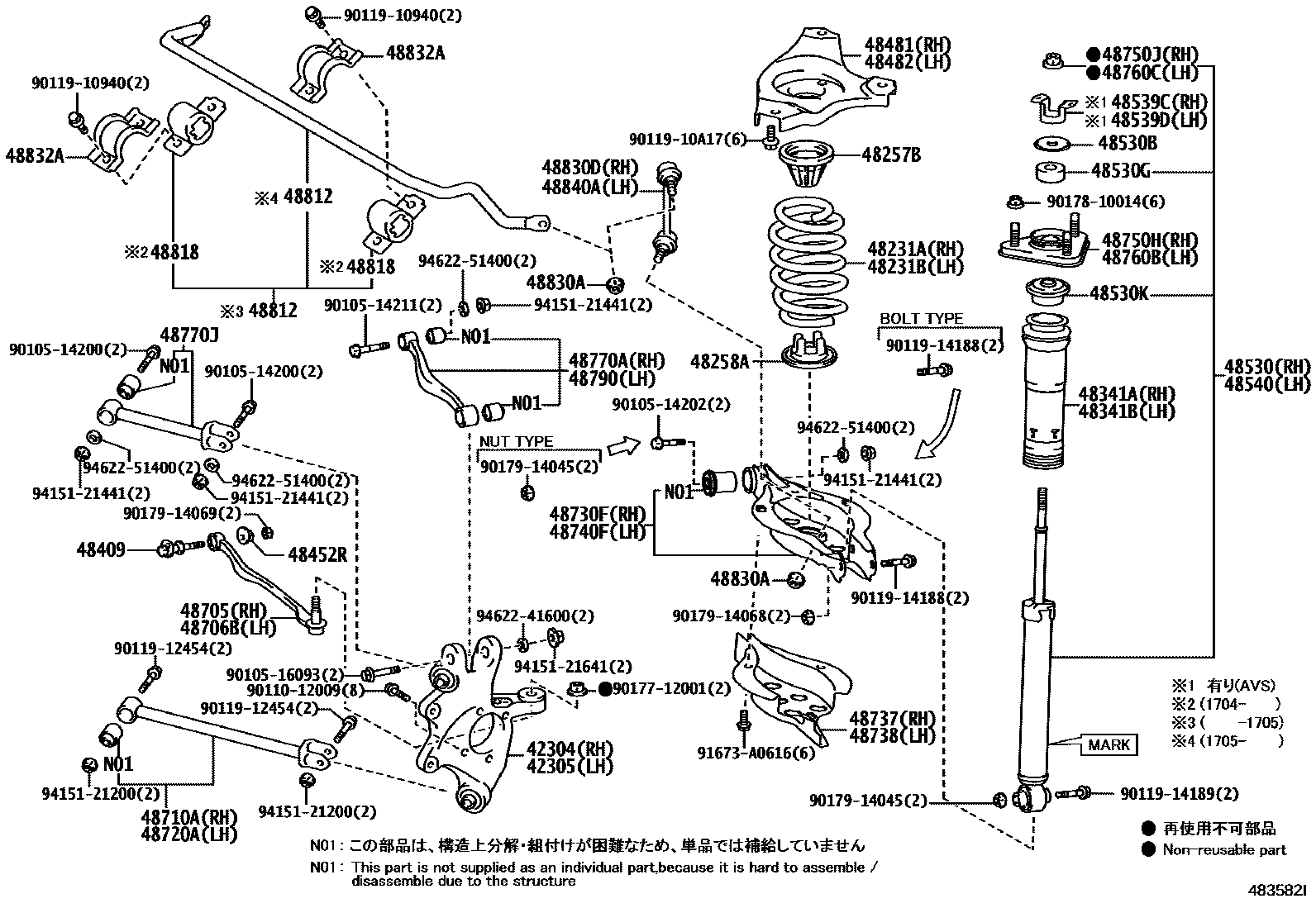

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42305CARRIER SUB-ASSY, REAR AXLE, LH
48257BINSULATOR, REAR COIL SPRING, UPPER
48258AINSULATOR, REAR COIL SPRING, LOWER
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2
48481SEAT, REAR SPRING, UPPER
48482SEAT, REAR SPRING, UPPER LH
48530ABSORBER ASSY, SHOCK, REAR RH
sub48530-80709
sub48530-80710
sub48530-80712
sub48530-80714
sub48530-80756
sub48530-80756
sub48530-80756
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
48530KCUSHION, REAR SHOCK ABSORBER, NO.2
48539CBRACKET, ACTUATOR SUPPORT, REAR RH
48539DBRACKET, ACTUATOR SUPPORT, REAR LH
48540ABSORBER ASSY, SHOCK, REAR LH
sub48530-80709
sub48530-80710
sub48530-80712
sub48530-80714
sub48530-80756
sub48530-80756
sub48530-80756
48705LINK SUB-ASSY, TOE CONTROL, RH
48706BLINK SUB-ASSY, TOE CONTROL, LH
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
48737COVER, REAR SUSPENSION ARM, RH
48738COVER, REAR SUSPENSION ARM, LH
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48760BSUPPORT ASSY REAR SUSPENSION, LH
48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
48770AARM ASSY, UPPER CONTROL, REAR RH
48790ARM ASSY, UPPER CONTROL, REAR LH
48818BUSH, STABILIZER, REAR
48830ANUT(FOR REAR STABILIZER LINK)
48830DLINK ASSY, REAR STABILIZER, RH
48832ABRACKET, REAR STABILIZER BAR, NO.1
48840ALINK ASSY, REAR STABILIZER, LH
9010514200
main90105-14200
9010514202
main90105-14202
9010514211
main90105-14211
9010516093
main90105-16093
9011012009
main90110-12009
9011910940
main90119-10940
9011910A17
main90119-10A17
9011912454
main90119-12454
9011914188
main90119-14188
9011914189
main90119-14189
9017712001
main90177-12001
9017810014
main90178-10014
9017914045
main90179-14045
9017914068
main90179-14068
9017914069
main90179-14069
91673A0616
main91673-A0616
9415121200
main94151-21200
9415121441
main94151-21441
9415121641
main94151-21641
9462241600
main94622-41600
9462251400
main94622-51400
61 parts on this diagram · 2 diagrams in section
