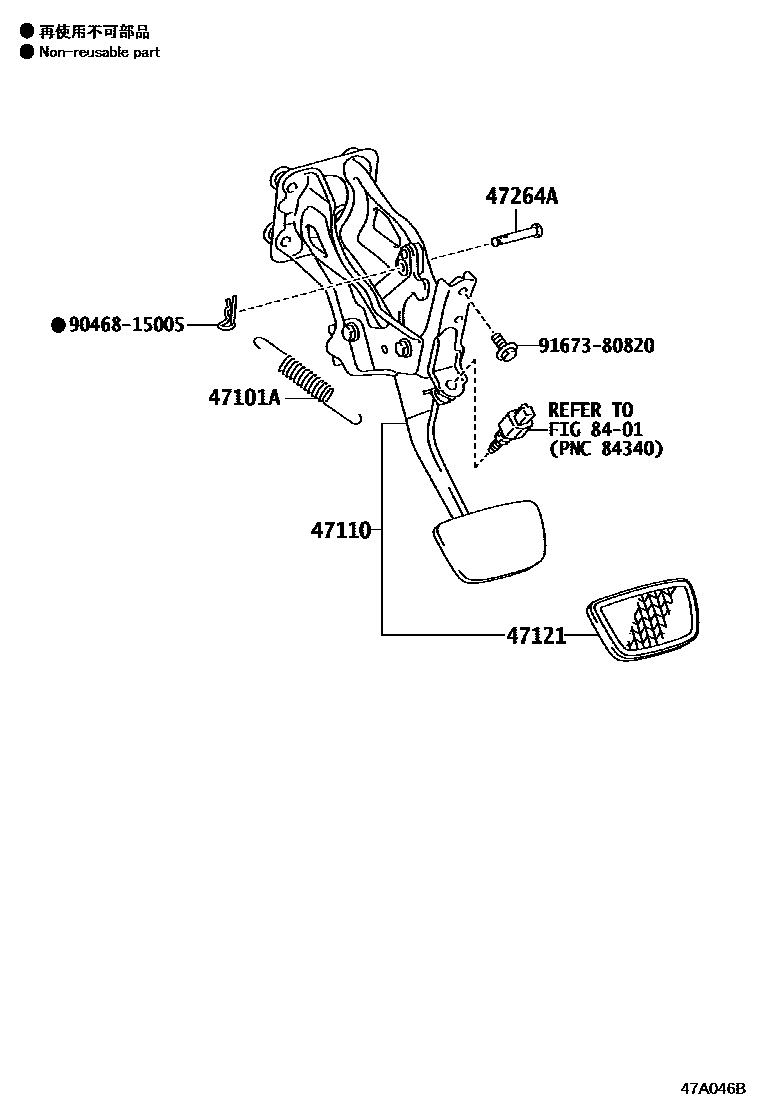

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12045iAWL10,GWL10201510-202007

main90507-13009iARL10,GRL1#201510-202007

47110SUPPORT ASSY, BRAKE PEDAL

main47110-24180iARL10,GRL1#202006-202007

main47110-24190supersedes 47110-30600iAWL10,GWL10201510-202007

main47110-30570supersedes 47110-30560iGRL1#201410-201510

main47110-30610supersedes 47110-30600iAWL10,GWL10201410-201510

47121PAD, BRAKE PEDAL

main47121-11010supersedes 47121-48010iARL10,AWL10,GRL1#,GWL10201902-201909

main47121-24010supersedes 47121-30080iGRL11201510-202007

main47121-30090supersedes 47121-30080iGRL10..8FC;AWL10,GRL11,15,GWL10201112-201510

47264APIN(FOR PUSH ROD)

main90249-06180iGRL10201112-201309

main90249-10199iAWL10,GWL10201203-201510

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9046815005

main90468-15005

9167380820

main91673-80820

7 parts on this diagram · 2 diagrams in section
