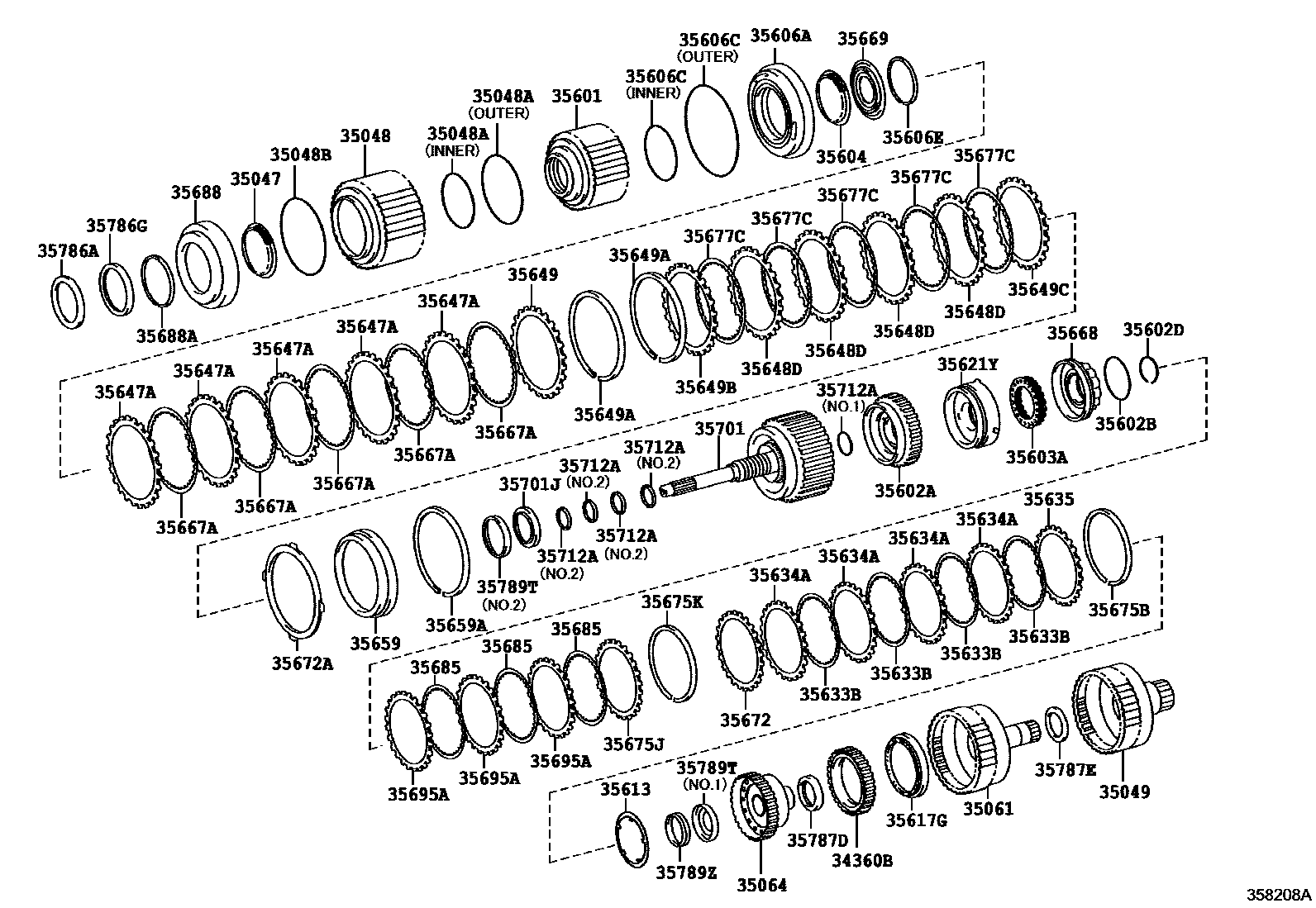

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
34360BCLUTCH ASSY, UNDERDRIVE 1 WAY
35047SPRING SUB-ASSY, REVERSE CLUTCH RETURN
35048PISTON SUB-ASSY, REVERSE CLUTCH
35048ARING, O (FOR REVERSE CLUTCH PISTON)
35048BRING, O (FOR REVERSE CLUTCH PISTON)
35049HUB SUB-ASSY, REVERSE CLUTCH
35061HUB SUB-ASSY, FORWARD CLUTCH
35601DRUM SUB-ASSY, CLUTCH
35602APISTON SUB-ASSY, FORWARD CLUTCH
35602BRING, O (FOR FORWARD CLUTCH PISTON)
35602DRING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRING)
35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN
35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN
35606APISTON SUB-ASSY, DIRECT CLUTCH
35606CRING, O (FOR DIRECT CLUTCH PISTON)
35606ERING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRING)
35613RING, CLUTCH PISTON OIL SEAL, OUTER
35617GRING, CLUTCH DRUM OIL SEAL
35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35635FLANGE, FORWARD CLUTCH
35647APLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35649FLANGE, REVERSE CLUTCH
35649ARING, HOLE SNAP(FOR REVERSE CLUTCH FLANGE)
35649BFLANGE, REVERSE CLUTCH
35649CFLANGE, REVERSE CLUTCH
35659SLEEVE, REVERSE CLUTCH REACTION
35659ARING, SNAP (FOR REVERSE CLUTCH REACTION SLEEVE)
35668BALANCER, CLUTCH, NO.1
35669BALANCER, CLUTCH, NO.2
35672PLATE, CLUTCH CUSHION
35672APLATE, CLUTCH CUSHION (FOR DIRECT MULTIPLE DISC CLUTCH)
35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)
35675JFLANGE, COAST CLUTCH
35675KRING, SNAP (FOR COAST CLUTCH FLANGE)
35688BALANCER, CLUTCH, NO.3
35688ARING, SNAP (FOR REVERSE CLUTCH RETURN SPRING)
35701JBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT FRONT)
35712ARING, INPUT SHAFT OIL SEAL
35786ARACE, THRUST BEARING, NO.1
35786GBEARING,THRUST NEEDLE ROLLER
35787DBEARING, THRUST NEEDLE ROLLER
35787EBEARING, THRUST NEEDLE ROLLER
35789TRACE, THRUST BEARING (INPUT SHAFT REAR)
35789ZBEARING, THRUST NEEDLE ROLLER
53 parts on this diagram · 3 diagrams in section
