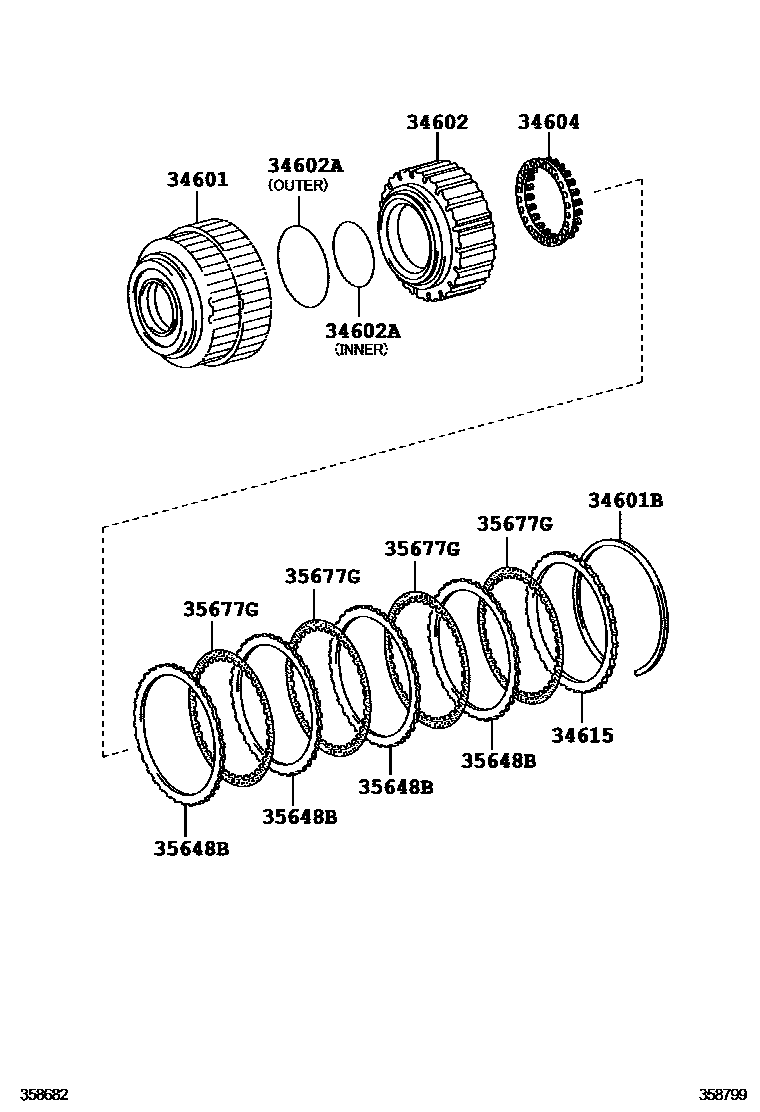

OVERDRIVE GEAR (ATM)

34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main35601-30010iGRL10201309-201510

main35601-53010iARL10201609-202007

34601BRING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH)

main90521-99141iGRL10201309-201510

34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main35612-50040iARL10,GRL12201510-202007

34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)

main90301-77002iGRL10201309-201510

main90301-99086iGRL10201309-201510

34604SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN

main34604-50020iGRL10201309-201510

34615FLANGE, OVERDRIVE CLUTCH

main34615-50060iARL10,GRL12201510-202007

main34615-50070iGRL10201309-201510

main34615-50080iGRL10201309-201510

main34615-50090iARL10,GRL12201510-202007

main34615-50100iGRL10201309-201510

main34615-50110iGRL10201309-201510

main34615-50120iGRL10201309-201510

35648BPLATE, CLUTCH (FOR OVERDRIVE BRAKE)

main35648-50020×4iGRL10201309-201510

35677GDISC, CLUTCH, NO.3 (FOR OVERDRIVE)

main35677-30200×4iGRL10201309-201510

8 parts on this diagram · 1 diagram in section
