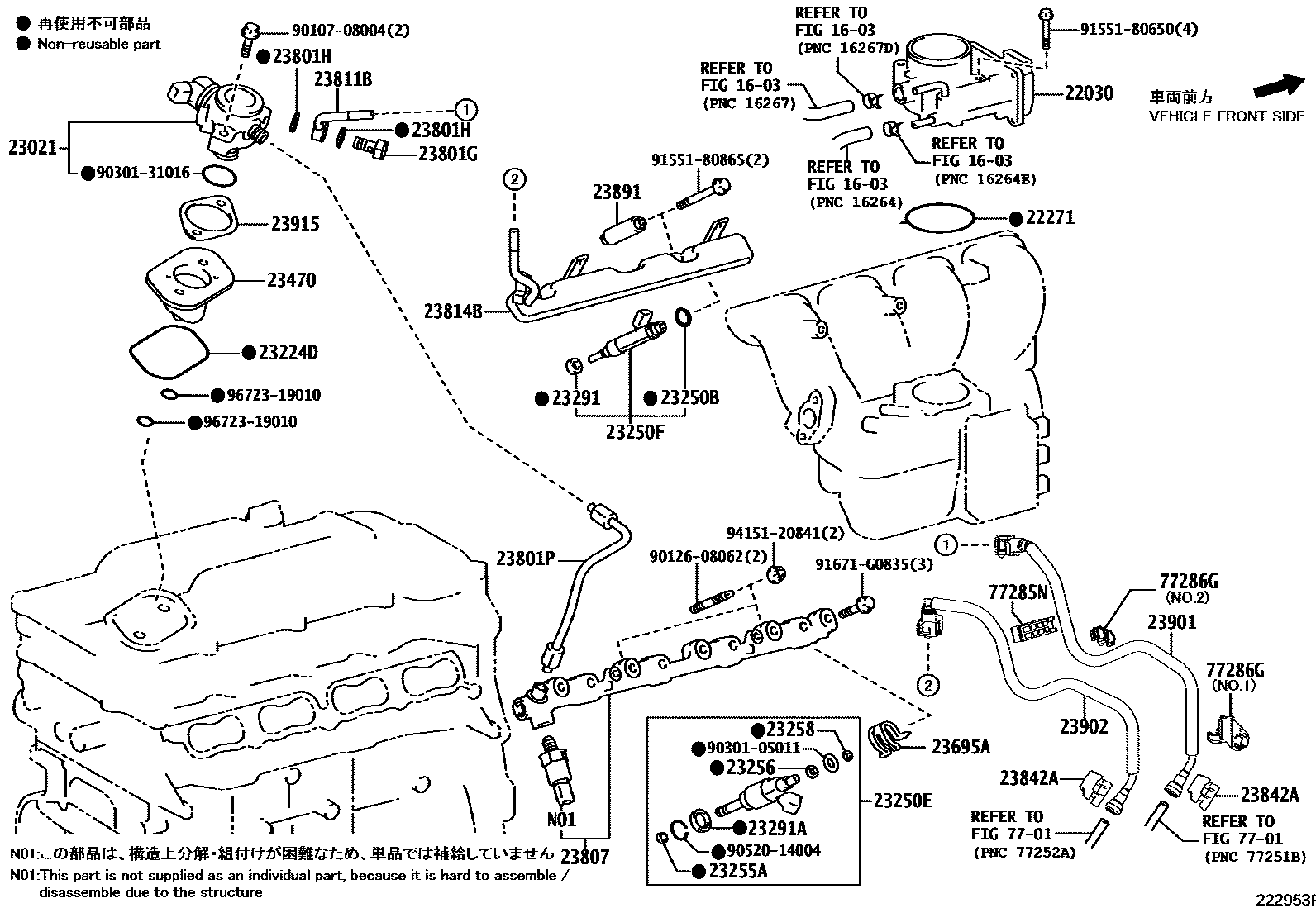

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1�����NO.=W****** 0004 1�����NO.=Z****** 0005 1 0006 1 0007 1 0008 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-31020i4GRFSE..GRL11201510-201608

main22030-31040i2GRFSE..GRL15;2GRFSE..GRL10..8FC201112-201510

main22030-31070i2GRFXE..GWL10201203-201510

main22030-31100i2GRFKS..GRL12,16201510-202007

main22030-36030i2ARFSE..AWL10201510-202007

main22030-36050i8ARFTS..ARL10201609-202007

22271GASKET, THROTTLE BODY

main22271-31020i2GRFXE..GWL10201510-202007

main22271-31030i4GRFSE..GRL11201112-201510

main22271-31040i2GRFKS..GRL12,16201510-202007

main22271-36030i2ARFSE..AWL10201510-202007

main22271-36040i8ARFTS..ARL10201609-202007

23021PUMP SUB-ASSY, FUEL W/SEAL

main23021-36010i2ARFSE..AWL10201309-201510

main23021-36050i2ARFSE..AWL10201709-201903

main23021-38020i2ARFSE..AWL10201904-202007

23224GASKET, FUEL PUMP SPACER, RH

main23224-31010i2GRFXE..GWL10201203-201510

23224DGASKET, FUEL PUMP SPACER

main23224-31020i2GRFKS..GRL12,16201510-202007

main23224-36010i2ARFSE..AWL10201309-201510

main23224-36020i8ARFTS..ARL10201609-202007

23250INJECTOR ASSY, FUEL

main23209-39057-A0×6i4GRFSE..GRL11201510-201608

MARK BLACK

main23209-39057-B0×6i4GRFSE..GRL11201112-201510

MARK BROWN

23250BRING, O(FOR FUEL INJECTOR)

main90301-05011×6i2GR#..GRL12,16,GWL10201510-201901

main90301-05013×6i2GR#..GRL1#,GWL10201902-202007

main90301-06018×6i2GRFSE,4GRFSE..GRL1#201112-201510

main90301-07037×4i2ARFSE,8ARFTS..ARL10,AWL10201908-202007

main90301-C0072×4i2ARFSE,8ARFTS..ARL10,AWL10201908-202007

23250EINJECTOR ASSY, FUEL(FOR DIRECT)

main23209-31120-01×6i2GRFXE..GWL10201304-201510

MARK 1

main23209-31120-02×6i2GRFXE..GWL10201510-202007

MARK 2

main23209-31120-03×6i2GRFXE..GWL10201304-201510

MARK 3

main23209-31150-01×6i2GRFXE..GWL10201203-201304

MARK 1

main23209-31150-02×6i2GRFXE..GWL10201203-201304

MARK 2

main23209-31150-03×4i2ARFSE..AWL10201309-201510

main23209-31170-06×6i2GRFKS..GRL12,16201510-202007

MARK 6

main23209-31170-07×6i2GRFKS..GRL12,16201510-202007

MARK 7

main23209-31170-08×6i2GRFKS..GRL12,16201510-202007

MARK 8

main23209-36030-01×4i8ARFTS..ARL10201609-202007

main23209-36030-02×4i8ARFTS..ARL10201609-202007

main23209-36030-03×4i8ARFTS..ARL10201609-202007

main23209-39155-A0×6i2GRFSE..GRL10,15201112-201510

MARK YELLOW

main23209-39155-B0×6i2GRFSE..GRL10,15201112-201510

MARK BLACK

main23209-39155-C0×6i2GRFSE..GRL10,15201112-201510

MARK BROWN

main23209-39155-D0×6i2GRFSE..GRL10,15201112-201510

MARK GREEN

23250FINJECTOR ASSY, FUEL(FOR PORT)

main23209-31070×6i2GRFSE..GRL10,15201112-201510

main23209-39275×4i2ARFSE..AWL10201309-201510

main23209-39325×6i2GRFXE..GWL10201510-202007

main23209-39435×6i2GRFKS..GRL1#202002-202007

23255ASEAL, FUEL INJECTOR

main23255-31010×12i2GRFSE..GRL10..8FC;2GRFSE,4GRFSE..GRL11,15201112-201510

main23255-31020×4i2ARFSE,8ARFTS..ARL10,AWL10; 2GR#..GRL12,16,GWL10201510-201901

main23255-31030×6i2ARFSE,8ARFTS..ARL10,AWL10; 2GR#..GRL1#,GWL10201902-202007

23256RING, FUEL INJECTOR BACK-UP, NO.1

main23256-25010×4i2ARFSE,8ARFTS..ARL10,AWL10; 2GRFKS..GRL1#; 2GRFXE..GWL10201902-202007

main23256-31010×6i2ARFSE,8ARFTS..ARL10,AWL10; 2GRFKS..GRL12,16; 2GRFXE..GWL10201510-201901

main23256-74010×6i2GRFSE..GRL10201112-201309

23258RING, FUEL INJECTOR BACK-UP, NO.3

main23258-28011×6i2GRFSE..GRL10..8FC;2GRFSE,4GRFSE..GRL11,15201112-201510

main23258-31010×6i2GRFXE..GWL10201203-201510

main23258-31020×6i2GRFKS..GRL12,16201510-202007

main23258-36010×4i8ARFTS..ARL10201609-202007

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×6i2GRFXE..GWL10201203-201510

main23291-28020×6i2GRFXE..GWL10201805-202007

main23291-31011×6i4GRFSE..GRL11201510-201608

main23291-31030×6i2GRFKS..GRL12,16201510-202007

23291AINSULATOR, INJECTOR VIBRATION

main23291-23010×6i2GRFKS..GRL12,16201510-201803

main23291-28020×6i2GRFKS..GRL1#201804-202007

main23291-31020×4i2ARFSE..AWL10201309-201510

23470LIFTER ASSY, FUEL PUMP

main23460-36010i2ARFSE..AWL10201309-201510

main23470-25010i2GRFKS..GRL1#201704-202007

main23470-31010i2GRFXE..GWL10201203-201510

main23470-36020i8ARFTS..ARL10201609-202007

23695ACLAMP, NOZZLE HOLDER

main23695-31010×6i2GRFSE..GRL10201112-201309

main23695-31020×4i2ARFSE,8ARFTS..ARL10,AWL10; 2GR#..GRL12,16,GWL10201510-202007

23801GBOLT, UNION(FOR FUEL PIPE)

main90401-12041i2ARFSE..AWL10201309-201312

23801HGASKET(FOR FUEL PIPE)

main23232-41081i2ARFSE..AWL10201312-201409

main90430-12026i2ARFSE..AWL10201410-201510

main90430-13006×2i2ARFSE..AWL10201309-201312

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-31200i2GRFXE..GWL10201510-202007

main23801-31210i2GRFKS..GRL12,16201510-202007

main23801-36020i2ARFSE..AWL10201309-201510

main23801-36031i8ARFTS..ARL10201609-201809

main23801-36110i8ARFTS..ARL10201809-202007

23807PIPE SUB-ASSY, FUEL DELIVERY

main23800-36010i2ARFSE..AWL10201309-201311

main23800-36011i2ARFSE..AWL10201311-201510

main23800-36020i8ARFTS..ARL10201809-202007

main23800-36050i8ARFTS..ARL10201609-201809

main23807-31062i2GRFSE..GRL10201112-201411

main23807-31140i2GRFXE..GWL10201203-201510

main23807-31150i2GRFSE..GRL10201411-201510

23811BPIPE, FUEL, NO.1

main23811-31080i2GRFXE..GWL10201203-201510

main23811-36030i2ARFSE..AWL10201309-201312

main23811-36040i2ARFSE..AWL10201312-201506

main23811-36041i2ARFSE..AWL10201510-202007

23814BPIPE, FUEL DELIVERY

main23800-36040i8ARFTS..ARL10201609-202007

main23814-36060i2ARFSE..AWL10201510-202007

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-28010×2i2ARFSE,8ARFTS..ARL10,AWL10201510-202007

main23842-38010i2GRFXE..GWL10201203-201510

23891SPACER, FUEL DELIVERY

main23891-36020×2i2ARFSE..AWL10201309-201510

main23891-36030×2i8ARFTS..ARL10201609-202007

23901TUBE SUB-ASSY, FUEL

main23901-31270i2GRFXE..GWL10201510-202007

main23901-31280i2GRFKS..GRL12,16201510-202007

main23901-31310i4GRFSE..GRL11201510-201608

main23901-31330i2GRFKS..GRL12,16201510-202007

main23901-36090i2ARFSE..AWL10201309-201312

main23901-36091i2ARFSE..AWL10201312-201510

main23901-36190i8ARFTS..ARL10201609-202007

23902TUBE SUB-ASSY, FUEL

main23902-31012i2GRFSE..GRL10,15201112-201510

main23902-31040i2GRFXE..GWL10201510-202007

main23902-31090i2GRFKS..GRL12,16201510-202007

main23902-36010i2ARFSE..AWL10201309-201510

main23902-36070i8ARFTS..ARL10201609-202007

23915INSULATOR, FUEL PUMP

main23915-31010i2ARFSE..AWL10; 2GRFXE..GWL10201510-202007

main23915-46011i2GRFSE..GRL10201112-201309

7701FUEL TANK & TUBE

→ Go to FIG 77-01

77285NCLAMP, FUEL TUBE, NO.1

main77285-30340iAWL10201309-201509

main77285-30380iARL10,AWL10201510-202007

77286GCLAMP, FUEL TUBE, NO.2

main77281-30150iAWL10201510-202007

main77281-50040iAWL10201510-202007

main77281-78020iARL10201609-202007

9010708004

main90107-08004

9012608062

main90126-08062

9030105011

main90301-05011

9030131016

main90301-31016

9052014004

main90520-14004

9155180650

main91551-80650

9155180865

main91551-80865

91671G0835

main91671-G0835

9415120841

main94151-20841

9672319010

main96723-19010

41 parts on this diagram · 8 diagrams in section
