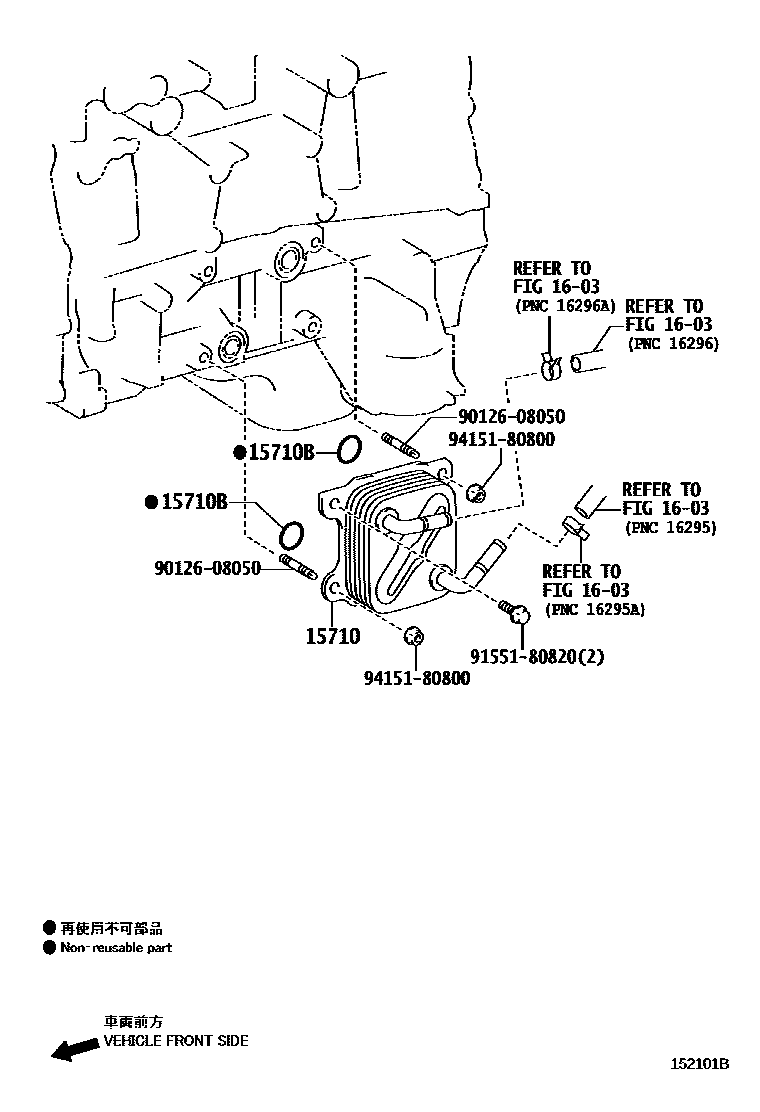

ENGINE OIL COOLER

0001 1 0002 1 0003 1

15710COOLER ASSY, OIL

main15710-36020i2ARFSE..AWL10201309-202007

main15710-36050i8ARFTS..ARL10201609-202007

15710BRING, O(FOR OIL COOLER)

main90301-23017i8ARFTS..ARL10201609-202007

main96723-35024i2ARFSE..AWL10201309-202007

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

9012608050

main90126-08050

9155180820

main91551-80820

9415180800

main94151-80800

6 parts on this diagram · 3 diagrams in section
