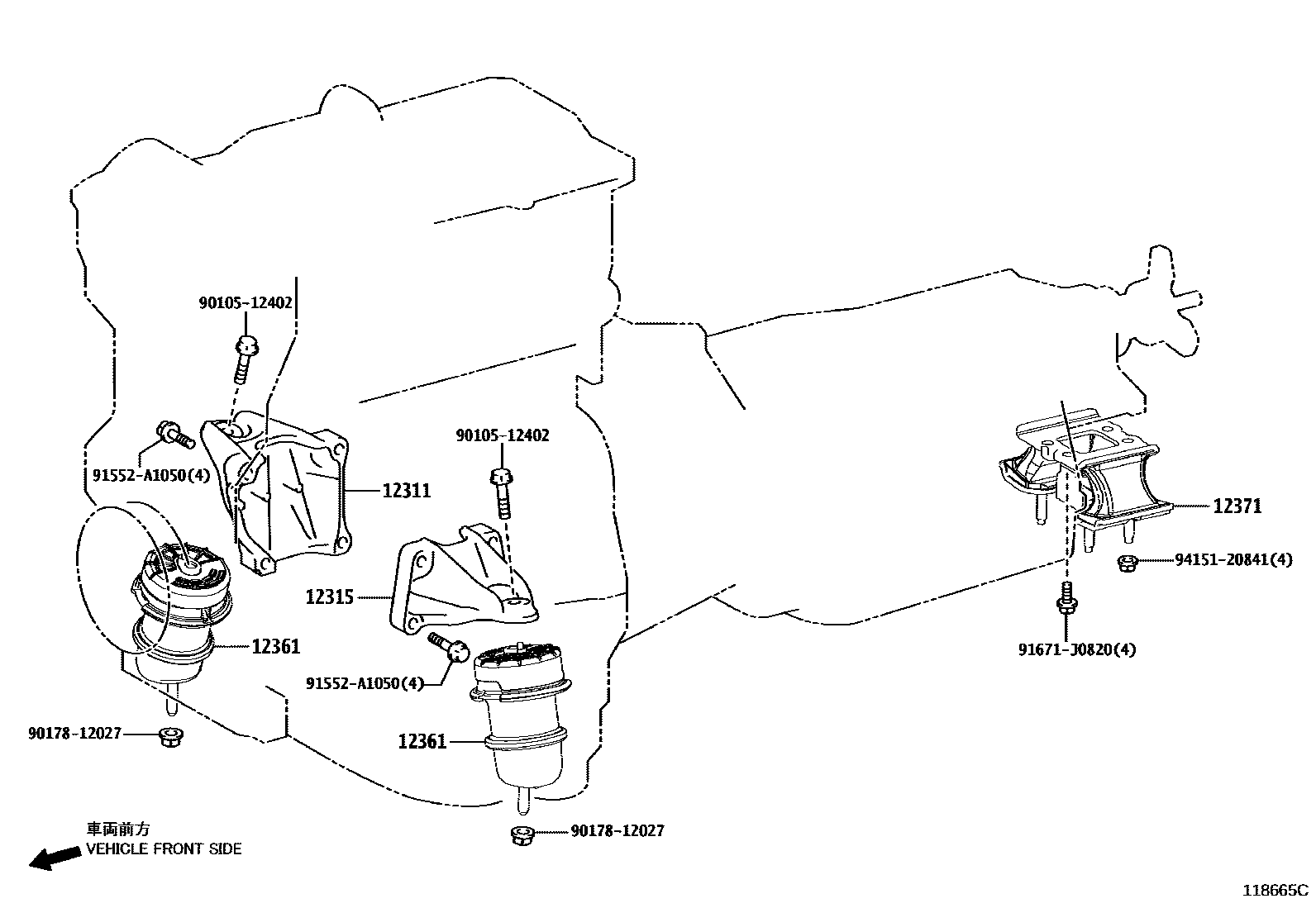

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-31040i2GRFSE..GRL10..8FC;2GRFXE,4GRFSE..GRL11,GWL10201112-202007

main12311-31050i2GRFKS..GRL16201112-202007

main12311-36100i2ARFSE..AWL10201309-202007

main12311-36130i8ARFTS..ARL10201609-202007

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12302-31010i2GRFSE..GRL10201112-202007

main12302-31020i2GRFSE..GRL15201112-201510

main12315-31170i2GRFKS..GRL12201510-202007

main12315-31180i2GRFKS..GRL16201510-202007

main12315-36020i2ARFSE..AWL10201309-202007

main12315-36040i8ARFTS..ARL10201609-202007

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-31310i2GRFSE..GRL10..8FC;2GRFXE,4GRFSE..GRL11,GWL10201112-201510

main12361-31320i2GRFKS..GRL16201112-201705

main12361-31321i2GRFKS..GRL16201706-202007

main12361-31430i2GR#,4GRFSE..GRL11,12,GWL10201510-202007

main12361-36140i2ARFSE..AWL10201309-201705

main12361-36141i2ARFSE..AWL10201706-202007

main12361-36220i8ARFTS..ARL10201609-202007

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-31270i2ARFSE..AWL10201112-202004

main12371-31280i2GRFXE..GWL10201203-202007

main12371-31290i2GRFSE..GRL15201112-201508

main12371-31291i2GRFSE..GRL15201509-202007

main12371-36280i2GRFKS..GRL12202005-202007

9010512402

main90105-12402

9017812027

main90178-12027

91552A1050

main91552-A1050

91671J0820

main91671-J0820

9415120841

main94151-20841

9 parts on this diagram · 7 diagrams in section
