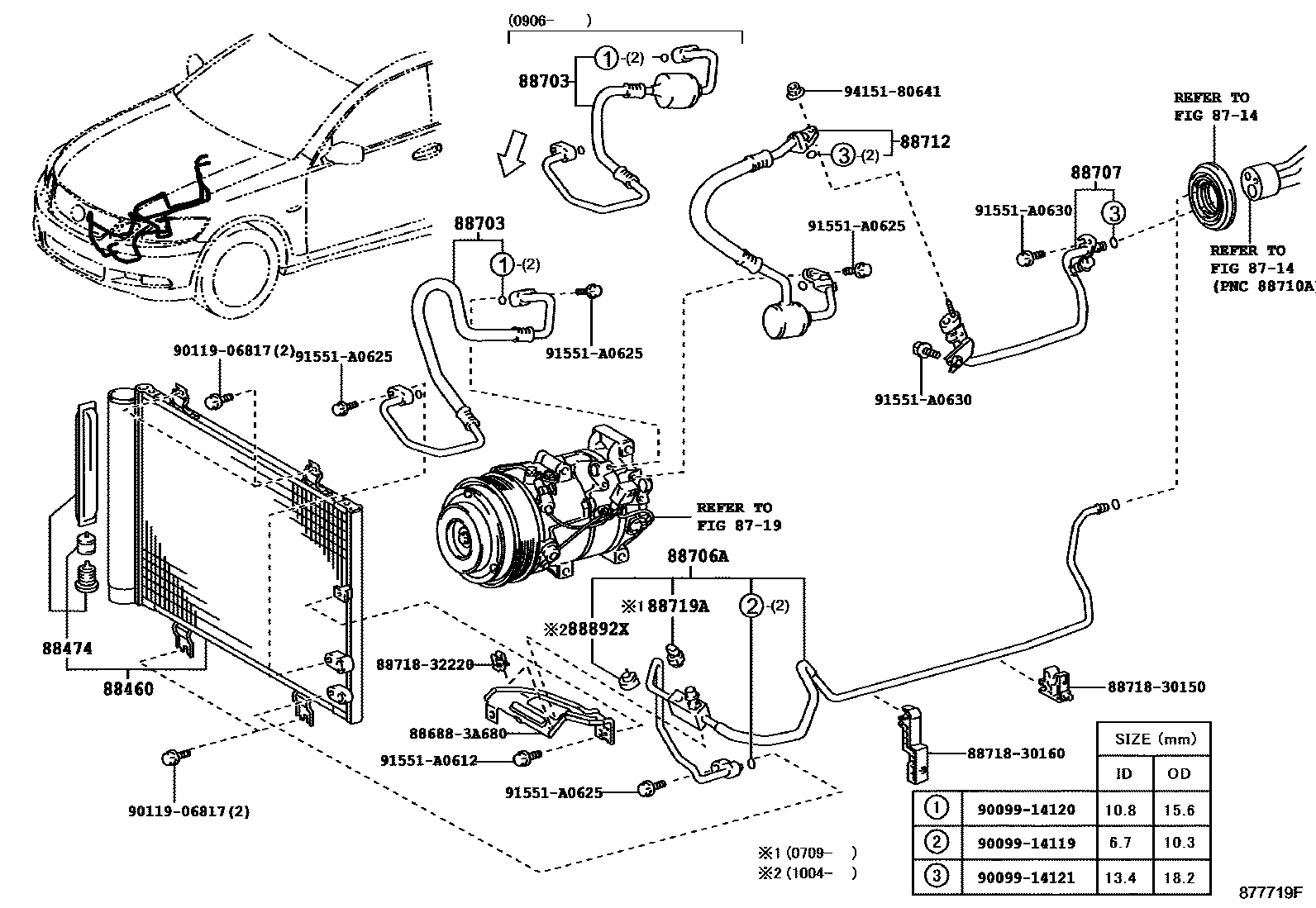

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88460CONDENSER ASSY, COOLER

main88460-30871iGRS19#,UZS190200508-200709

main88460-30A90iURS190200709

88474DRYER, COOLER

main88474-17010iGRS19#,UZS190200508-200709

main88474-47020iURS190200709

88703HOSE SUB-ASSY, DISCHARGE

main88711-3A590iUZS190200508-200709

main88711-3A600iGRS19#200508-200709

main88711-3A601iGRS19#200906

main88711-3A640iURS190200709

88706ATUBE SUB-ASSY, LIQUID, A

main88706-3A430iGRS19#,UZS190200508-200709

main88706-3A431iGRS19#201007

main88706-3A480iURS190200709

88707PIPE SUB-ASSY, SUCTION

main88707-30690iGRS19#,UZS190200508-200709

main88707-30830iURS190200709

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-30160iGRS19#200508-200709

main88712-30170iUZS190200508-200709

main88712-30230iURS190200709

main88712-30350iGRS19#200906

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iGRS19#,URS190201004

main88719-40020iGRS19#,URS190200709-201004

88892XCOVER, COOLER, NO.2

main88892-50120iGRS19#,URS190201004

886883A680BRACKET, COOLER DIAPHRAGM

main88688-3A680

8871830150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-30150

8871830160PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-30160

8871832220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32220

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9011906817

main90119-06817

91551A0612

main91551-A0612

91551A0625

main91551-A0625

91551A0630

main91551-A0630

9415180641

main94151-80641

22 parts on this diagram · 3 diagrams in section
