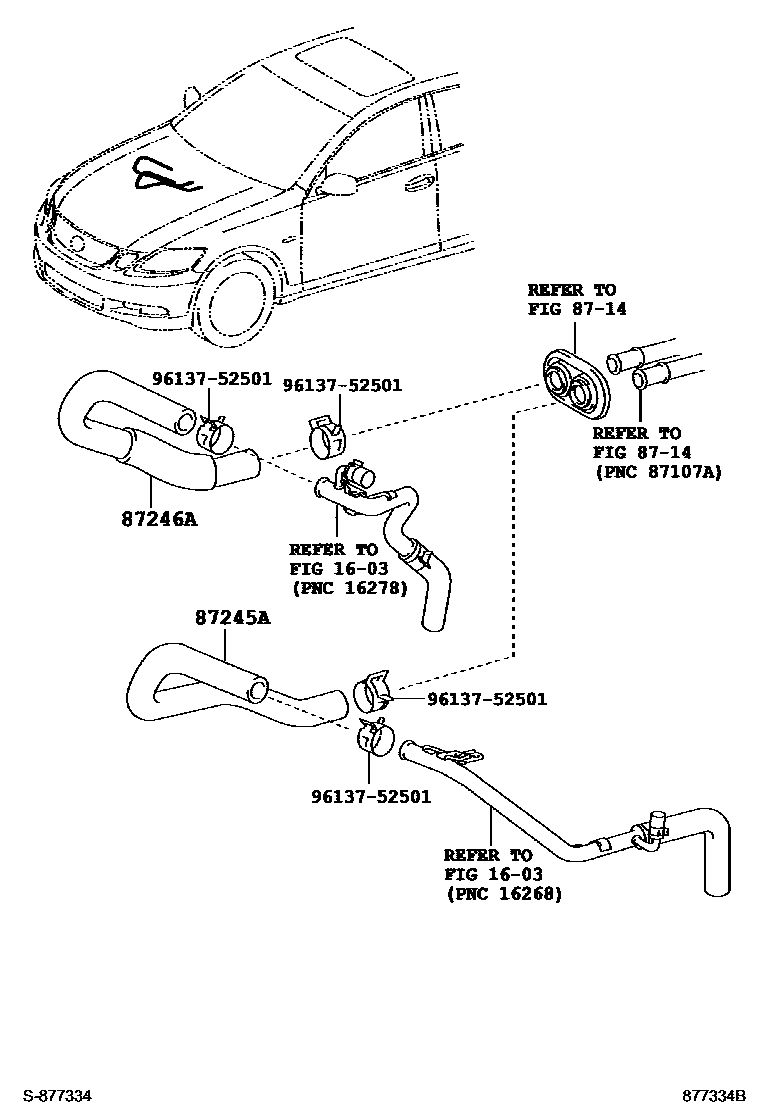

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245AHOSE, HEATER WATER, INLET A

main87245-30A00iUZS190200508-200709

main87245-30A70iGRS19#200508-200709

main87245-53180iGRS19#200709-201112

main87245-53190iURS190200709-201112

87246AHOSE, HEATER WATER, OUTLET A

main87245-30A10iUZS190200508-200709

main87245-30A40iGRS19#200508-200709

main87245-30A41iGRS19#200709

main87245-30C10iURS190200709

9613752501

main96137-52501

5 parts on this diagram · 3 diagrams in section
