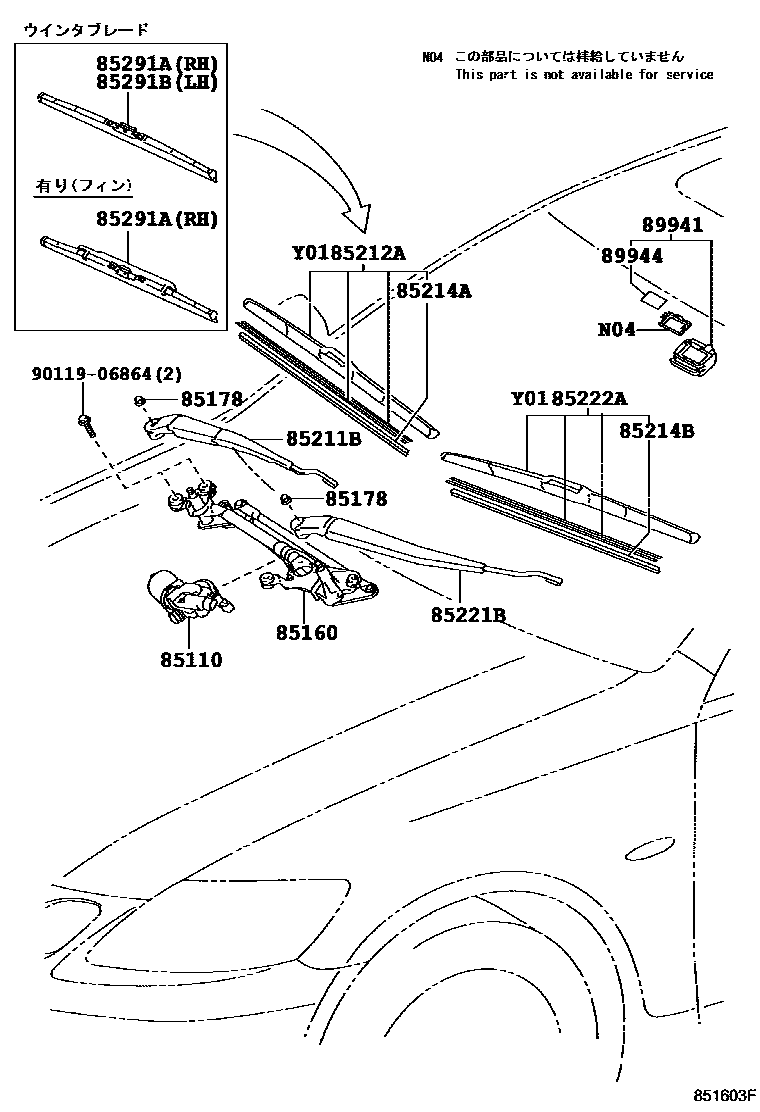

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-30510iGRS19#,UZS190200508-200608

main85110-30511iGRS19#,URS190200709

85160LINK ASSY, WINDSHIELD WIPER

main85150-30570supersedes 85150-30560iGRS19#,URS190200709-200710

main85150-30700supersedes 85150-30560iGRS19#,URS190200710

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005×2iGRS19#,UZS190200508-200709

85211BARM, FRONT WIPER, RH

main85211-30700supersedes 85211-30650iGRS19#,UZS190200508-200709

85212ABLADE, FR WIPER, RH

main85212-30410iGRS19#,UZS190200508-200709

85214ARUBBER, WIPER, RH

main85214-30380iGRS19#,UZS190200508-200709

85214BRUBBER, WIPER, LH

main85214-30390iGRS19#,UZS190200508-200709

85221BARM, FRONT WIPER, LH

main85221-30600supersedes 85221-30550iGRS19#,UZS190200508-200709

85222ABLADE, FR WIPER, LH

main85222-30580iGRS19#,UZS190200508-200709

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-30060iGRS19#,URS190200802-201112

main85291-50060iGRS19#,URS190200709-201112

main85291-50070iGRS19#,UZS190200508-200709

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-33050iGRS19#,UZS190200508-200709

89941SENSOR, RAIN

main89941-30010iGRS19#,UZS190200508-200509

main89941-30011iGRS19#,UZS190200509-200709

main89941-30012iGRS19#,URS190200709-200808

main89941-30013iGRS19#,URS190200809-200909

main89941-30014iGRS19#,URS190200909

89944TAPE, RAIN SENSOR

main89944-30020iGRS19#,UZS190200509-200709

main89944-50011iGRS19#,UZS190200508-200509

9011906864

main90119-06864

14 parts on this diagram · 1 diagram in section
