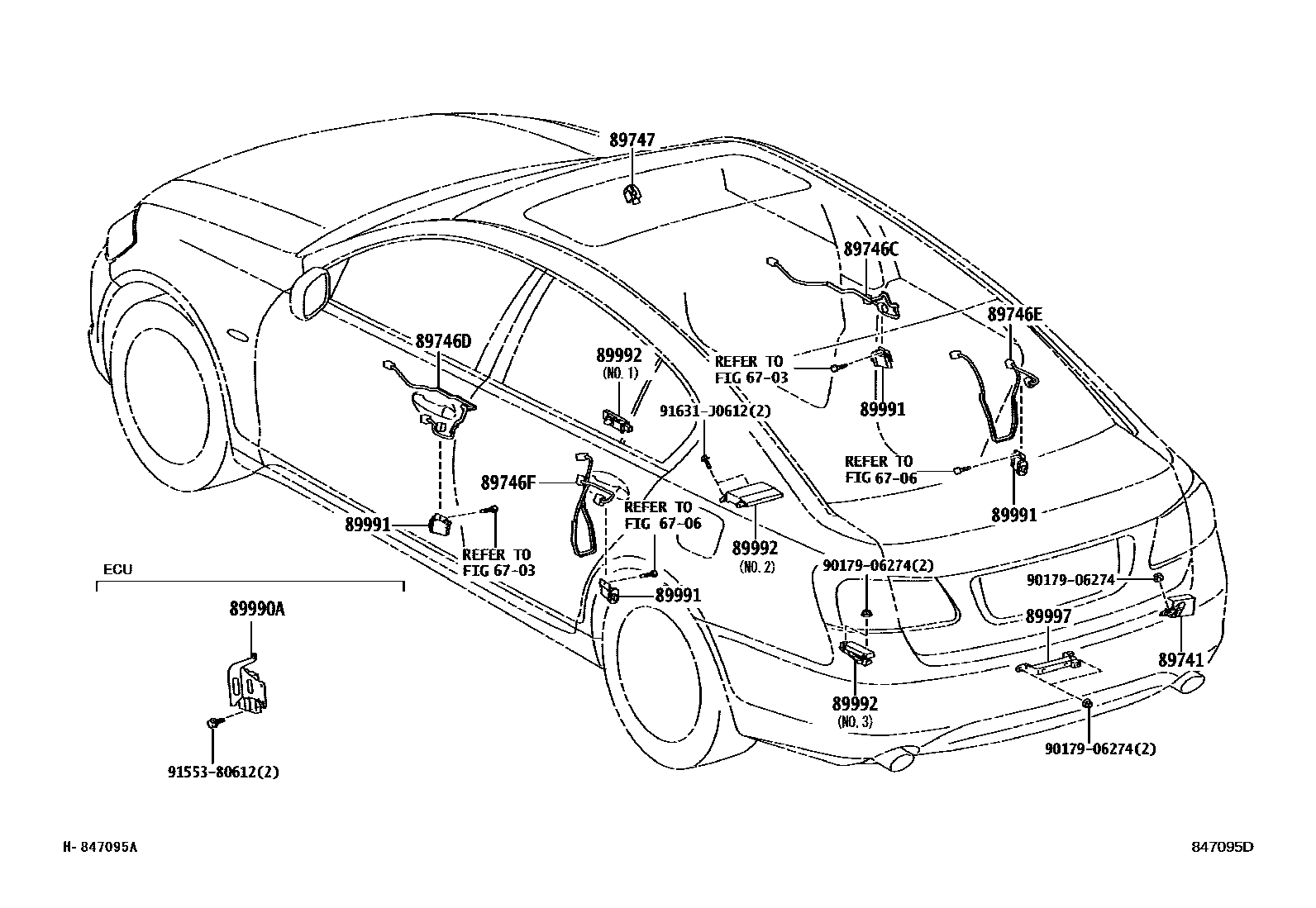

WIRELESS DOOR LOCK

6703FRONT DOOR LOCK & HANDLE

→ Go to FIG 67-03

6706REAR DOOR LOCK & HANDLE

→ Go to FIG 67-06

89741RECEIVER, DOOR CONTROL

main89740-30080iGRS19#,UZS190200508-200511

main89740-30081iGRS19#,UZS190200512-200610

main89740-30082iGRS19#,UZS190200611-200709

89746CHARNESS, ELECTRICAL KEY WIRE, NO.1

main89746-30050iGRS19#,UZS190200508-200709

89746DHARNESS, ELECTRICAL KEY WIRE, NO.2

main89746-30060iGRS19#,UZS190200508-200709

89746EHARNESS, ELECTRICAL KEY WIRE, NO.3

main89746-30070iGRS19#,URS190200709

89746FHARNESS, ELECTRICAL KEY WIRE, NO.4

main89746-30080iGRS19#,URS190200709

89747BUZZER, WIRELESS DOOR LOCK

main89747-48020iGRS19#,UZS190200508-200609

main89747-52010iGRS19#,URS190200709

89990ACOMPUTER ASSY, SMART KEY

main89990-30070iGRS19#,UZS190200508-200601

main89990-30090iGRS19#,URS190200809-200909

main89990-30120iGRS19#,UZS190200602-200607

main89990-30121iGRS19#,UZS190200607-200611

main89990-30122iGRS19#,UZS190200612-200709

main89990-30123iGRS19#,URS190200709-200809

main89990-30170iGRS19#,URS190200909-201104

main89990-30171iGRS19#,URS190201105-201112

89991OSCILLATOR, DOOR ELECTRICAL KEY

main89991-30040×2iGRS19#,URS190200709-201112

main89991-30050×2iGRS19#,UZS190200508-200709

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main89992-30080iGRS19#,URS190200909

main89992-30090iGRS19#,UZS190200508-200709

main89992-30100iGRS19#,UZS190200508-200709

main89992-30110iGRS19#,URS190200709

89997ANTENNA, ELECTRICAL KEY

main89997-41010iGRS19#,UZS190200508-200709

9017906274

main90179-06274

9155380612

main91553-80612

91631J0612

main91631-J0612

15 parts on this diagram · 1 diagram in section
