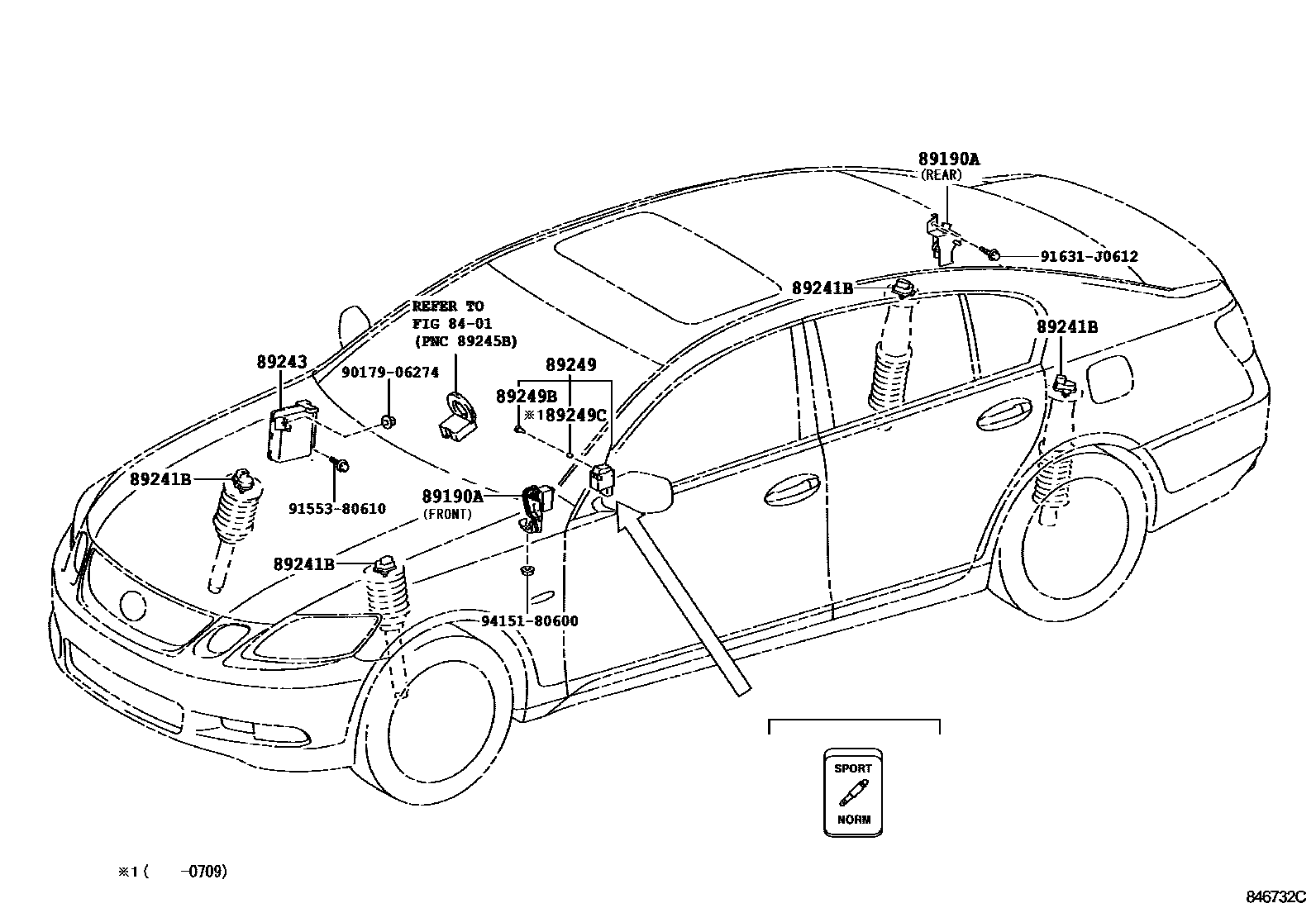

ELECTRONIC MODULATED SUSPENSION

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89190ASENSOR ASSY, ACCELERATION

main89190-30020iUZS190200508-200709

main89190-30021iGRS19#; GRS19#,URS190201108-201111

main89190-30030iUZS190200508-200709

89241BACTUATOR, ABSORBER CONTROL

main89241-30040×4iUZS190200508-200709

main89241-30041×4iGRS19#; GRS19#,URS190201105-201112

89243COMPUTER, ABSORBER CONTROL

main89243-30130supersedes 89243-30090iUZS190200508-200607

main89243-30131supersedes 89243-30091iUZS190200607-200709

main89243-30132supersedes 89243-30092iURS190200709

main89243-30180iGRS19#200709

89249SWITCH, ABSORBER CONTROL

main89249-30060iUZS190200508-200709

main89249-30070iGRS19#; GRS19#,URS190200709-201112

89249BBULB, ABSORBER CONTROL SWITCH

main84999-10820iUZS190200508-200709

main90010-01059iGRS19#,URS190200709

89249CCAP BULB, ABSORBER CONTROL SWITCH

main84998-10670iUZS190200508-200709

9017906274

main90179-06274

9155380610

main91553-80610

91631J0612

main91631-J0612

9415180600

main94151-80600

11 parts on this diagram · 1 diagram in section
