Toyota LEXUS GS460/430/350 — ELECTRONIC FUEL INJECTION SYSTEM

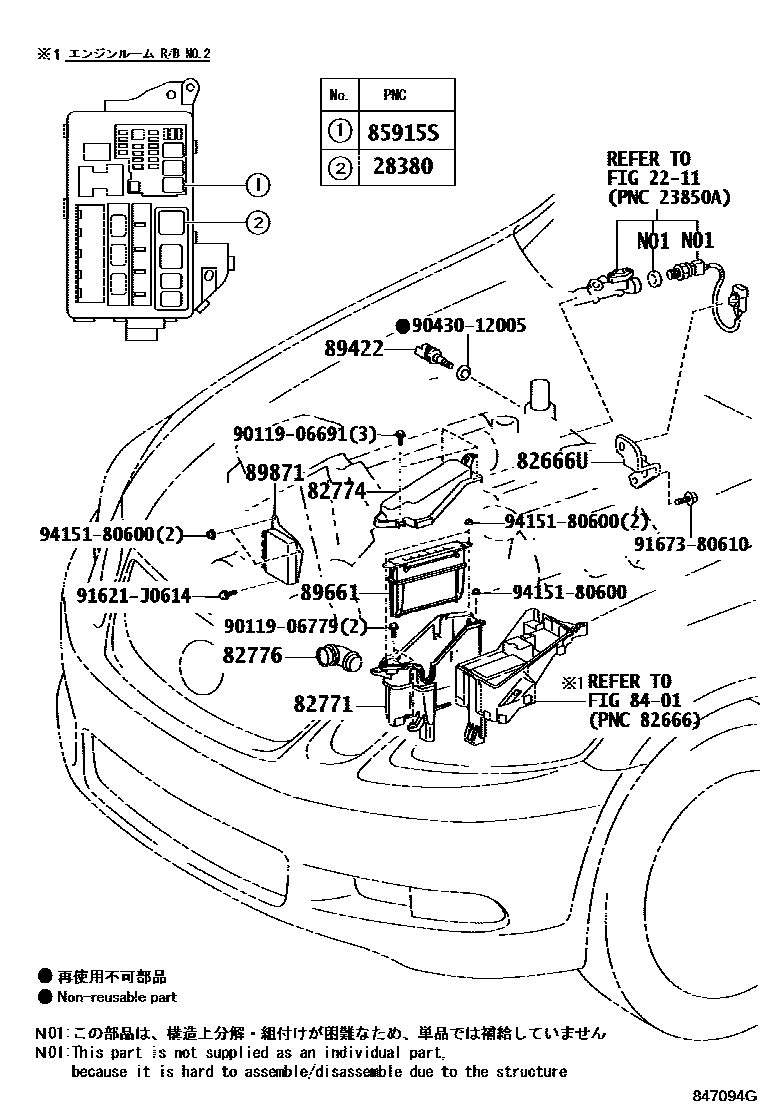

Parts diagram

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

28380RELAY ASSY, FUEL PUMP

82666UHOLDER, CONNECTOR

82771BOX, ENGINE ROOM ECU

82774COVER, ENGINE ROOM ECU

82776DUCT, ENGINE ROOM ECU OUTLET

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

89661COMPUTER, ENGINE CONTROL

89871DRIVER, INJECTOR

9011906691

9011906779

9043012005

91621J0614

9167380610

9415180600

17 parts on this diagram · 3 diagrams in section

ELECTRONIC FUEL INJECTION SYSTEM for Toyota LEXUS GS460/430/350

This section contains 28 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota LEXUS GS460/430/350. Key components include: FUEL INJECTION SYSTEM, RELAY ASSY, FUEL PUMP, HOLDER, CONNECTOR, BOX, ENGINE ROOM ECU, COVER, ENGINE ROOM ECU.
